Devo 12s 3in1 / 4in1 RF module neat installation.

For CC2500, please also read this thread:
www.deviationtx.com/forum/builds/5569-xk...-devo-7e-and-devo-10

get the 4in1 module from the taobao supplier. Will install in my 7e tomorrow.

i take it that's the version modified for deviation? do you have the link to the taobao page?

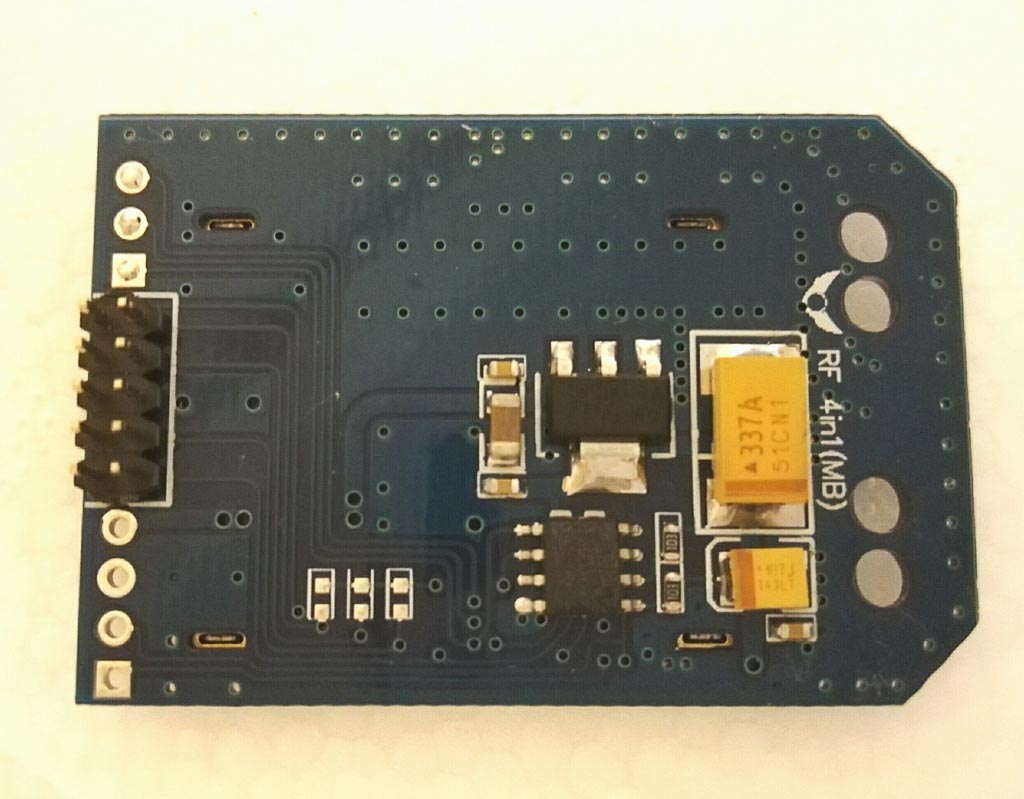

New 4in1 for DEVO TX looks cool, dose TaoBao start to sell this new module?

Who can help? Installation multi rf 3in1(AP) at DEVO 6s.

I'm looking for the pin 16 (CS_2401) on the Board of the Devo 6s.

Dieter

I have compiled the pin assignments for the Devo processors here . This document also includes a drawing of the processor so you can identify the physical pin.

get the 4in1 module from the taobao supplier.

How long was shipping and could you please link the taobao page ?
I can only find the 3in1 module there, not 4in1.

My 7e is in transit, i need to order a module fast

there is no link for the 4in1. I asked the seller directly.

it took him 3 days to make the module and shipping was only 2 days within China.

Hi cmpang, is the new 4-1 module slot compatible with cyrf6936.

There is more info.

Dieter

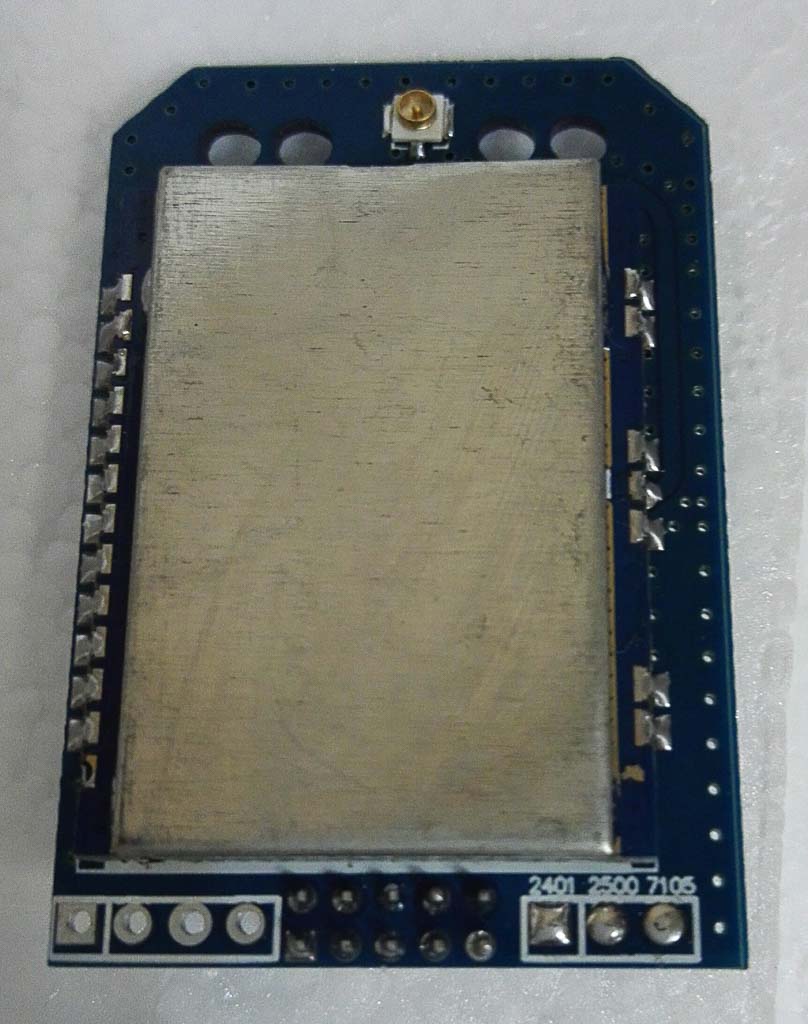

i see that the 10 pin plug looks to be direct plug into D10. In addition, there are three points to be connected as chip select for other protocols

That would be almost plug & play. Is there a pin assignment. Where can I buy it?

Dieter

if anyone is looking for a 3in1 module i have one for sale, i'm only looking to get back i paid for it which is $26 shipped, if you want tracking the price will be a little more (as royal mail are greedy buggers lol) but that depends where in the world you are. shoot me a pm if your interested and we can work out the details. to check my credentials you can check my feedback on rcgroups (it's old now like as i've been out of the hobby a while) username Happy|Harry or on ebay happy-harry-motorsport

Whats the range with the 3in1 module?
Is it better to go for the 3in1 or for the 4in1 with a white Devo 10?

I ordered a 3in1 a few days ago at Banggood. It now says : backorder - " Expected Shipping Date:2016-05-28 "
This plus the unknown problems of those new modules, I wonder if I should cancel and go with individual modules. . . ?

could you help me confirm those are the right ones :
nRF24L01
A7105

it depends whether you need telemetry or not. If not (as I am) - 3-in-1 is a simple good option for devo10. If yes.... hm... then it depends, then you need to read this thread and think...

for a devo 10 I'd use the 4in1, especially the upcoming deviation modified version. as to using the 3in1 or separate modules well it comes down to the fact that the a7105 and nrf24l01 on the 3in1 have no lna access, but you will have less antennae. so you pays your money and you makes your choice lol

HappyHarry wrote: if anyone is looking for a 3in1 module i have one for sale, i'm only looking to get back i paid for it which is $26 shipped, if you want tracking the price will be a little more (as royal mail are greedy buggers lol) but that depends where in the world you are. shoot me a pm if your interested and we can work out the details. to check my credentials you can check my feedback on rcgroups (it's old now like as i've been out of the hobby a while) username Happy|Harry or on ebay happy-harry-motorsport

Is it recommended for the Devo 7e? What about antenna, in that case?
I could be interested, if no technical objections.

sorry bud it's already sold. banggood say they'll have stock in about a weeks time though

HappyHarry wrote: for a devo 10 I'd use the 4in1, especially the upcoming deviation modified version. as to using the 3in1 or separate modules well it comes down to the fact that the a7105 and nrf24l01 on the 3in1 have no lna access, but you will have less antennae. so you pays your money and you makes your choice lol

What is the function of PE1 and PE2 on the 4 in 1 module? Would deviation need new code and cabling to control those?

PE1 and PE2 are used as a binary switch to tell the 4in1 which rf chip to connect to the transmission circuitry, according to bangood they are set as such

so as well as deviation needing to choose which rf chip to use for the chosen protocol it will also need to pull PE1/2 low/high to make sure said rf chip is connected to the transmission circuit. on the d10 these wires will need soldering in, as well as the chip select wires (tms, tck etc) but the rest of the wiring is done by plugging the module in place of the original module
