15 Dec 2016 17:26 #56858 by wasp09
Replied by wasp09 on topic JJRC H20 Hex Quad
The clone works with:

www.saleae.com/downloads

Please Log in or Create an account to join the conversation.

More
24 Dec 2016 01:37 #57185 by Caerus
Replied by Caerus on topic JJRC H20 Hex Quad
For those of us who aren't ashamed to love cute pico's :). JJRC H20 Mini/H30 Mini. Just TX on, bind. The rest after sleep.

www.mediafire.com/file/dsd8l2m4hds5zxe/J....Then.Bind.logicdata

Please Log in or Create an account to join the conversation.

More
24 Dec 2016 01:39 - 24 Dec 2016 01:39 #57186 by goebish
Replied by goebish on topic JJRC H20 Hex Quad
Ok thanks, it's on my (long) list, unfortunately it grows faster than I can implement the protocols ;)
Last edit: 24 Dec 2016 01:39 by goebish.

Please Log in or Create an account to join the conversation.

More
24 Dec 2016 01:46 #57187 by Caerus
Replied by Caerus on topic JJRC H20 Hex Quad
No problem mate. I get it. I'm still waiting on my Chaoli 413's anyway ;)

Please Log in or Create an account to join the conversation.

More
24 Dec 2016 02:00 - 24 Dec 2016 03:28 #57188 by goebish
Replied by goebish on topic JJRC H20 Hex Quad
I should be able to add it quickly tho, I had a look at your capture, it's pretty similar to the H8-3D / H20 protocol, I suppose it's only missing 1 or 2 flags to work.

edit: it's using a different tx id / rf channel mapping than the H8-3D protocol actually, I'm even surprised that it binds with the current protocol ... please make the captures with the H30 transmitter so I've another set ...
Last edit: 24 Dec 2016 03:28 by goebish.

Please Log in or Create an account to join the conversation.

More
25 Dec 2016 00:45 #57219 by Caerus
Replied by Caerus on topic JJRC H20 Hex Quad
Ok. Well, Christmas already here in Oz, but I'll get that up today. Confirmed both bind to the each others TX's. Had em both bind and flying at the same time. It ended in tears :).

Please Log in or Create an account to join the conversation.

More
25 Dec 2016 14:43 #57226 by Caerus
Replied by Caerus on topic JJRC H20 Hex Quad
Here's 3 capture files. The first is the same as yesterdays, just titled specifically. The next 2 are with the other controller (H20 Mini).

www.dropbox.com/s/vrkonzu2kjf6uk4/JJRC.H....Mini.logicdata?dl=0
www.dropbox.com/s/rtoxwfra43uy4o3/JJRC.H....Mini.logicdata?dl=0
www.dropbox.com/s/ig3vfr5m44wmx43/JJRC.H....Mini.logicdata?dl=0

I captured the binding process of both the H20 & H30 Mini using the H20 Mini controller, to give you a constant/comparison. Looked the same to me, but I wouldn't know how to see subtle changes. Hope everyone had a good Christmas.

Please Log in or Create an account to join the conversation.

More
29 Dec 2016 22:02 #57342 by Caerus
Replied by Caerus on topic JJRC H20 Hex Quad
It just occurred to me that the first capture I took was the H30 Mini. Hence your surprise? While taking them I had it in my head that the hex had the bigger number (H30) for some reason. No need to respond, I know you've got your hands full. I'll wait until you've have time. Just wanted to clarify.

Please Log in or Create an account to join the conversation.

More
19 Jan 2017 23:21 #58210 by goebish
Replied by goebish on topic JJRC H20 Hex Quad
I'm about to start working on the H20H protocol, can anyone provide a dump from another stock Tx please ?
If I've only 1 that won't be possible to control several H20H with deviated transmitters in the same area without interferences ...

Please Log in or Create an account to join the conversation.

More
20 Jan 2017 11:10 - 20 Jan 2017 11:11 #58227 by eirikso
Replied by eirikso on topic JJRC H20 Hex Quad
I have the H20H. And got one of the logic analysers I ordered here the other day. The problem is that it is not the logic analyser that you recommended here (I am still waiting for that one from eBay). But I might be able to help anyway.

The analyser that I have got is this one: www.banggood.com/LHT00SU1-Virtual-Oscill...5.html?rmmds=myorder

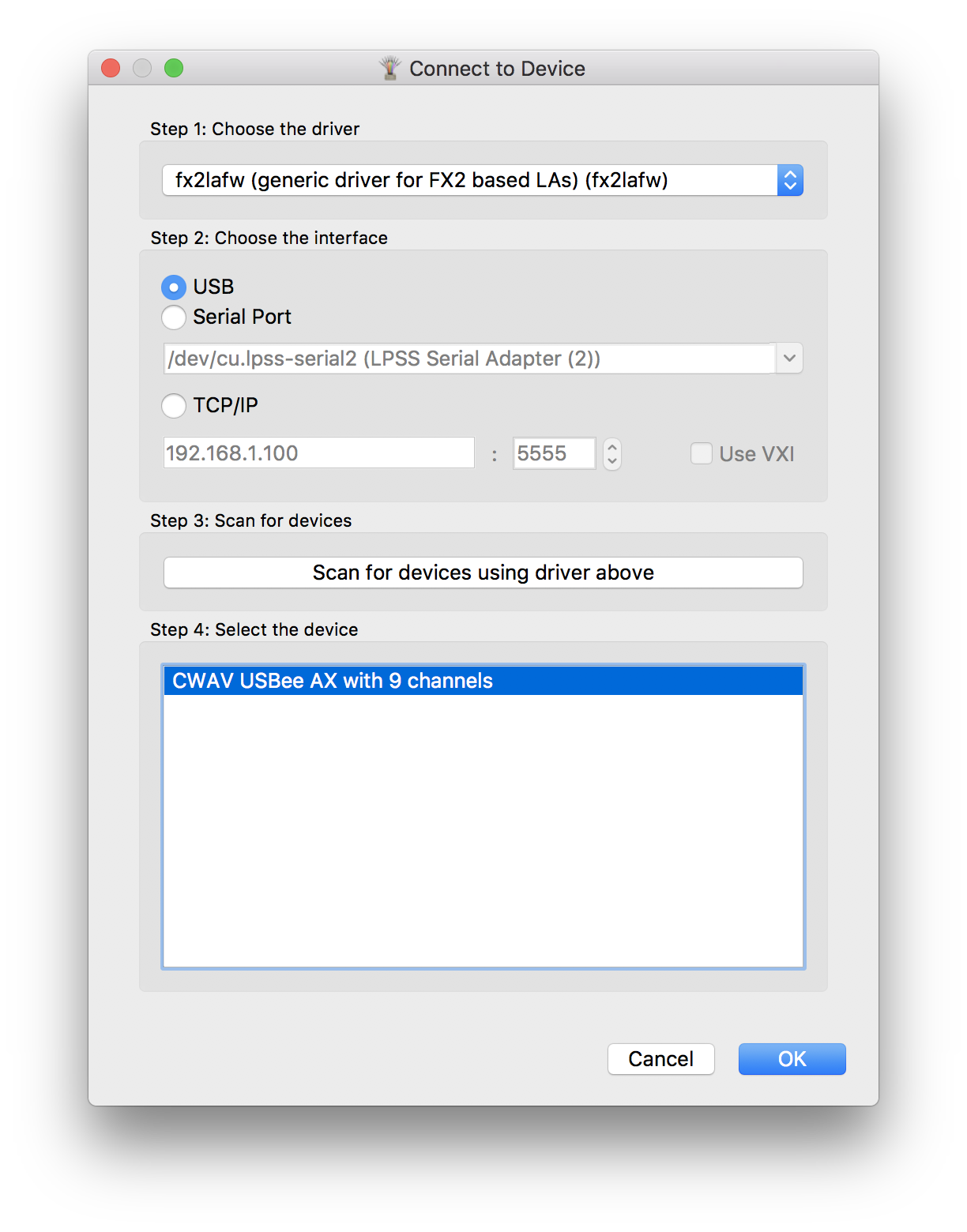

I'm using a Mac so I figured Sigrok would be a good place to start. I have installed PulseView. And my device shows up under USB when I choose fx2lafw (generic driver for FX2 based LAs). It shows up as "CWAV USBee AX with 9 channels".

But my problem is that when I hit OK it says "Failed to Select Device".

Would you recommend some other software? Or do you have a bit of guidance on Sigrok?
Attachments:
Last edit: 20 Jan 2017 11:11 by eirikso.

Please Log in or Create an account to join the conversation.

More
20 Jan 2017 12:07 #58228 by Caerus
Replied by Caerus on topic JJRC H20 Hex Quad

goebish wrote: I'm about to start working on the H20H protocol, can anyone provide a dump from another stock Tx please ?
If I've only 1 that won't be possible to control several H20H with deviated transmitters in the same area without interferences ...


I got 2 on the way goebish. Still about a week or so before they'll be in my hands, but I'll keep tabs here. If you still need them, happy to oblige.

Please Log in or Create an account to join the conversation.

More
20 Jan 2017 13:01 - 20 Jan 2017 13:15 #58230 by goebish
Replied by goebish on topic JJRC H20 Hex Quad
Ok, meanwhile I can start to implement the protocol with a single ID.
Last edit: 20 Jan 2017 13:15 by goebish.

Please Log in or Create an account to join the conversation.

More
20 Jan 2017 13:08 - 20 Jan 2017 13:16 #58231 by goebish
Replied by goebish on topic JJRC H20 Hex Quad
@eirikso, sorry but I've no idea, I've been using Sigrok (PulseView) with a Saleae logic 8 clone only, and I haven't touched a Mac for years ;)
Last edit: 20 Jan 2017 13:16 by goebish.

Please Log in or Create an account to join the conversation.

More
20 Jan 2017 15:43 - 20 Jan 2017 15:43 #58244 by wasp09
Replied by wasp09 on topic JJRC H20 Hex Quad
I am current out of town (not having my devo/H20H with me). I won't be able to test the build until end of Feb.

Thanks for the work anyway.
Last edit: 20 Jan 2017 15:43 by wasp09.

Please Log in or Create an account to join the conversation.

More
20 Jan 2017 23:08 #58255 by eirikso
Replied by eirikso on topic JJRC H20 Hex Quad
I managed to get my LA working with sigrok on mac.

But I am completely new to capturing. Anyone care to post an image of the H20H remote with details on where I need to connect the LA?

Please Log in or Create an account to join the conversation.

More
20 Jan 2017 23:10 #58256 by goebish
Replied by goebish on topic JJRC H20 Hex Quad
Watch the video in this thread:
www.deviationtx.com/forum/protocol-devel...95-spi-capture-guide

Please Log in or Create an account to join the conversation.

More
20 Jan 2017 23:52 - 20 Jan 2017 23:54 #58257 by wasp09
Replied by wasp09 on topic JJRC H20H ??
Eirikso,

Please see pinout of RF chip of H20H TX below:

goebish wrote: That's a XN297LBW, it's using 3 wire SPI.

File Attachment:

(need CSN, SCK & DATA, Vss = ground)

Last edit: 20 Jan 2017 23:54 by wasp09.

Please Log in or Create an account to join the conversation.

More
20 Jan 2017 23:57 - 20 Jan 2017 23:57 #58258 by goebish
Replied by goebish on topic JJRC H20H ??
yup, I need csn, sck and data (and also connect gnd to the analyzer, of course ...)
Last edit: 20 Jan 2017 23:57 by goebish.

Please Log in or Create an account to join the conversation.

More
21 Jan 2017 00:04 #58259 by goebish
Replied by goebish on topic JJRC H20H ??
Should look like that:
(that's not a H20H Tx, but that should give you an idea)
File Attachment:

Please Log in or Create an account to join the conversation.

More
21 Jan 2017 00:57 - 21 Jan 2017 00:59 #58262 by eirikso
Replied by eirikso on topic JJRC H20 Hex Quad
Thank you both. So, this is my first attempt for a capture of one of these remotes. Probably completely useless. I used 8 MHz. And saved ".sr"-files from PulseView:
www.dropbox.com/sh/zfb04b43u0uwvwl/AADkU...vwd2h-dH76kDqna?dl=0

Edit:
D0 = CSN
D1 = SCK
D2 = DATA

Let me know if it works. And if not: any hints on what I have done wrong?
Last edit: 21 Jan 2017 00:59 by eirikso.
