10 May 2013 14:02 #9798 by asafbarhadas
Devo 10 Found a resistor burned was created by asafbarhadas
Hi guys

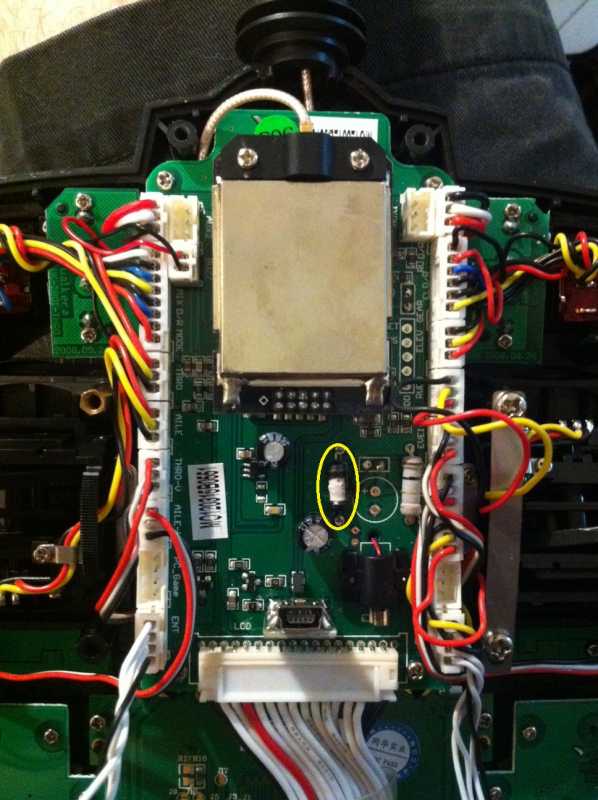

I probably charged my Devo 10 wrong, now it will only turn on when i'll take the battery out and put it back again when the switch is on. So i opened the back of the TX and saw a burned resistor... :whistle: as you can see the resistor's colors are gone...
Can someone tell me the colors of that resistor (or ohms)?

Thanks!


Attachments:

Please Log in or Create an account to join the conversation.

More
11 May 2013 04:16 - 11 May 2013 04:39 #9823 by RoJAck
Replied by RoJAck on topic Devo 10 Found a resistor burned
Found a couple of photos online:

i.imgur.com/8W6q5RQ.jpg

photo.5imx.com/up/forum/201301/25/104732mp704dz1e4177pwi.jpg

If it's green-black-black, that would be 50 ohms. One photo shows a number 52 next to some Chinese words. The silver band at the end is a 'tolerance' and in this case it's 10%, which is pretty typical. (Meaning the actual resistance value could be anywhere from 45 to 55 ohms. (+ or - 10% of 50 ohms.))

The physical size of the resistor typically determines the wattage. From the pics, I'm guessing it's a 1/2 Watt, maybe 1 Watt. You can go bigger wattage, but not smaller if you can't find the part. So don't buy a 1/4 watt, for example.

I hate cracking open my case. If no one else gets to it, maybe I'll open it up and take a look at mine.

Oh, and here's an interesting thread on RC Groups about burned parts from using a 3-cell LiPo. They mention a couple of other parts that might need to be replaced:

www.rcgroups.com/forums/showthread.php?t=1611471&page=138
Last edit: 11 May 2013 04:39 by RoJAck.

Please Log in or Create an account to join the conversation.

More
11 May 2013 15:09 #9845 by asafbarhadas
Replied by asafbarhadas on topic Devo 10 Found a resistor burned
Thanks!!!!!
I hope the resistor is the only damage...
I'll replace it and let you know if it worked

Please Log in or Create an account to join the conversation.

More
11 May 2013 17:53 #9865 by RoJAck
Replied by RoJAck on topic Devo 10 Found a resistor burned
This seems to be the word for "Ohm": 欧姆

The first character:

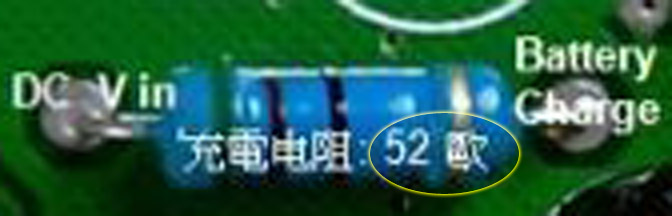

Kind of looks like the photo caption:


I think it's a good bet that a 50 Ohm 1/2 Watt should be the part.
