06 Mar 2014 20:42 #21303 by mikerc
transceiver for flysky was created by mikerc
i fried my th9x radio can i use the transceiver out of my flysky th9x radio to install in the devo 8s i wanna use the extra receivers i have iv all ready installed the deviation 4.0.1 firmware

Please Log in or Create an account to join the conversation.

More
06 Mar 2014 20:48 #21304 by PhracturedBlue
Replied by PhracturedBlue on topic transceiver for flysky
if you take it apart and take pictures I can tell you, but generally I don't think so. Instead, go buy the recommended module from E-Bay
www.deviationtx.com/repository/Documenta...duleInstallation.pdf

Please Log in or Create an account to join the conversation.

More
06 Mar 2014 22:26 #21308 by mikerc
Replied by mikerc on topic transceiver for flysky

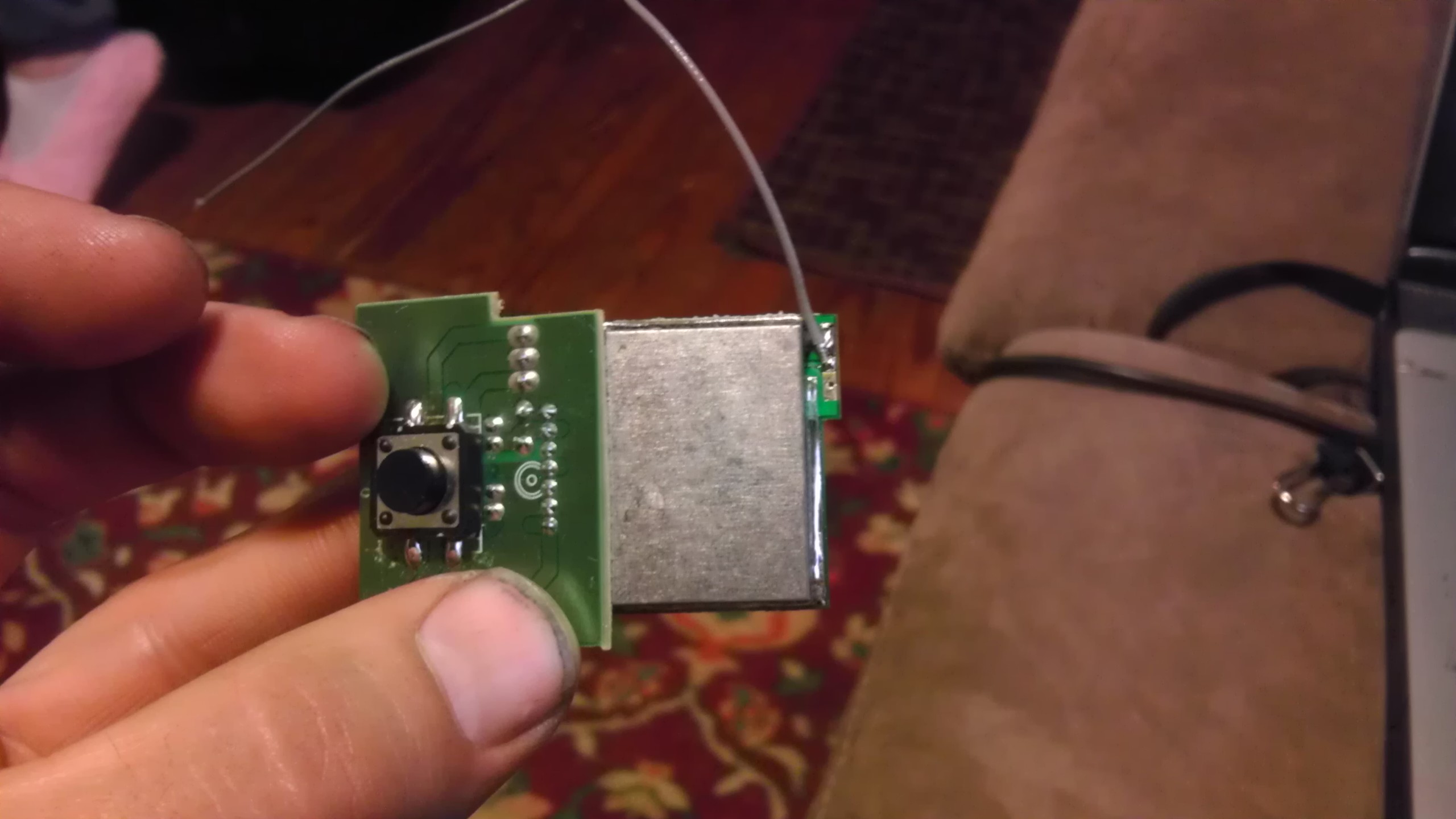

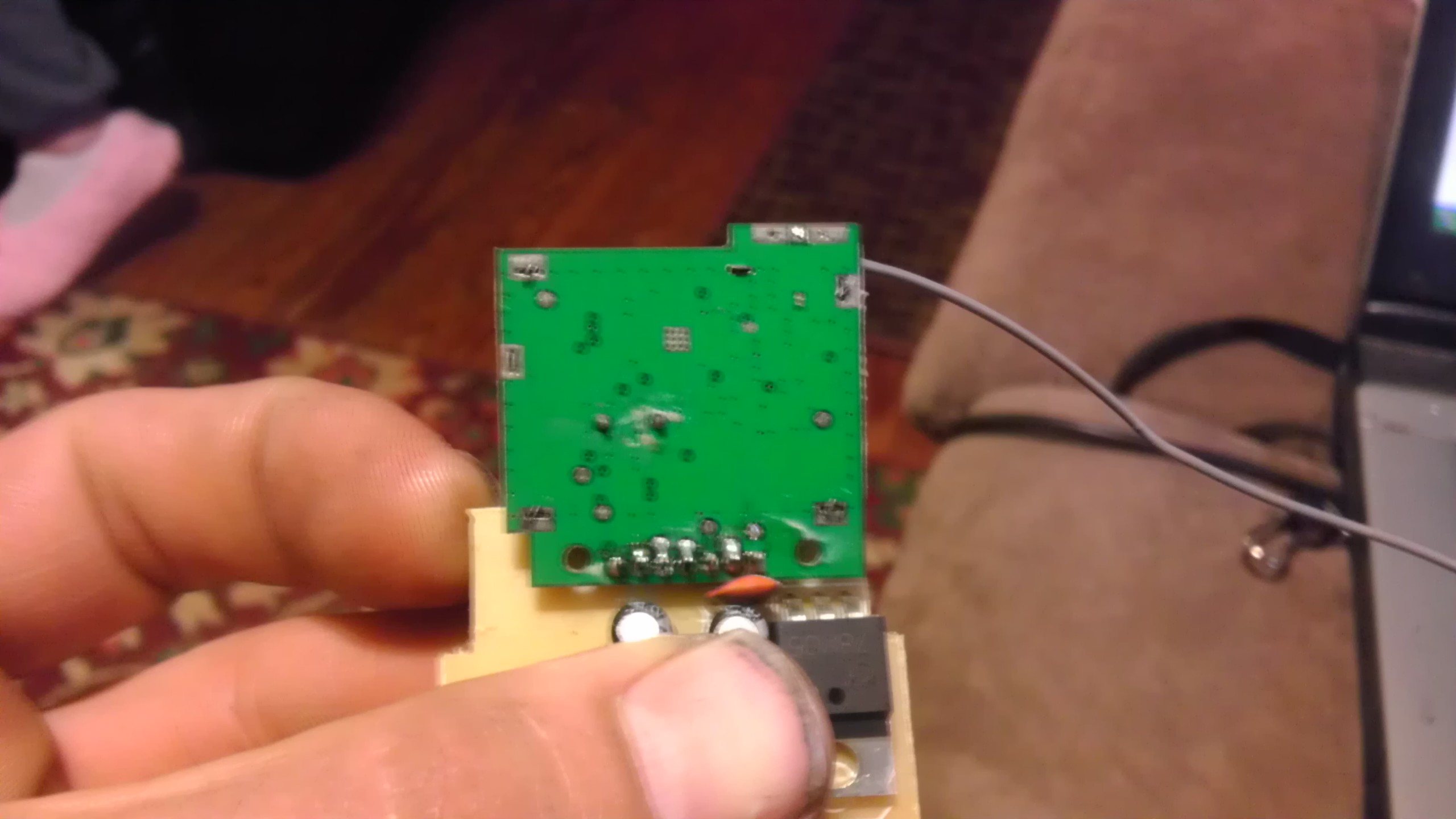

here are 2 pics




Attachments:

Please Log in or Create an account to join the conversation.

More
06 Mar 2014 22:27 #21309 by mikerc
Replied by mikerc on topic transceiver for flysky
i would half to remove the bind button board if i could use it if not i will buy one

Please Log in or Create an account to join the conversation.

More
06 Mar 2014 23:03 #21311 by PhracturedBlue
Replied by PhracturedBlue on topic transceiver for flysky
those 7 pins that are tightly packed together are very likely to be
SCK
CSN
MISO
3.3V
GND
GIO1
GIO2

So if you unsoldered that module, you could probably use it. The problem is that unless you have a logic analyzer, I have no idea which order they are in. It is also quite possible that I'm wrong and there is a uC under the shield.

Please Log in or Create an account to join the conversation.

More
06 Mar 2014 23:11 #21312 by mikerc
Replied by mikerc on topic transceiver for flysky
ok when i unsolder the board ill look to see if its marked thanks for your help and soon as i find out ill let you know thanks again

Please Log in or Create an account to join the conversation.

More
06 Mar 2014 23:28 #21314 by mikerc
Replied by mikerc on topic transceiver for flysky
it un soldered pritty quick their is a gnd,+5v,gio,sw,scs,sck,ppm

Please Log in or Create an account to join the conversation.

More
07 Mar 2014 00:58 #21316 by PhracturedBlue
Replied by PhracturedBlue on topic transceiver for flysky
If it has 5V, it probably has a uC under the hood. I don't think I would try hooking it up to the Tx, as you could end up with 5V fed back into the Devo, which wouldn't be a good thing. Also having PPM is pretty odd. and gives me pause.


If you want to try it, you could hook 5V to the 5V pin on the CYRF6936 module, GND to GND, SCK to SCK, SCS to SCS/CSN, and SW to MOSI, (as per the module install doc) but I have no idea if it will work, and can't guarantee you won't damage your Tx.

You could also just hook 3.3V to the 5V pin. In that case, there is virtually no chance of damaging the Tx, but it may or may not actually work.

Please Log in or Create an account to join the conversation.

More
07 Mar 2014 01:04 #21317 by mikerc
Replied by mikerc on topic transceiver for flysky
ok thanks alot ill just buy one from ebay seeings that their only 7 bucks thanks again

Please Log in or Create an account to join the conversation.

More
07 Mar 2014 16:05 - 07 Mar 2014 19:40 #21348 by jo-loom
Replied by jo-loom on topic transceiver for flysky

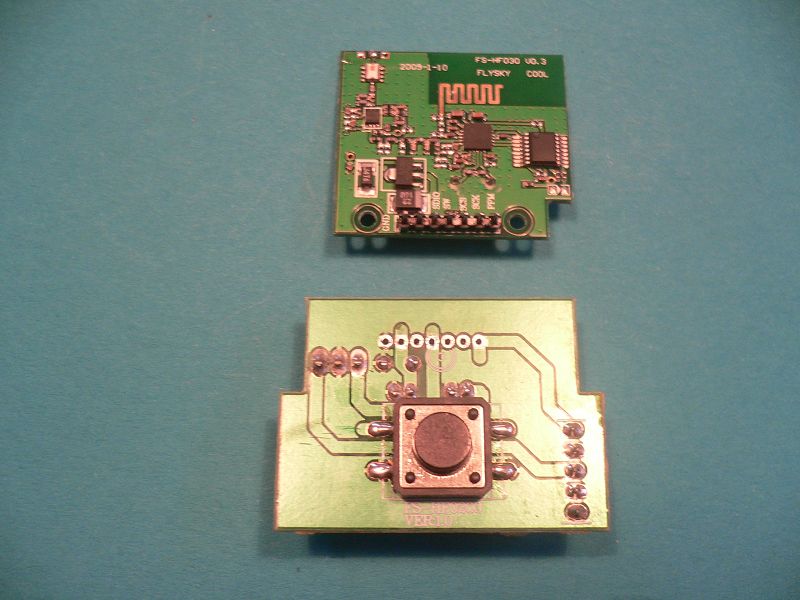

The Flysky RF module contains 2 PCBs.

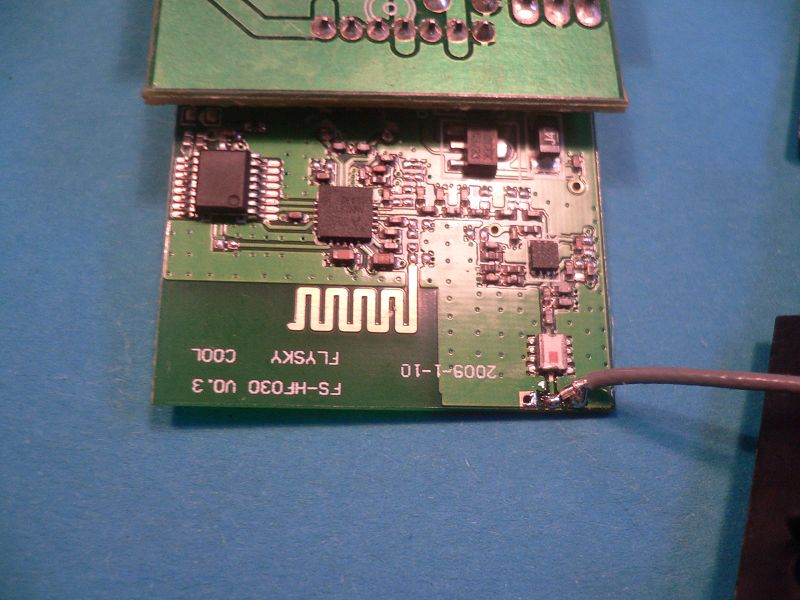

The first one just hosts a +5V voltage regulator and the bind pushbutton. The second one covers the typical RF transceiver application circuit and an 8 bit microcontroller with SPI interface.
The complete modul uses +5V excitation voltage - the second board takes care of the +3.3V supply.

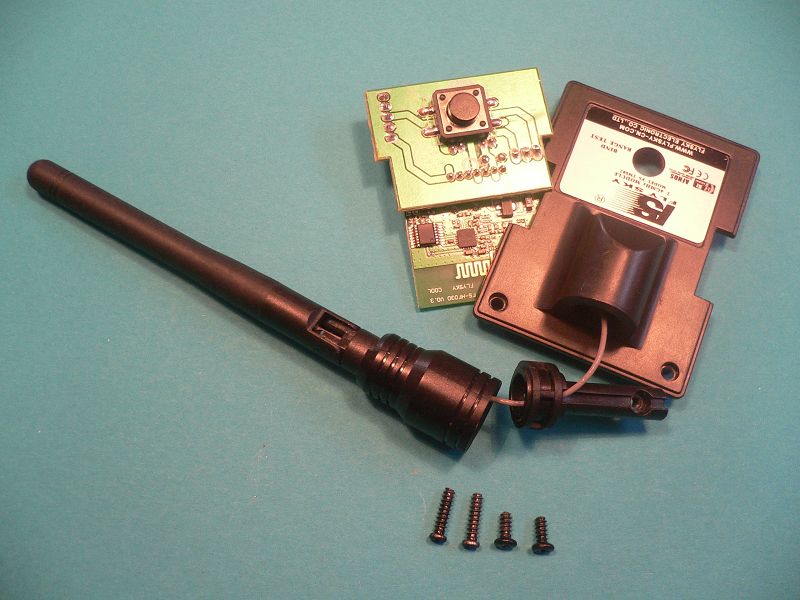

The attached pictures are showing the main components.
I integrated the internal parts in a 40 MHz FUTABA F14 transmitter.
You can find several additional pics and header pinout descriptions under:
www.gimmickry.de/projects/project_21/
(Sorry - the English translation is still missing but the pics are telling everything)

So in my opinion this Flysky RF module is perfectly suited to convert whatever "old fashion" transmitter to 2.4 GHz Flysky compatibility. But due to the integrated microcontroller for PPM signal interpretation it will be inefficient to adapt it for pure RF transceiver use in combination with DEVO transmitters (even thought that it would be technically possible). My recommendation is clearly to spend the few bugs for a small size EBAY module including RF amplifier (with metal shield cover).
Attachments:
Last edit: 07 Mar 2014 19:40 by jo-loom.

Please Log in or Create an account to join the conversation.

More
07 Mar 2014 16:17 #21349 by mikerc
Replied by mikerc on topic transceiver for flysky
ok thanks for the help and your input
