Personalized pictures or icons on Devo 12S

More
16 Apr 2014 17:28 #22473 by lcn
Hello

I would like to personalize the main window on my Devo12S
I've place cursor, model image and telemetry infos i need.

Is it possible to change the switch ICON look and have personalized pictures instead of the ones provided ?

IE : i use a 3 positions switch that sets my multirotor flight mode : GPS / Atti / Failsafe

Can i use upload 3 pictures to use them with that switch ?

It is also possible to place a picture somewhere on the window, as same as model picture does ?

Many thanks,

Please Log in or Create an account to join the conversation.

More
16 Apr 2014 17:51 - 16 Apr 2014 17:56 #22474 by vlad_vy
Replied by vlad_vy on topic Personalized pictures or icons on Devo 12S
Create folder 'mymedia' and place 'toggle3.bmp' file (with same format as Devo8 toggle0.bmp). Also, you can place custom 'config.ini' and 'sound.ini'.
Last edit: 16 Apr 2014 17:56 by vlad_vy.

Please Log in or Create an account to join the conversation.

More
16 Apr 2014 21:44 - 16 Apr 2014 22:20 #22484 by lcn
I've created 'mymedia' folder and added your 'toogle3.bmp' as an example.
What kind of BMP is it, is it 8 bits BMP / 256 colors required by the Devo ?

Can i easily add more BMP files ?
for example : toggle4.bmp and maybe set icons with larger size ?

I would like to display a permanent picture (150x150) on the Devo background, how could i do this ?
Last edit: 16 Apr 2014 22:20 by lcn.

Please Log in or Create an account to join the conversation.

More
20 Apr 2014 08:51 #22594 by fcydjl
Replied by fcydjl on topic Personalized pictures or icons on Devo 12S
Hello,

I have the same configuation, I mean Devo S12 and Wookong M
I try to set a 3 pos switch (Fmode) to select the different mode GPS, manuel, Atti
I spent many time on this subject but unsuccesfully.
Cold yo help me please ?

BR

Please Log in or Create an account to join the conversation.

More
20 Apr 2014 09:46 - 21 Apr 2014 17:52 #22595 by lcn
Hello,

Yes we can try to help you, but where are you stuck exactly ? :)

Are you able to get the Fmode switch changing the Wookong mode to : GPS / Atti / Manual, or this does not work yet ?

If this works fine, i can explain you how to have a personnalized icon depending the switch position.

Please tell us where you are stuck.


--

Does someone know how to insert a personalized image at a defined place in the Devo12S 's background ?

Something like model image ?
Last edit: 21 Apr 2014 17:52 by lcn.

Please Log in or Create an account to join the conversation.

More
21 Apr 2014 08:16 #22626 by fcydjl
Replied by fcydjl on topic Personalized pictures or icons on Devo 12S
Hello,

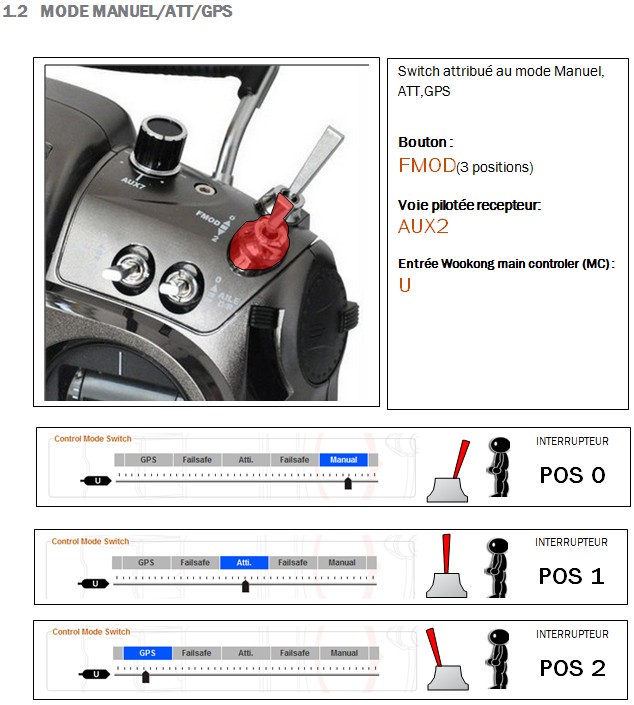

I have joined a picture describing what I would like to have.
I can't center the FMode1 switch to get the Wookong Atti Mode.
Same issue to get the extreme position,me "Manuel" and "GPS" state.
Hope, it will be more clear for you.

Sorry for my basic English :(

Thanks for your help
Attachments:

Please Log in or Create an account to join the conversation.

More
21 Apr 2014 17:48 - 21 Apr 2014 17:51 #22634 by lcn
Ok, i did almost the same with my Nava v2 on 'MIX' switch.

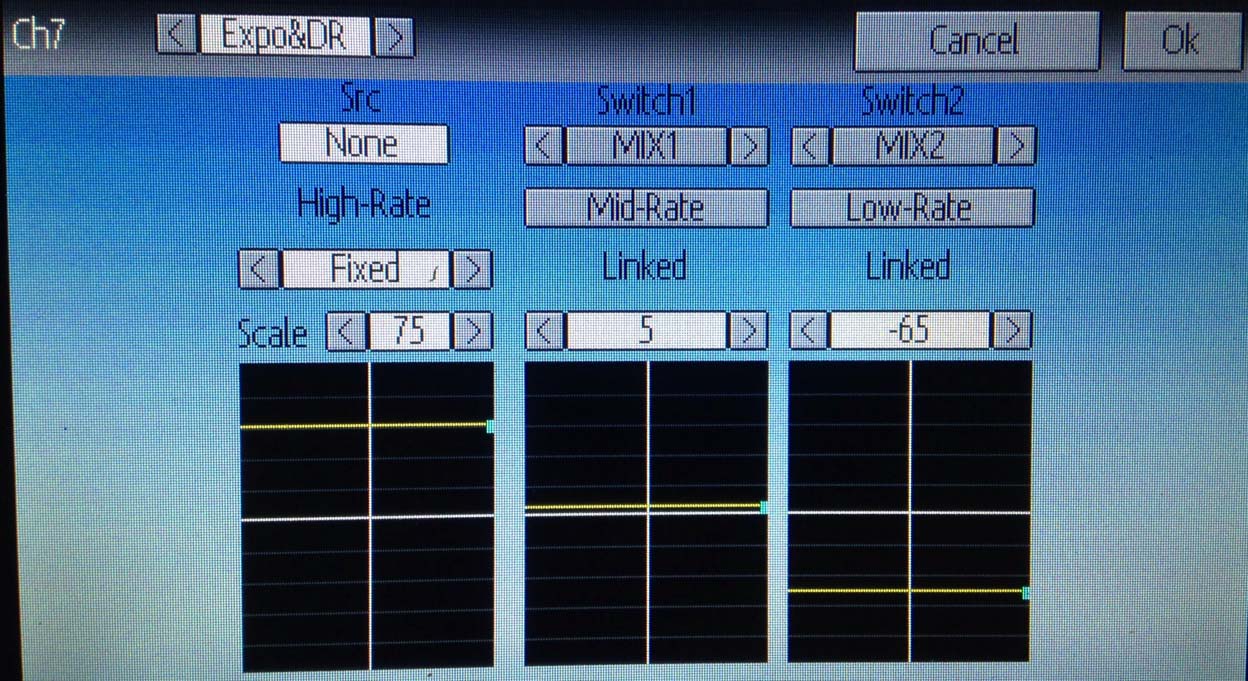

Please look at my configuration on the picture below.
You need to assign 'AUX2' to 3 positions switch 'FMOD'

'AUX2' is normally Channel7 :'Ch7' ( depending on the receiver you use )

Go into the model configuration and enter MIXER page.
Then, on Ch7 right hand side, click on 'NONE' button
Change it to 'Expo&DR' then you need to set the 3 positions of your switch and assign a value to each of them.

For me, i had to set 75 / 5 / -65 in order to have the cursor moved at the proper place in the Naza Assistant.

Maybe you will have to modify a bit these values to have the cursor (U) correctly centered on the middle of each mode you need.

Try and let us know if you got it working.
Cheers from France ;) ( i'm near Lyon )
Attachments:
Last edit: 21 Apr 2014 17:51 by lcn.

Please Log in or Create an account to join the conversation.

More
27 Apr 2014 08:54 #22747 by fcydjl
Replied by fcydjl on topic Personalized pictures or icons on Devo 12S
Thanks a lot for this clear and precise explanations.
I will try those setting.

Un bonjour de Roubaix "d'inch nord" :)

Please Log in or Create an account to join the conversation.
