Configuring Devo RX601 with CC3D and cleanflight

Hi guys,

I have finished building a 200 quad with 1806 motors and 5" props on 3s and very keen to test it.

Having an issue matching the channels from the RX601 to my DEVO 7e.

I have tried working from all the templates in my 7E

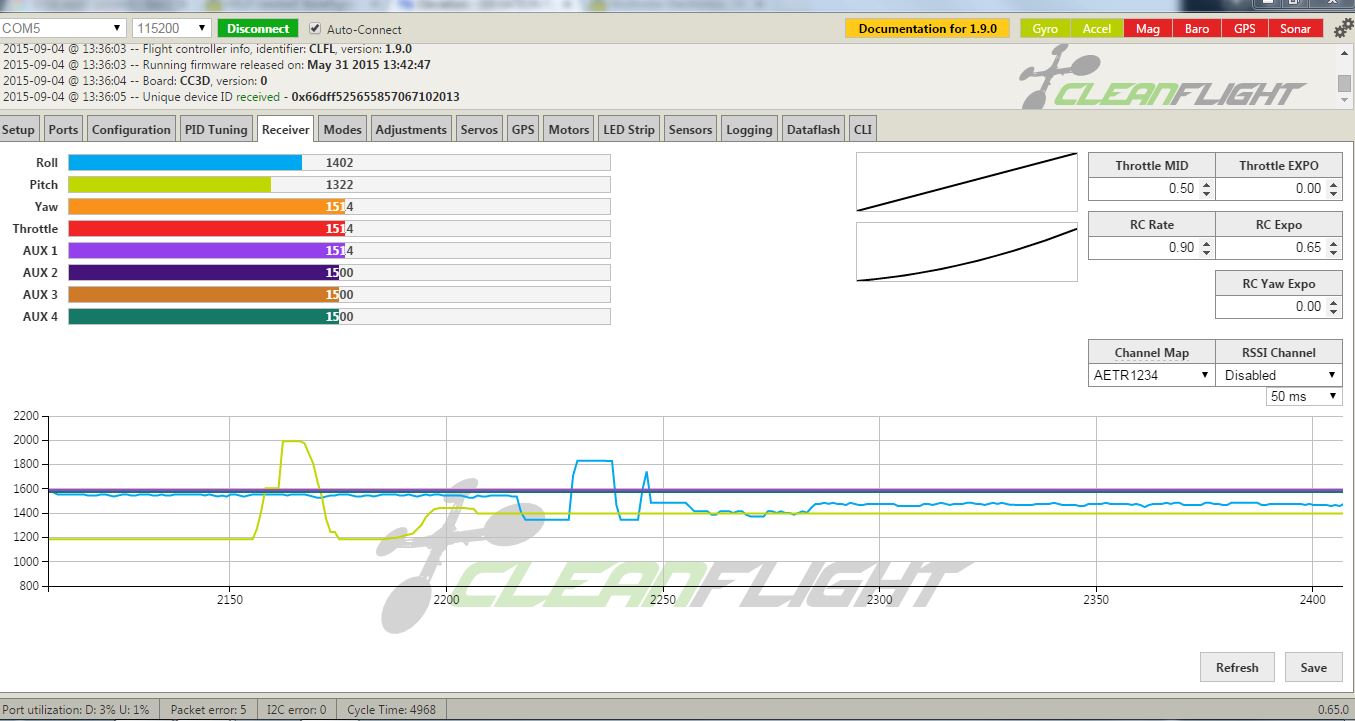

When I am in cleanflight receiver settings, it is showing me that my throttle, aileron, elevator etc. on my receiver aren't matched to the transmitter.

I do get movement when moving the transmitter, but I can't match the throttle movement, to throttle on cleanflight etc. it will show up as pitch or aux1 or whatever depending on the mixer.

Can someone help an inexperienced user get this the right way around?

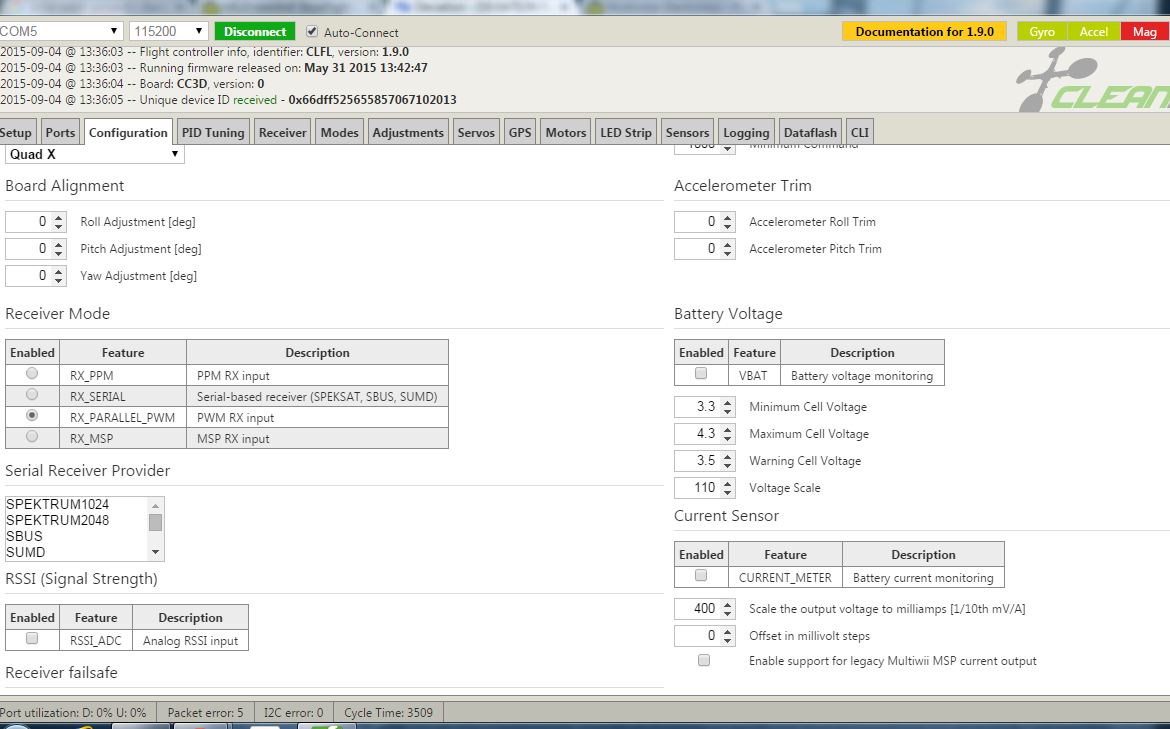

edit: in the 2nd attachment, there is settings for serial receiver provider, maybe this isn't set right? I've tried pretty much all of them

Thanks

Ok I got passed that issue, I just swapped the wires on the receiver around.

The main issue was that the sticks on the transmitter needed calibrating, I may have forgotten to do min and max yaw last calibration by rushing.

I am trying to reach the correct mins and maxs now.

Everything is moving what it should, but it isn't reaching far enough to actually arm by the looks of things.

I read in the cleanflight manual 1500 should be neutral and it should reach 1000 and 2000 so I am going to try and achieve this now and see what happens.

Extend the scale for these channels to both sides on your Devo Mixersetup. If it comes close enough, it will be ok. No way to hit exactly the values.with the 7e. For midrc you will have something like 1497 or 1502........
This should be set in CF for "midrc".

Thanks,

Can get it to arm now.

Testing it with the props off it seems fine.

Ok.
For further informations, this will be the best place to go....
www.rcgroups.com/forums/showthread.php?t=2249574

nice link,


heaps of relevant information.

I am going to start reading now, thanks for the advice again.

Nick
