16 Apr 2016 07:01 #46598 by Seven5555
NEED ADVISE FOR DEVO 7E chip install was created by Seven5555
I need an alternate soldering point for RED 6 to connect to on the main board because the point that is marked RED is bad. Please see attached picture
Attachments:

Please Log in or Create an account to join the conversation.

More
16 Apr 2016 10:07 #46614 by Seven5555
Replied by Seven5555 on topic NEED ADVISE FOR DEVO 7E chip install
Can RED 6 solder to the VDD?

Please Log in or Create an account to join the conversation.

More
16 Apr 2016 11:23 #46622 by TheSFReader
Replied by TheSFReader on topic NEED ADVISE FOR DEVO 7E chip install
Not directly, I don't think so. "red" needs to be to a regulated 5V. If I get it correctly, "VDD" is not regulated.

Please Log in or Create an account to join the conversation.

More
16 Apr 2016 12:00 #46628 by Seven5555
Replied by Seven5555 on topic NEED ADVISE FOR DEVO 7E chip install
thank you for your response, does the RED contact point go through to the other side of the main board? i've not taken it out.

Please Log in or Create an account to join the conversation.

More
16 Apr 2016 13:16 #46632 by silpstream
Replied by silpstream on topic NEED ADVISE FOR DEVO 7E chip install

Seven5555 wrote: I need an alternate soldering point for RED 6 to connect to on the main board because the point that is marked RED is bad. Please see attached picture

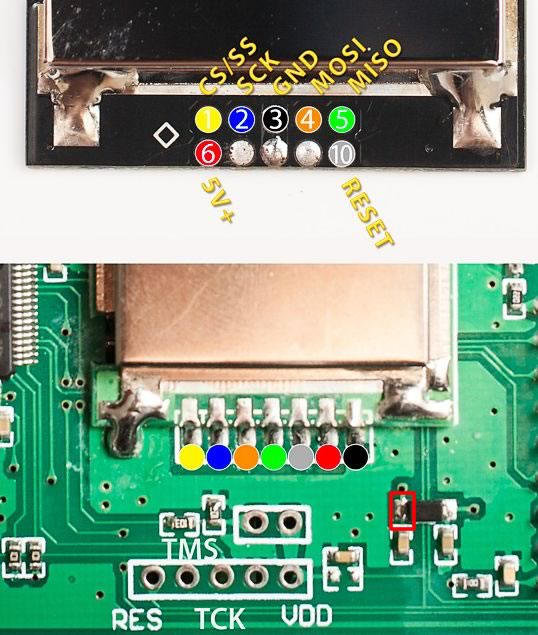

The point that I boxed in red will is connected to RED 6. VDD is actually regulated 3.3v.
Attachments:

Please Log in or Create an account to join the conversation.

More
16 Apr 2016 15:33 #46635 by PhracturedBlue
Replied by PhracturedBlue on topic NEED ADVISE FOR DEVO 7E chip install
Just a side note that the 5V supply is not regulated. There is an LDO on the CYRF board. But VDD is 3.3V and unsuitable to drive the CYRF board, so everything else mentioned above should be ok.

Please Log in or Create an account to join the conversation.

More
17 Apr 2016 01:08 #46675 by Seven5555
Replied by Seven5555 on topic NEED ADVISE FOR DEVO 7E chip install
Now that its soldered to the RED square in slipstream's pic, (thank you very much slipstream) does that change the hardware.ini configuration from A13?

Please Log in or Create an account to join the conversation.

More
17 Apr 2016 03:50 #46677 by silpstream
Replied by silpstream on topic NEED ADVISE FOR DEVO 7E chip install
The point that you soldered was for VBat (specifically +ve battery connection) so it does not affect any configuration setting in hardware.ini.

Please Log in or Create an account to join the conversation.
