Broken Antenna on NRF Module ... quick fix?
- CesiumSalami
- Topic Author
- Offline
Less
More
05 Jan 2017 18:07 - 05 Jan 2017 18:10 #57559
by CesiumSalami

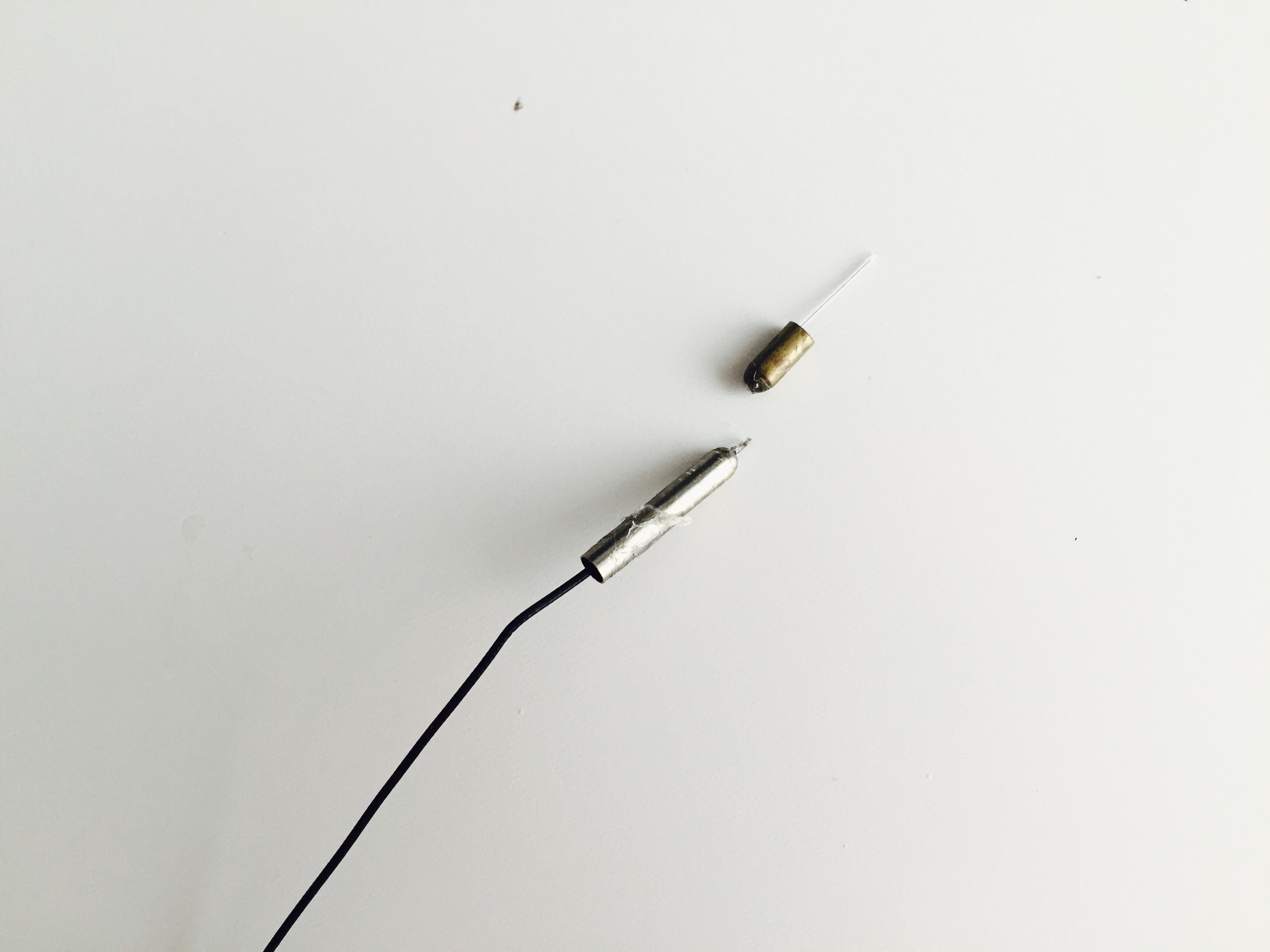

Broken Antenna on NRF Module ... quick fix? was created by CesiumSalami
Hi Guys,
Banggood was kind enough to deliver an NRF module today with a broken antenna. I'm not looking for anything high performance - < 200m around in my backyard (it's a big back yard .
Before you ask i did google this.... there are many numbers "on the web" for antenna length ranging from 26 - 31.25. Pretty sure 26 is too low and 31.25 (while correct in concept) maybe isn't appropriate.
Can I:
Think I'll be left with something that gets reasonable performance with this plan? Any suggestions? Should I just skip the bell on the bottom and on top?
If the top bell is required. Would anyone be able to explain how that's soldered? Is it to the core / signal wire?
Banggood was kind enough to deliver an NRF module today with a broken antenna. I'm not looking for anything high performance - < 200m around in my backyard (it's a big back yard .
Before you ask i did google this.... there are many numbers "on the web" for antenna length ranging from 26 - 31.25. Pretty sure 26 is too low and 31.25 (while correct in concept) maybe isn't appropriate.
Can I:
- chop the top of this off
- remeasure 28mm (??)
- peel off all the grounding wires for that length
- leave the sheath on the now exposed signal wire
- solder the bottom bell back on somwhere below the newly exposed wire - to the grounding wires?
- leave the top bell off
Think I'll be left with something that gets reasonable performance with this plan? Any suggestions? Should I just skip the bell on the bottom and on top?
If the top bell is required. Would anyone be able to explain how that's soldered? Is it to the core / signal wire?
Last edit: 05 Jan 2017 18:10 by CesiumSalami.
Please Log in or Create an account to join the conversation.
- kaligola
- Offline
Less
More
- Posts: 58
10 Jan 2017 09:48 - 10 Jan 2017 09:57 #57786
by kaligola
Replied by kaligola on topic Broken Antenna on NRF Module ... quick fix?
in my opinion would peel 27 , someone say 26 other 31.25mm but last i guess is for receivers put botton bell and leave upper off
Last edit: 10 Jan 2017 09:57 by kaligola.
