help identify a component on Futaba SFHSS reciver

08 Feb 2018 04:02 #67440 by sangyue

help identify a component on Futaba SFHSS reciver was created by sangyue

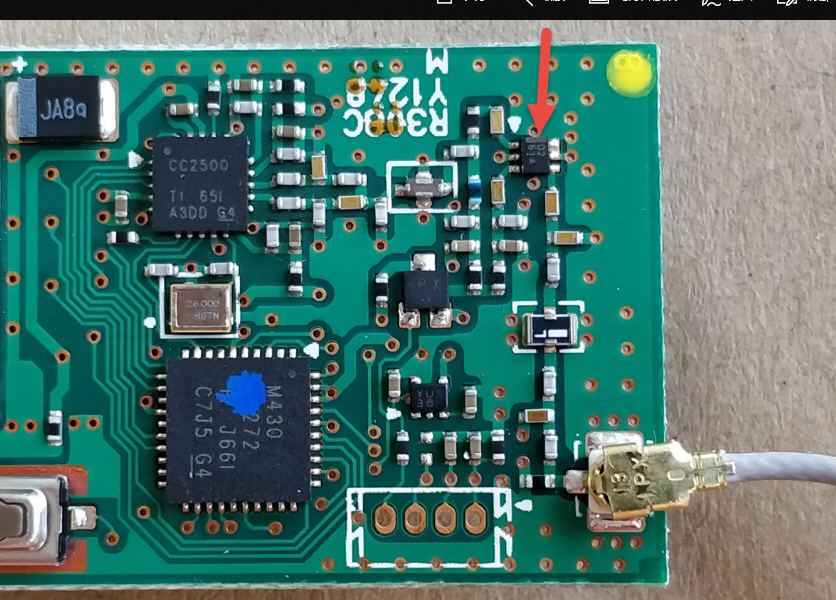

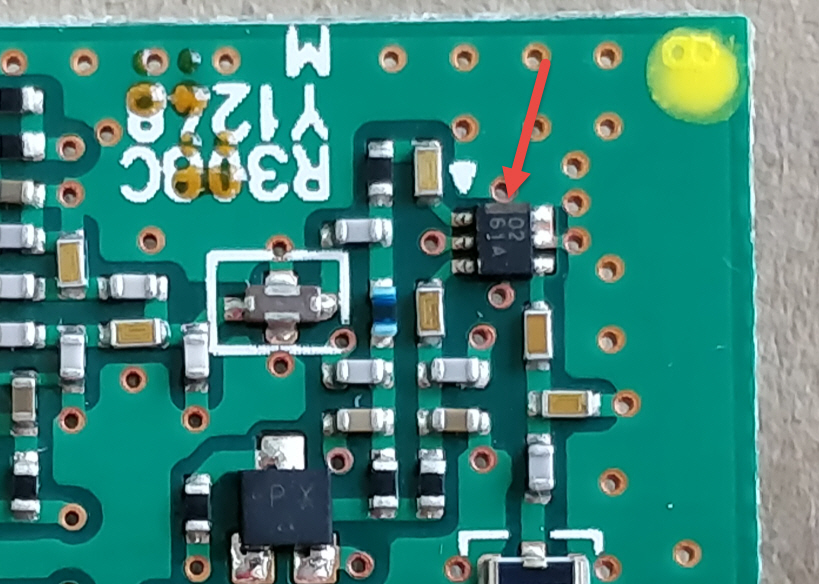

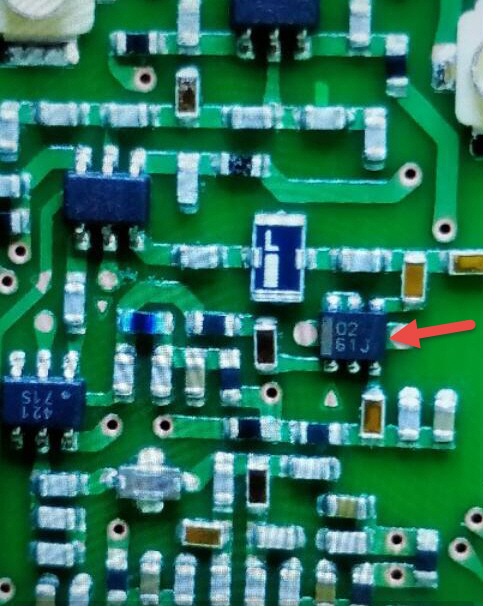

Anybody know this component marked in red in below pictures? Please help!

Please Log in or Create an account to join the conversation.

08 Feb 2018 21:49 - 09 Feb 2018 18:23 #67448 by Kumi

Replied by Kumi on topic help identify a component on Futaba SFHSS reciver

Might be a RDA ES02 RF switch, like in FrSky D4R-II - fishpepper.de/2016/09/07/frsky-d4r-ii-co...s-layout-and-pinout/
but there is no marking description anywhere. And I think the pinout is different - in/out is probably on pin 4. And with one antenna a switch is not necessary.

Or - probably - a Low Noise Amplifier, like described here - rfengfpv.wordpress.com/2017/01/08/futaba...6sb-rf-architecture/

Last edit: 09 Feb 2018 18:23 by Kumi.
