Jumper 4 in 1 module in a 7e?

More
08 Feb 2019 18:06 #72819 by 406 fpv
Jumper 4 in 1 module in a 7e? was created by 406 fpv

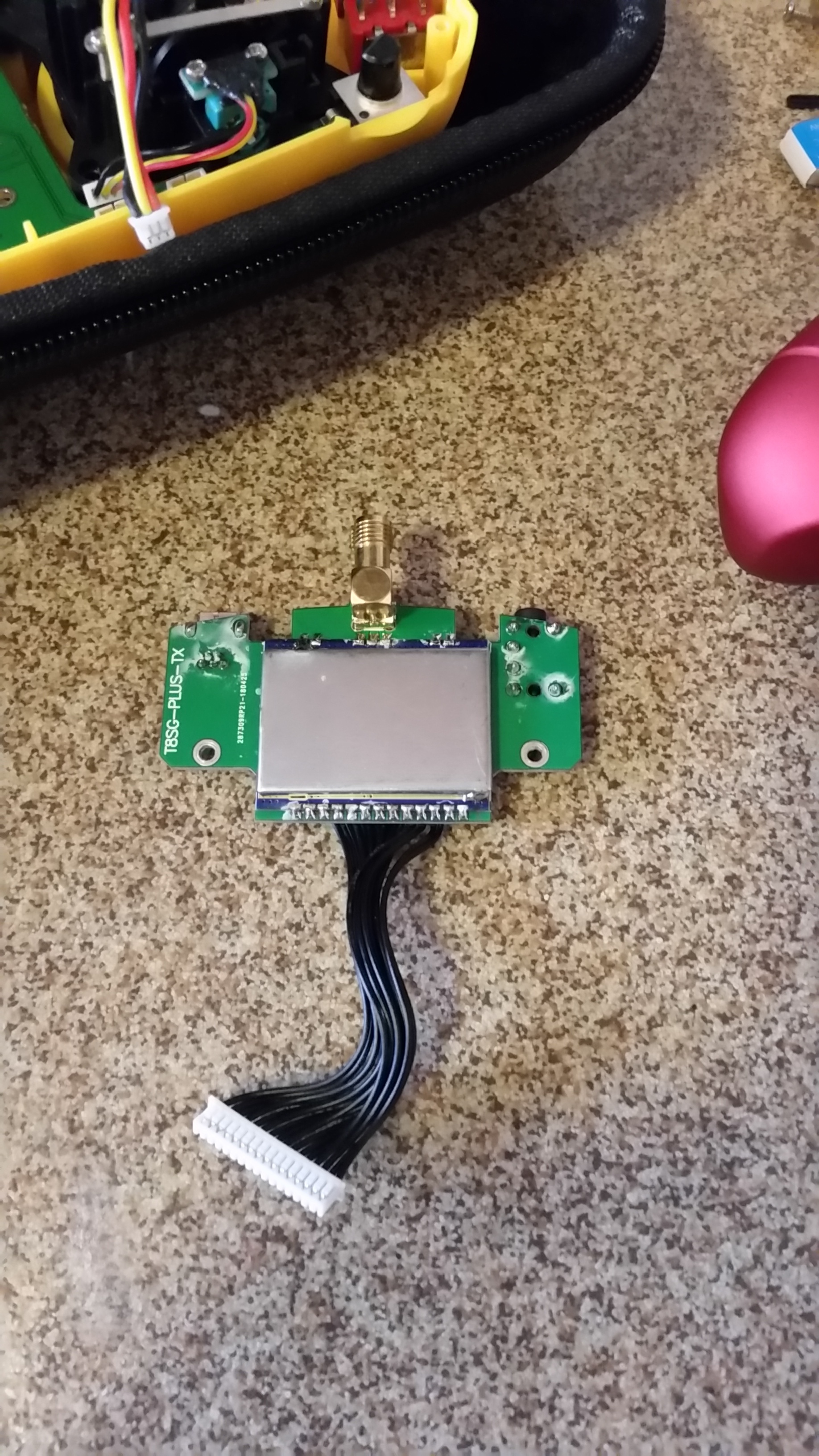

I have Jumper T8SG V2 that I'm parting out. Can I use the 4 in 1 rf module and switches on a devo 7e? I saw banggood has the devo for 45.00 us.
Attachments:

Please Log in or Create an account to join the conversation.

More
08 Feb 2019 21:06 #72826 by 406 fpv
Replied by 406 fpv on topic Jumper 4 in 1 module in a 7e?

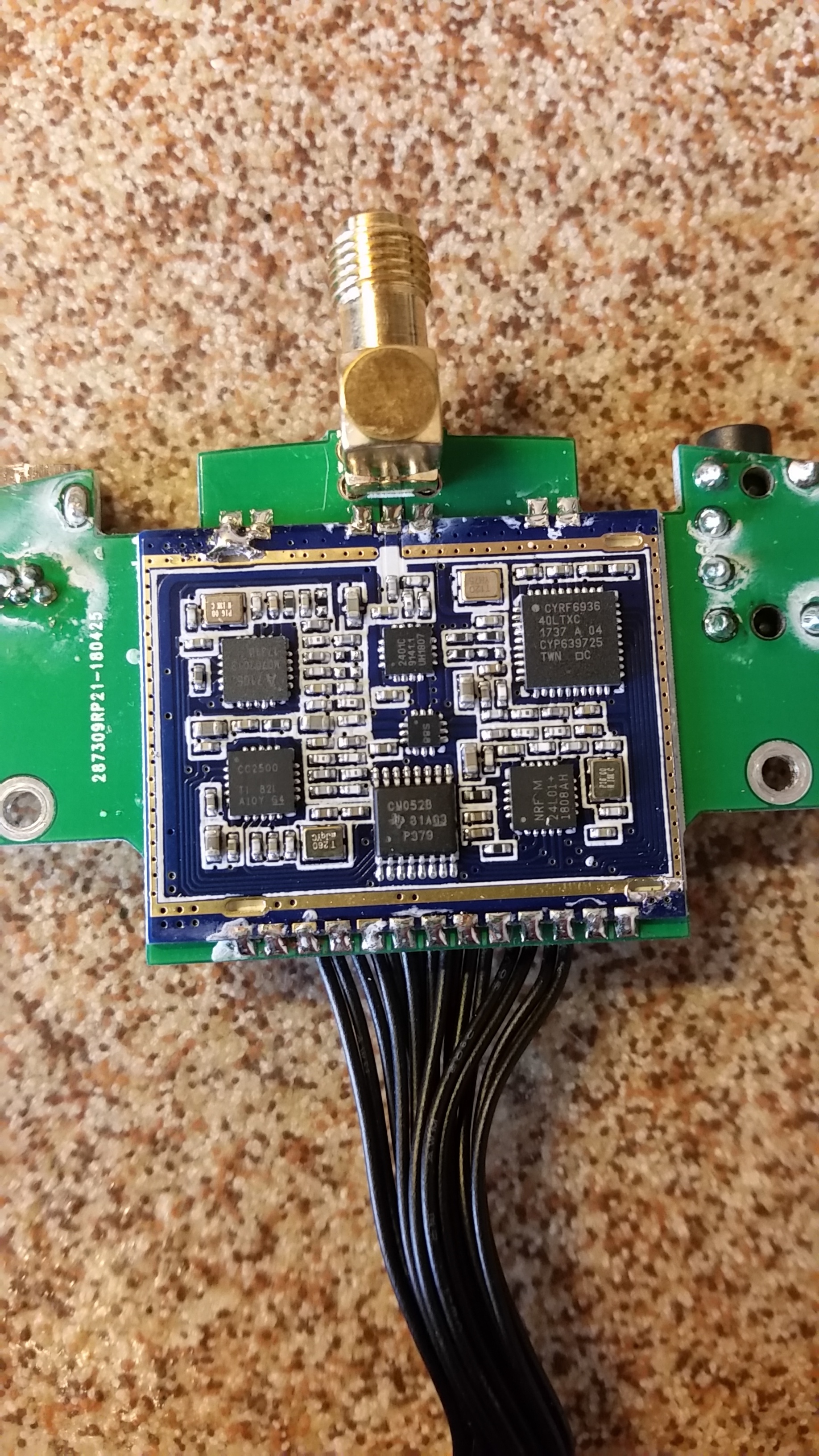

Here it is with the cover off. Would a person need to wire up all or just the protocol's I want to use? I only need bayang and frsky. Nrf240l and cc2500 are on the left side. Does anybody recognize this module and have pin outs? Thanks
Attachments:

Please Log in or Create an account to join the conversation.

More
09 Feb 2019 11:24 #72832 by 406 fpv
Replied by 406 fpv on topic Jumper 4 in 1 module in a 7e?
Any chance someone has a schematic of the devo 4 in 1? It looks to be the same with a different lower pcb. Does a person need a lower pcb or can I hard wire it in? Thanks

Please Log in or Create an account to join the conversation.

More
09 Feb 2019 12:09 #72834 by 52dgj
Replied by 52dgj on topic Jumper 4 in 1 module in a 7e?

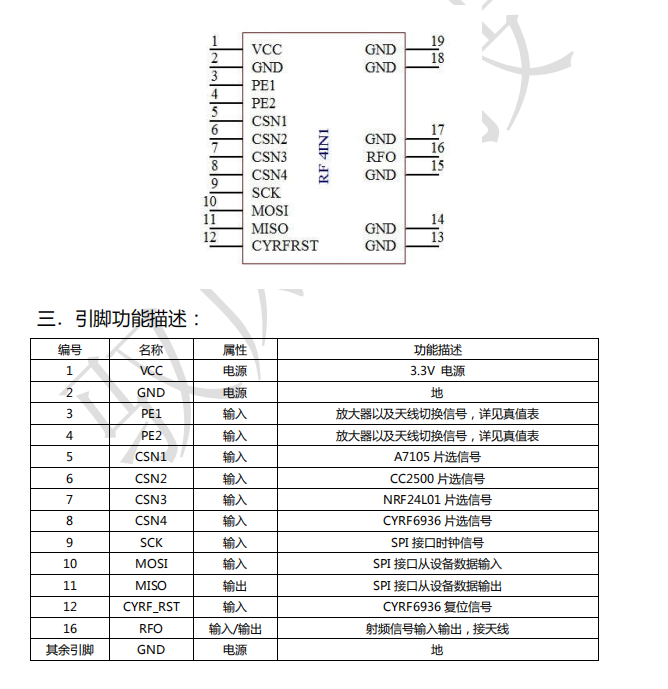

You can refer to this

DEVO12,DEVO8S,DEVO7E,DEVO10,Taranis QX7,FS-i6
Attachments:

Please Log in or Create an account to join the conversation.

More
09 Feb 2019 12:18 #72835 by 406 fpv
Replied by 406 fpv on topic Jumper 4 in 1 module in a 7e?
Thanks.

Please Log in or Create an account to join the conversation.

More
09 Feb 2019 13:03 #72836 by 406 fpv
Replied by 406 fpv on topic Jumper 4 in 1 module in a 7e?

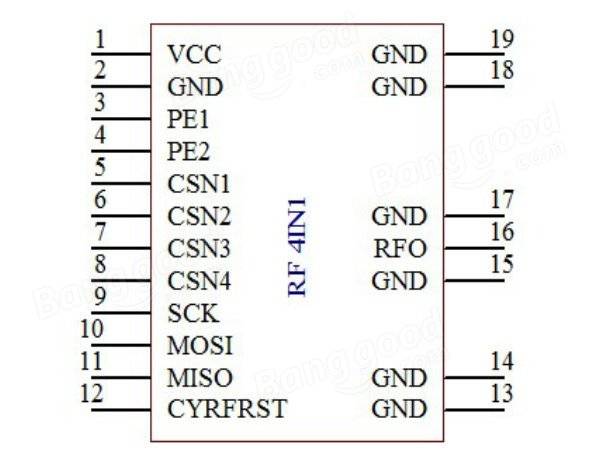

This looks identical to the 4 in 1 chip from the Jumper. Can I wire it in the way it is or is there more needed?
Attachments:

Please Log in or Create an account to join the conversation.

More
09 Feb 2019 13:25 #72837 by 52dgj
Replied by 52dgj on topic Jumper 4 in 1 module in a 7e?
This module is used by Jumper T8SG. You need to pay attention to the power supply problem.vcc is 3.3v

DEVO12,DEVO8S,DEVO7E,DEVO10,Taranis QX7,FS-i6
