- Posts: 8
Devo 8: adding a vibration motor
- mabxhrc
- Offline
- At each flight, a new brain connection...
Less
More
28 Oct 2015 02:19 #39279
by mabxhrc
Replied by mabxhrc on topic Devo 8: adding a vibration motor
mwm, thank you for the support.
I will try to do this activation at the last nightly build released then report.
Regards.
I will try to do this activation at the last nightly build released then report.
Regards.
Please Log in or Create an account to join the conversation.
- saidem
- Offline
Less
More
- Posts: 216
28 Oct 2015 11:19 - 28 Oct 2015 11:21 #39294
by saidem
Replied by saidem on topic Devo 8: adding a vibration motor
OK, thank you mwm to flying to my rescue. I do not have much time right now, but I'll come back. This is excat we must load the last nighty with the hardware.ini file and make modify you say in it. Otherwise Walkera has stopped making helicopters, but what will become the Devention TX?
Last edit: 28 Oct 2015 11:21 by saidem.
Please Log in or Create an account to join the conversation.
- Deal57
- Offline
Less
More
- Posts: 857
28 Nov 2015 15:27 #40466
by Deal57
Deviation Devo7e 3way switch mod, A7105, NRF24L01
Devo6s 2x2 switch mod, trim mod, haptic, multimodule, A7105, NRF24L01, CC2500
Devo12e 4-in-1 with voice mod -- it speaks!!
Replied by Deal57 on topic Devo 6S: adding a vibration motor
I added this vibration motor to my Devo 6S and it's working very nicely. The circuit above was easy to source and assemble. The actual soldering to my Devo6S processor was, well, challenging given the risk, but in the end it wasn't that hard. The end results are awesome. I don't understand why Walkera left out the vibration.
Anyway, here are the pieces I used:

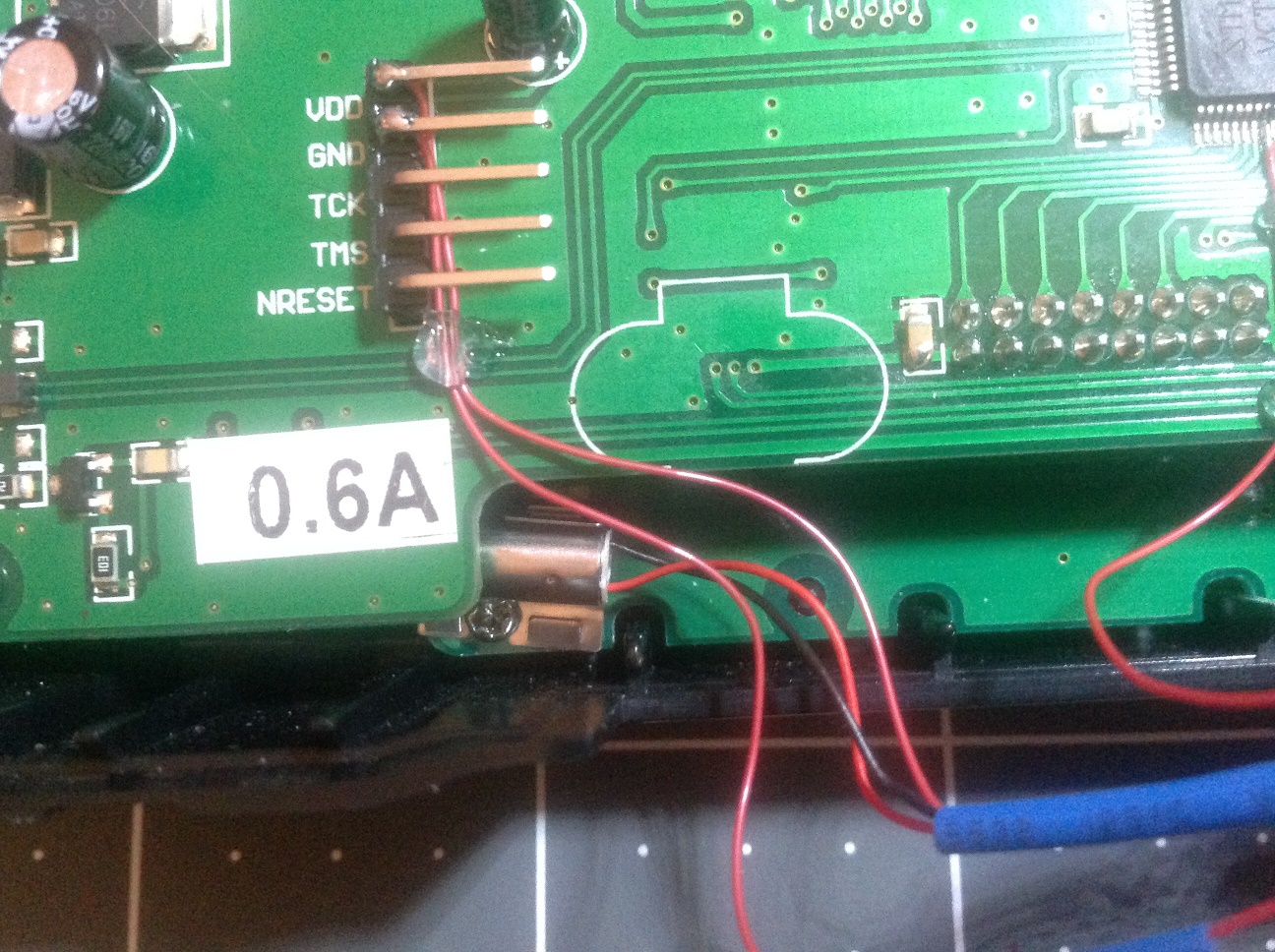

Cell Phone / Toy Micro Vibrator Motor w/ Mounting Bracket / Cable / Plug- 3 V DC ( www.ebay.com/itm/271913733382?_trksid=p2...e=STRK%3AMEBIDX%3AIT ) This motor included a frame with metal "wings" that would normally attach to the processor board. I bent one of them out about 90 degrees and it fit comfortably on one of the mounting screws.
BD237 Transistor (Digikey) - the E pin connects to ground.
1N4148 Diode - I connected the anode end and the black motor wire to the middle pin of the BD237; note the band (cathode end) should face AWAY from the transistor. On the cathode side of the diode I connected the red wire for the motor as well as Vdd (3.3v).
220 Ohm Resistor - I connected one side of this resistor to Pin 83 of the Devo6S processor, and the other to the Base of the Transistor.
30-gauge wire & shrink wrap
I also made use of Kapton tape to isolate the one processor pin that I wanted to connect. This helped a lot and along with the flux paste probably avoided having a sorry ending.

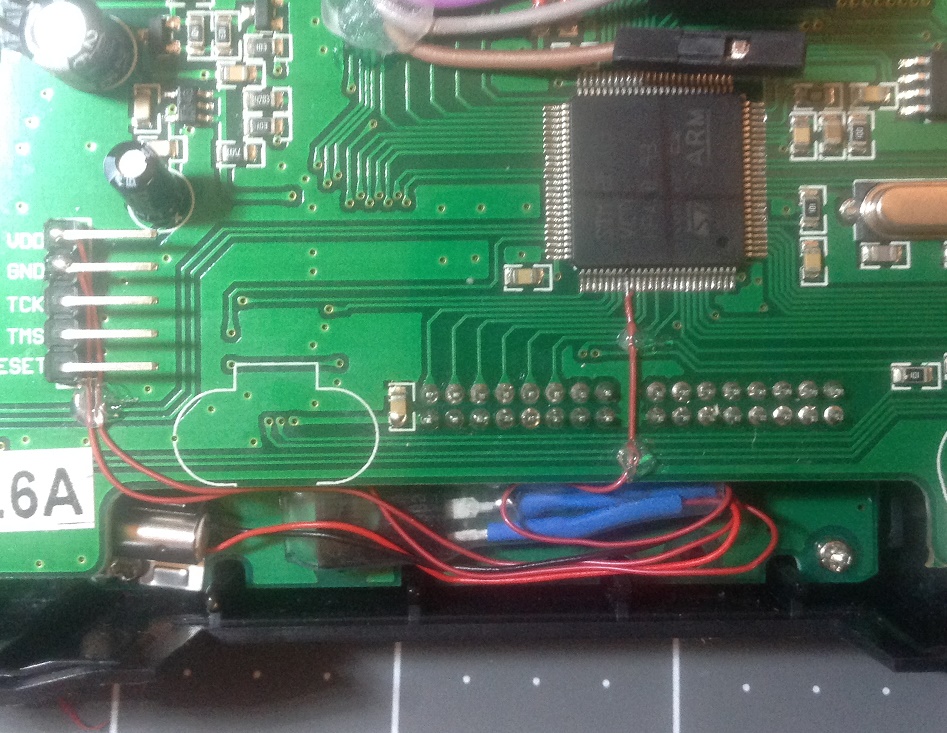

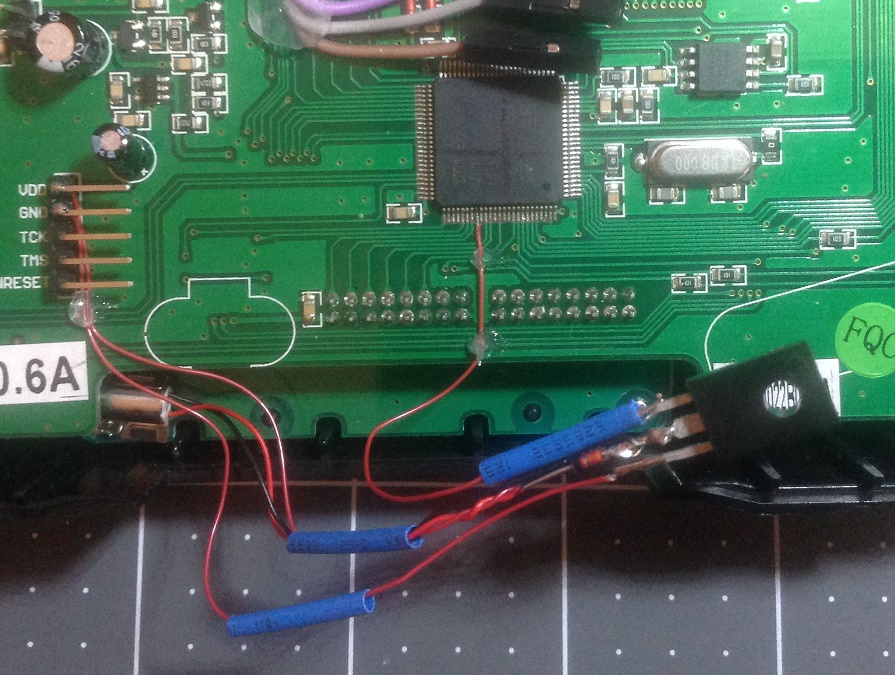

The wiring diagram above is exactly right. Here's what it looked like for me.
I edited the Hardware.ini file to enable the Haptic by removing the semi-colon (";") from that line "enable-haptic=1" and cycled the power on the Devo. However there were no vibrations. Then I remembered that you also need to turn on vibration in the transmitter configuration tx.ini file "vibration=1". This because in the Devo 6 and 8 there is no menu for Vibrate on/off and volume; the Devo 7e and 10 have the menu option because they have a native vibrator. The next time I powered on, I got good vibrations!
Anyway, here are the pieces I used:
Cell Phone / Toy Micro Vibrator Motor w/ Mounting Bracket / Cable / Plug- 3 V DC ( www.ebay.com/itm/271913733382?_trksid=p2...e=STRK%3AMEBIDX%3AIT ) This motor included a frame with metal "wings" that would normally attach to the processor board. I bent one of them out about 90 degrees and it fit comfortably on one of the mounting screws.
BD237 Transistor (Digikey) - the E pin connects to ground.
1N4148 Diode - I connected the anode end and the black motor wire to the middle pin of the BD237; note the band (cathode end) should face AWAY from the transistor. On the cathode side of the diode I connected the red wire for the motor as well as Vdd (3.3v).
220 Ohm Resistor - I connected one side of this resistor to Pin 83 of the Devo6S processor, and the other to the Base of the Transistor.
30-gauge wire & shrink wrap
I also made use of Kapton tape to isolate the one processor pin that I wanted to connect. This helped a lot and along with the flux paste probably avoided having a sorry ending.
The wiring diagram above is exactly right. Here's what it looked like for me.
I edited the Hardware.ini file to enable the Haptic by removing the semi-colon (";") from that line "enable-haptic=1" and cycled the power on the Devo. However there were no vibrations. Then I remembered that you also need to turn on vibration in the transmitter configuration tx.ini file "vibration=1". This because in the Devo 6 and 8 there is no menu for Vibrate on/off and volume; the Devo 7e and 10 have the menu option because they have a native vibrator. The next time I powered on, I got good vibrations!
Deviation Devo7e 3way switch mod, A7105, NRF24L01
Devo6s 2x2 switch mod, trim mod, haptic, multimodule, A7105, NRF24L01, CC2500
Devo12e 4-in-1 with voice mod -- it speaks!!
Please Log in or Create an account to join the conversation.
- Fernando
- Offline
Less
More
- Posts: 68
02 Feb 2016 13:25 #42509
by Fernando
Replied by Fernando on topic Devo 8: adding a vibration motor
Hi everyone,
Does anyone know if this mod is suitable to make it on a 12S?
Thanks!
Does anyone know if this mod is suitable to make it on a 12S?
Thanks!
Please Log in or Create an account to join the conversation.
- richardclli
- Offline
Less
More
- Posts: 199
04 Feb 2016 18:49 #42580
by richardclli
Replied by richardclli on topic Devo 8: adding a vibration motor
12S need a different pin, and some mod in the code.
Please Log in or Create an account to join the conversation.
- Fernando
- Offline
Less
More
- Posts: 68
06 Feb 2016 18:22 #42685
by Fernando
Do you have some info or details about it?
Thanks.
Replied by Fernando on topic Devo 8: adding a vibration motor
richardclli wrote: 12S need a different pin, and some mod in the code.
Do you have some info or details about it?
Thanks.
Please Log in or Create an account to join the conversation.
- ianderrick
- Offline
Less
More
- Posts: 2
26 Dec 2017 06:13 #66611
by ianderrick
Replied by ianderrick on topic Devo 8: adding a vibration motor
Buddy,are you buy this motor from
http://jinlong-electronics.comhere
?
Please Log in or Create an account to join the conversation.
- ianderrick
- Offline
Less
More
- Posts: 2
03 Jul 2018 01:30 #69760
by ianderrick
Replied by ianderrick on topic Devo 8: adding a vibration motor
It's very old post. But I still want to say it's really easy to replace
https://www.vibrationmotors.com/product-guide/the vibration here as the voltage is 3V DC
