F12E m9 hall gimbal adapter
- Toolbox1211
- Topic Author
- Offline
Less
More
15 Mar 2019 22:34 - 16 Mar 2019 22:05 #73378
by Toolbox1211
F12E m9 hall gimbal adapter was created by Toolbox1211

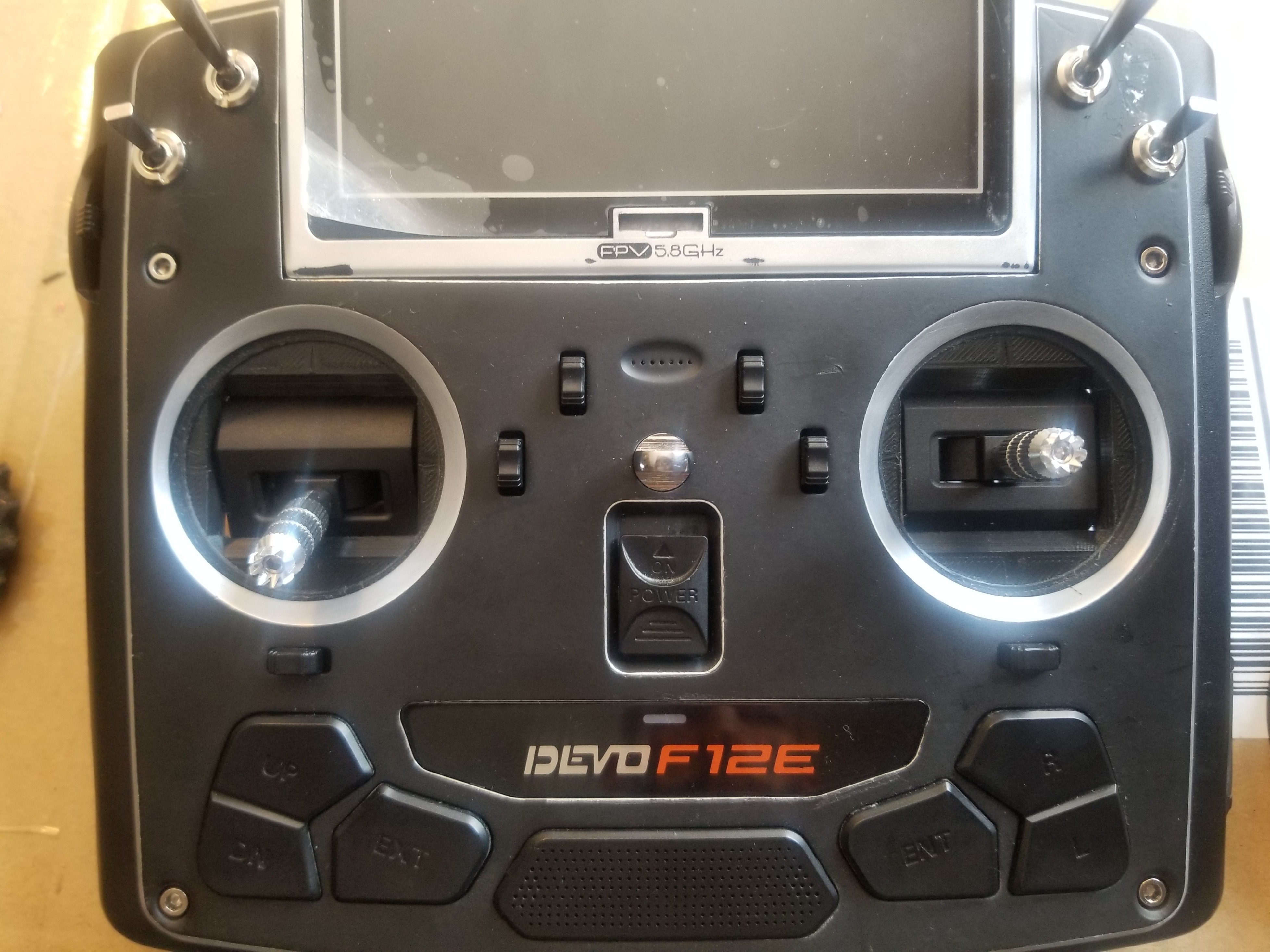

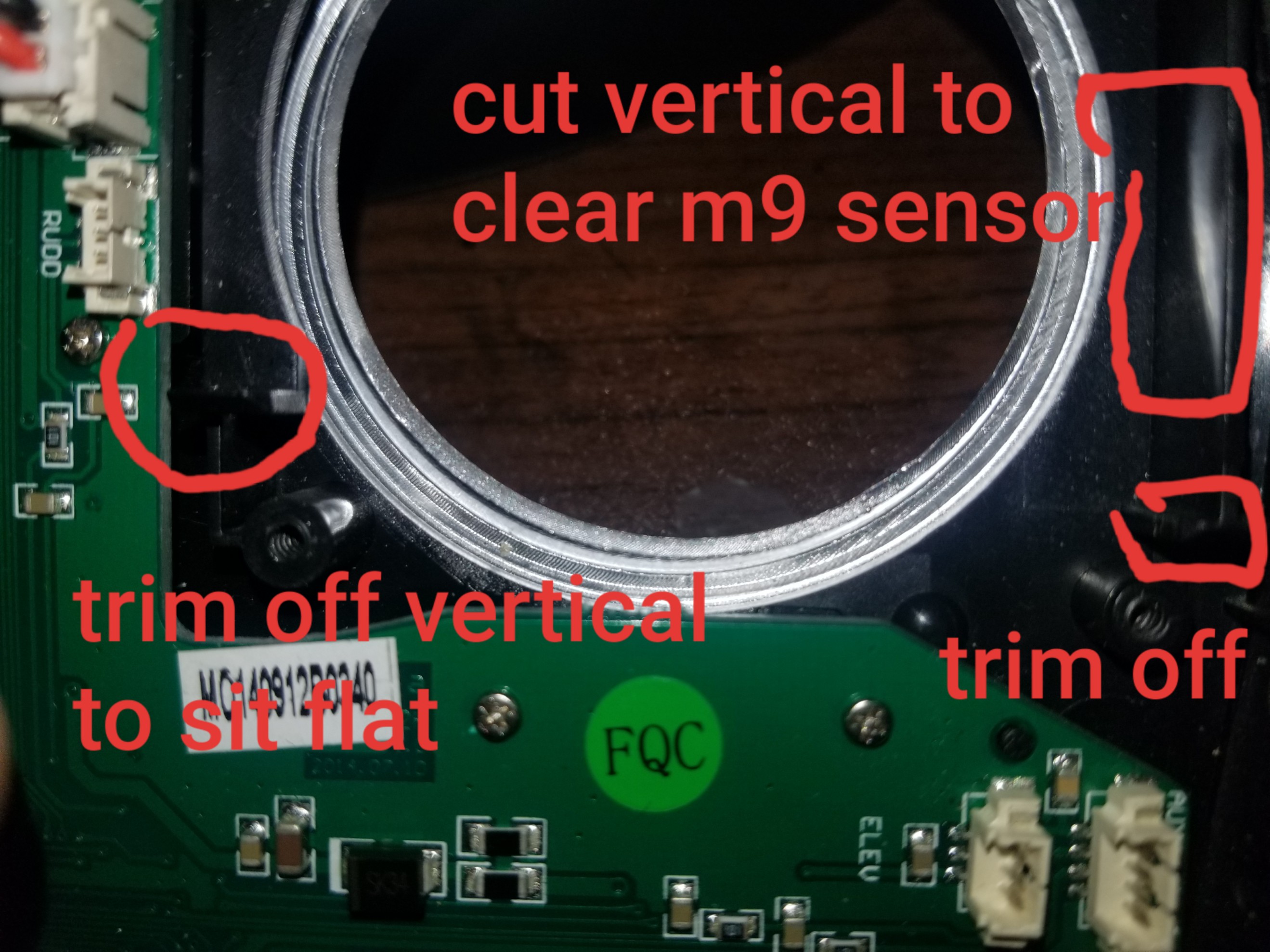

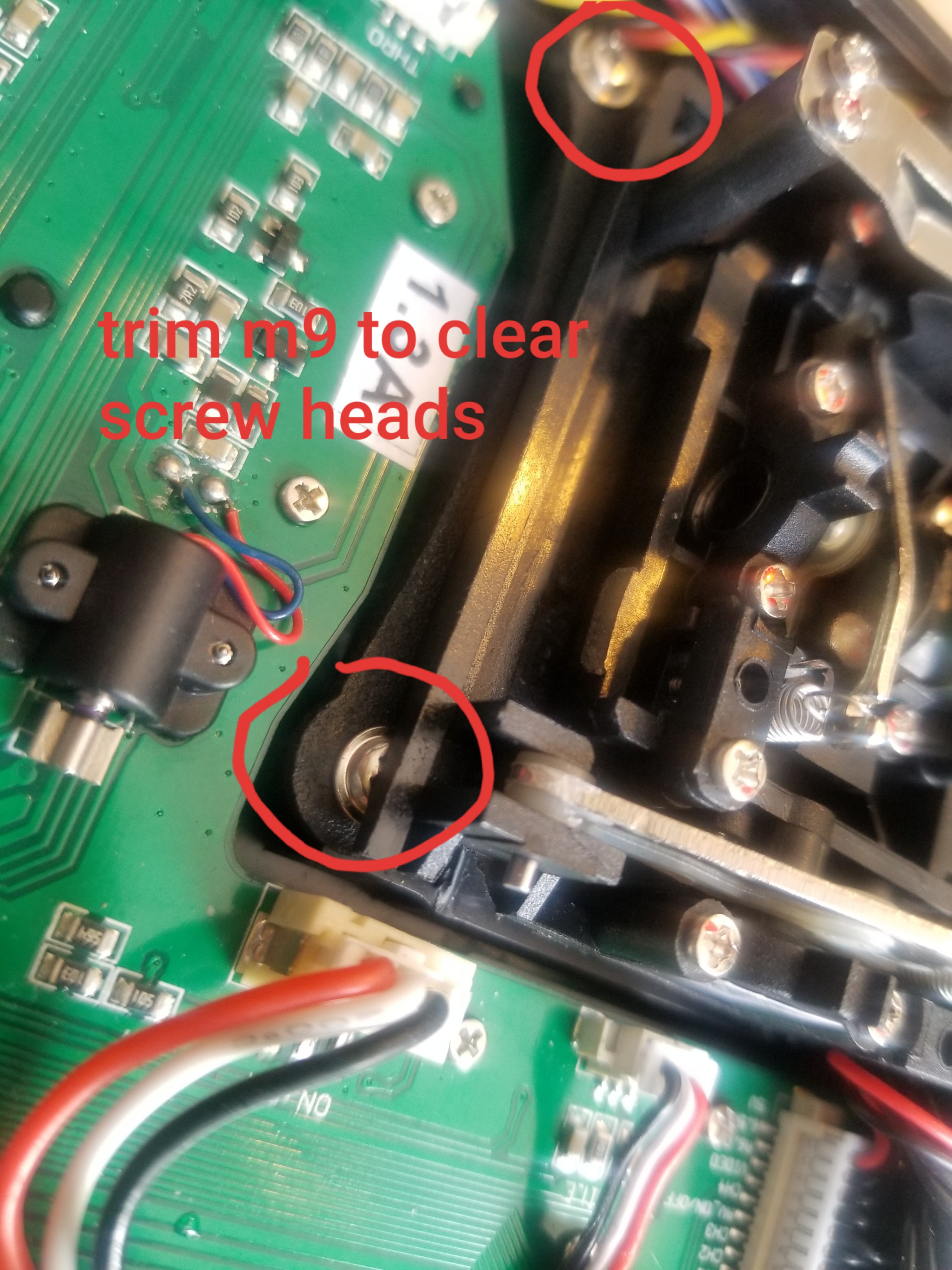

Little trimming required in controller nothing that matters. Little more trimming of the m9 gimbal if you use origional screws.

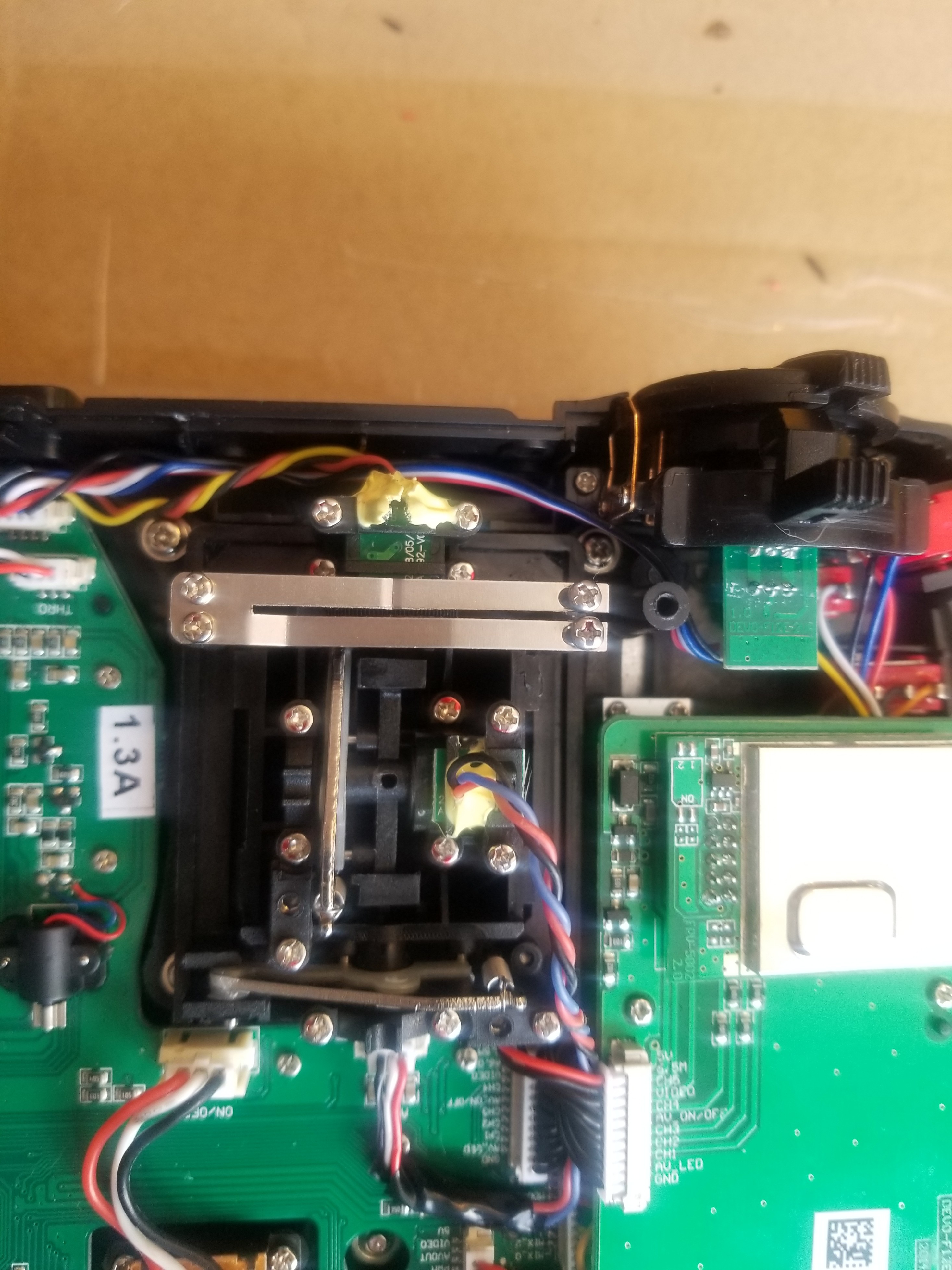

There was no room to go off richardccl's stl . M9's mount from the front like origional no presser plate. You need to take the face plate off the controller and theres just enof room to tighted the gimbal on.
DO NOT reverse flip or touch the magnets.
As for the wires the plug does not fit you will need to crimp a custom end with the correct connector. Or you can cut and solder the old ones on the new gimbals.
Colors match black for black red for red and other for signal
I made a Thingsverse account just to post this but they requires 24hours membership before you can post a thing so the stl is on the way soon
Many thanks to richardccl whos stl i traced and modified so give credit where its due

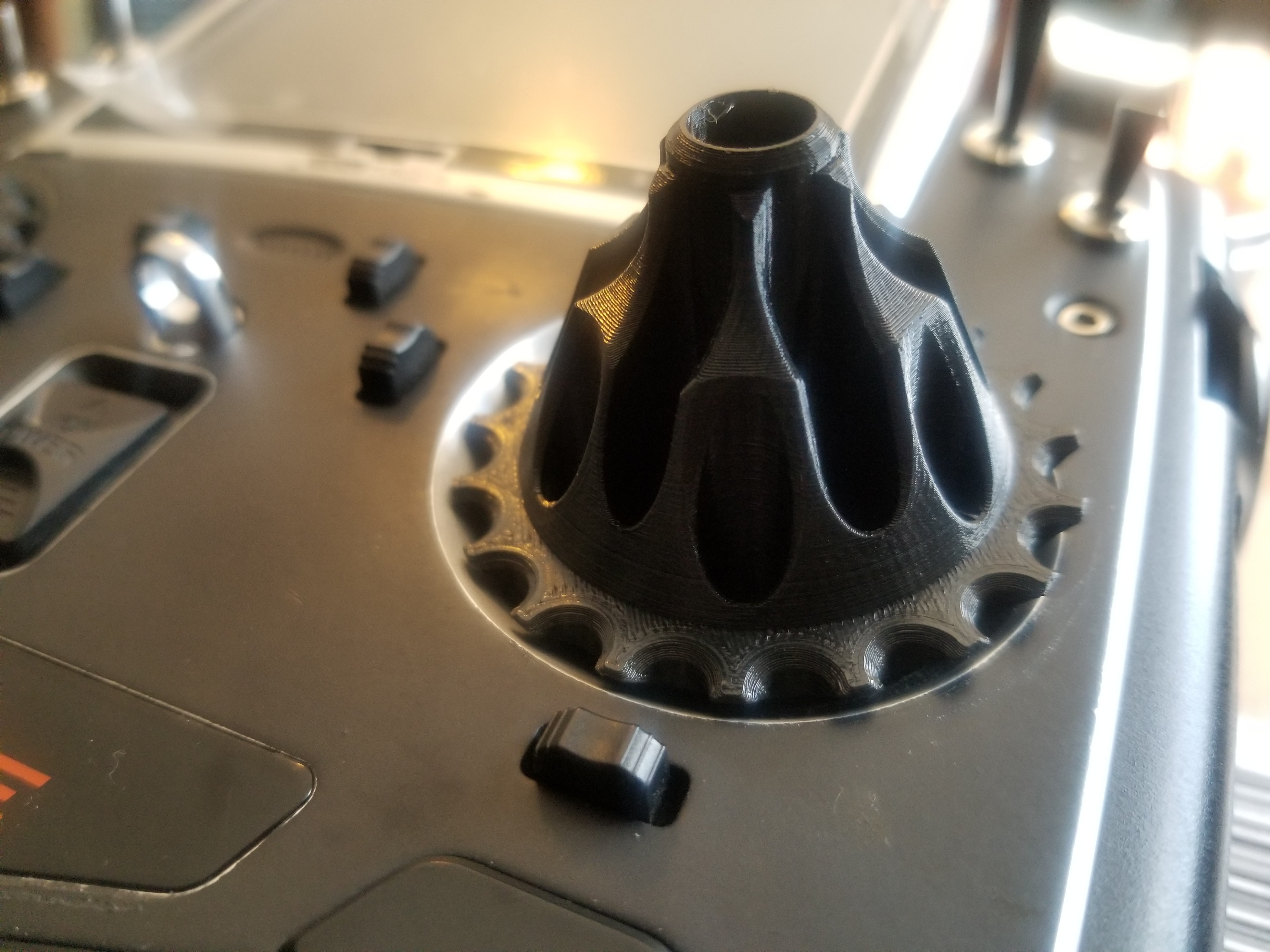

Stick protectors will also be included when the stl arives

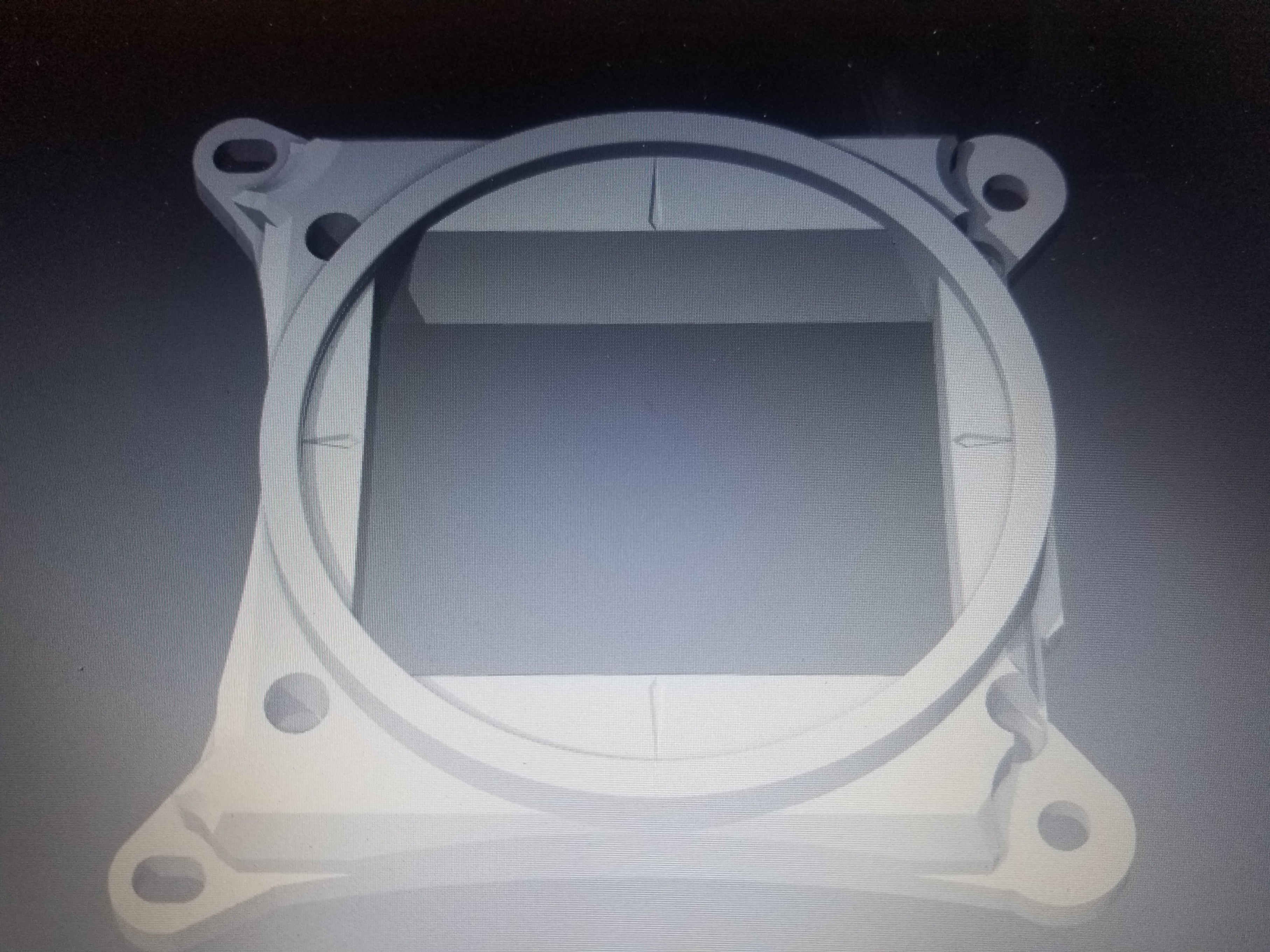

www.thingiverse.com/thing:3494596
There was no room to go off richardccl's stl . M9's mount from the front like origional no presser plate. You need to take the face plate off the controller and theres just enof room to tighted the gimbal on.
DO NOT reverse flip or touch the magnets.
As for the wires the plug does not fit you will need to crimp a custom end with the correct connector. Or you can cut and solder the old ones on the new gimbals.
Colors match black for black red for red and other for signal
I made a Thingsverse account just to post this but they requires 24hours membership before you can post a thing so the stl is on the way soon
Many thanks to richardccl whos stl i traced and modified so give credit where its due
Stick protectors will also be included when the stl arives
www.thingiverse.com/thing:3494596
Last edit: 16 Mar 2019 22:05 by Toolbox1211.
