Hey Guys

Im currently flying a dji naza f450 quadcopter with naza controler

one 3 way switch is used to toggle between gps atti and manual mode
but a need a extra switch to toggle a extra vallue on the same channel

can i do this with a mixer setup ?

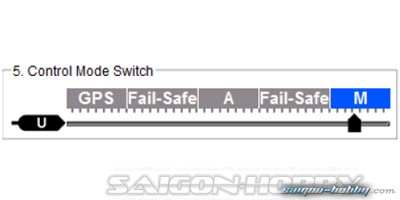

see atachment

Please Log in or Create an account to join the conversation.

FDR
Offline

21 Aug 2013 09:04 #13069 by FDR

Replied by FDR on topic Need 4 vallues from 3 way switch + extra switch

Yep:
- select the "Expo&DR" template for the appropriate channel;
- set the function to "Fixed";
- set the "Switch1" and "Switch2" for example to "MIX1" and "MIX2" (if you intend to use the MIX switch for the purpose);
- set the scale values to "-100", "0" and "+100", and it's done...

Please Log in or Create an account to join the conversation.

rbe2012
Offline
So much to do, so little time...

21 Aug 2013 09:28 #13073 by rbe2012

Replied by rbe2012 on topic Need 4 vallues from 3 way switch + extra switch

Do you need a virtual 4-pos-switch?
In this case follow FDRs advice, change the mixer to complex, define a 4th page, move to this and select the additional switch (say RUDD DR1) and an appropriate value (say +70).
So you will get:

RUDD DR  -  MIX  -  result
    0    -   0   -   -100
    0    -   1   -      0
    0    -   2   -    100
    1    -   x   -     70

Please Log in or Create an account to join the conversation.

FDR
Offline

21 Aug 2013 09:41 #13077 by FDR

Replied by FDR on topic Need 4 vallues from 3 way switch + extra switch

Sorry!
It's too early for me to read properly, and I was misleaded by the picture, because there were only 3 real values: GPS, A and M.

Note, that if you will add an other switch to the mix, when that is on the output will be the value you configured for it, whatever position your mix switch is in...

Please Log in or Create an account to join the conversation.

ledfreak3d
Topic Author
Offline

21 Aug 2013 19:11 - 21 Aug 2013 20:11 #13130 by ledfreak3d

Replied by ledfreak3d on topic Need 4 vallues from 3 way switch + extra switch

Thanks FDR Its working great.
I will only be using it as a way to force failsave mode
witch is equal to return to home for naza

Last edit: 21 Aug 2013 20:11 by ledfreak3d.
