01 Aug 2014 14:25 - 10 Sep 2014 05:02 #24947 by Birdman
Lanyu ASW28 was created by Birdman
This may be useful to someone. May also be good starting point for other gliders.

Devo 8s Mode 2

ADIF Aileron differencial
E>F Elevator > Flap mixing
A>R Aileron > Rudder mix. R/DR sw
F>A Flap > Aileron mix. AIL/DR sw
F>E Flap > Elevator.
CROW Airbrakes. Gear sw
AIL.T Aileron Trim. Trims ailerons up/down together.
Flap1, Flap2. Mix1 Mix2 sw
A>F Aileron > Flap mix. ELE/DR sw
DFL.T Dual Flap Trim. R Trim. Trims flaps opposite to each other.
Flaps L Trim
Motor brake

This is for DSM2 with Spectrum AR7000 rx. Have done another setup for PPM with Corona rx.

Have setup sheets with descriptions for ASW28.

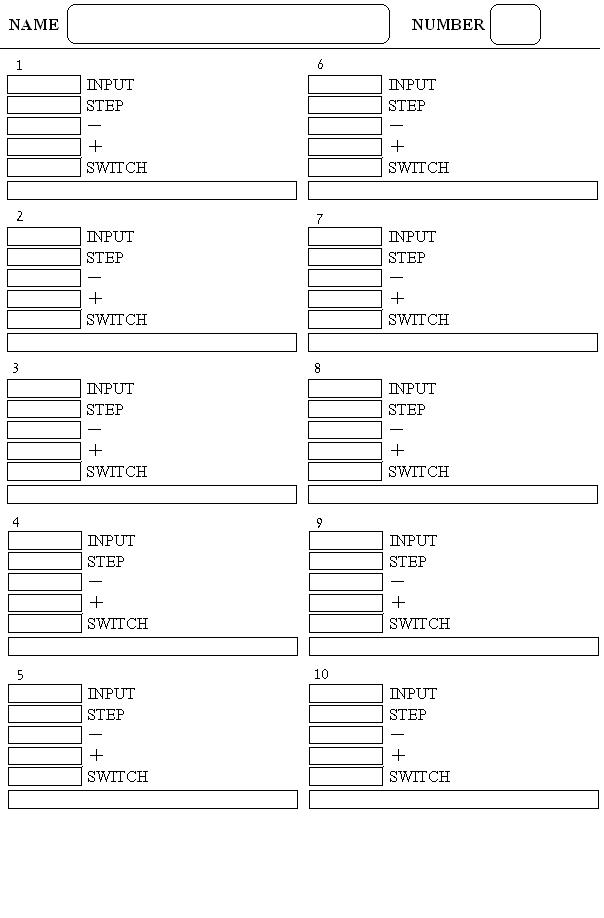

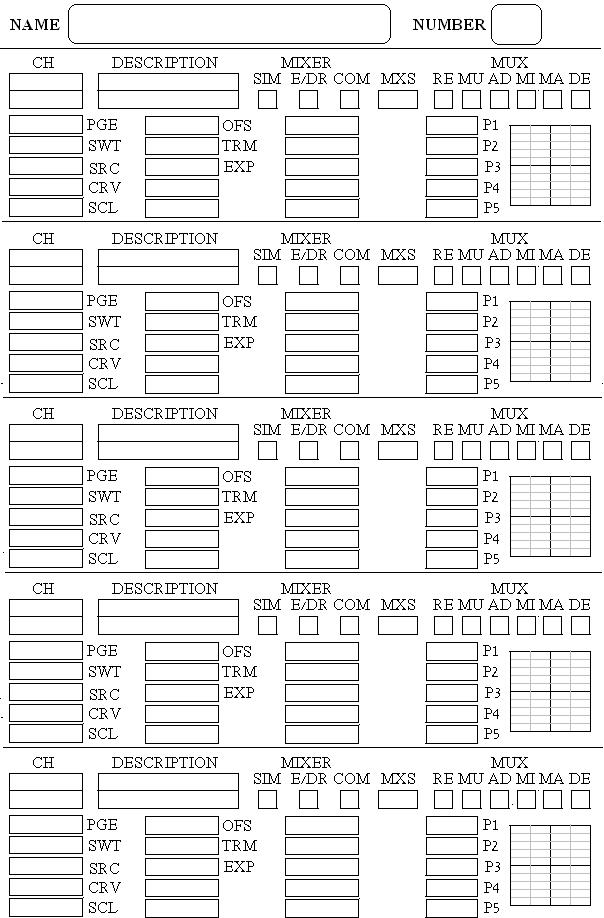

Setup sheets below are very useful when setting up a new model from scratch.

Will add more info.
Last edit: 10 Sep 2014 05:02 by Birdman.

Please Log in or Create an account to join the conversation.

More
31 Aug 2014 10:13 #25439 by Birdman
Replied by Birdman on topic Lanyu ASW28
Braved it today and maidened ASW with my Deviation 8s. All went well.

Have edited first post with vid and other stuff.

Bm

Please Log in or Create an account to join the conversation.

More
01 Sep 2014 19:55 - 01 Sep 2014 21:07 #25454 by Bollis
Replied by Bollis on topic Lanyu ASW28
Thanks for your ini file! This works nice. I edited it for the devo receiver and this is mode2. Please look carefully so your channels are not reversed and is working properly before flight.
Attachments:
Last edit: 01 Sep 2014 21:07 by Bollis. Reason: added more txt

Please Log in or Create an account to join the conversation.

More
02 Sep 2014 00:12 - 02 Sep 2014 06:21 #25457 by Birdman
Replied by Birdman on topic Lanyu ASW28
Good it is useful. Fair amount of time went into that setup.

NOTE:

When A>F is on, F1 & F2 are disabled.

Throttle is on throttle. How i like it.

Crow is up throttle. Motor disabled when crow on.

Timer1 is throttle activated for motor run time.
Timer2 is Fmod1. Flight duration. On prior to launch, off when land.
Timer3 is total hours.
Fmod2 resets timer 1 and 2

F>E are configured but set to 0 until I get more time to fly it. Until setup, when any flap is selected glider will pitch.

Bm
Last edit: 02 Sep 2014 06:21 by Birdman.

Please Log in or Create an account to join the conversation.

More
10 Sep 2014 05:06 #25598 by Birdman
Replied by Birdman on topic Lanyu ASW28
Have updated model.ini in first post.

Toggle icon change.

Bm

Please Log in or Create an account to join the conversation.

More
04 Jan 2016 18:55 #41379 by seurat
Replied by seurat on topic Lanyu ASW28
Hi Birdman,

I intend to use your ASW28 INI file and adapt it for the E-flite Adagio 280. I'm having trouble understanding the virtual channels 1 & 2 (FLAP & DFL.T). Can you explain how these VCs work, what they do?
