Help on getting SPI
- Tradecrafter
- Topic Author
- Offline
Less
More
18 Aug 2016 01:13 - 18 Aug 2016 05:00 #52856
by Tradecrafter
Help on getting SPI was created by Tradecrafter

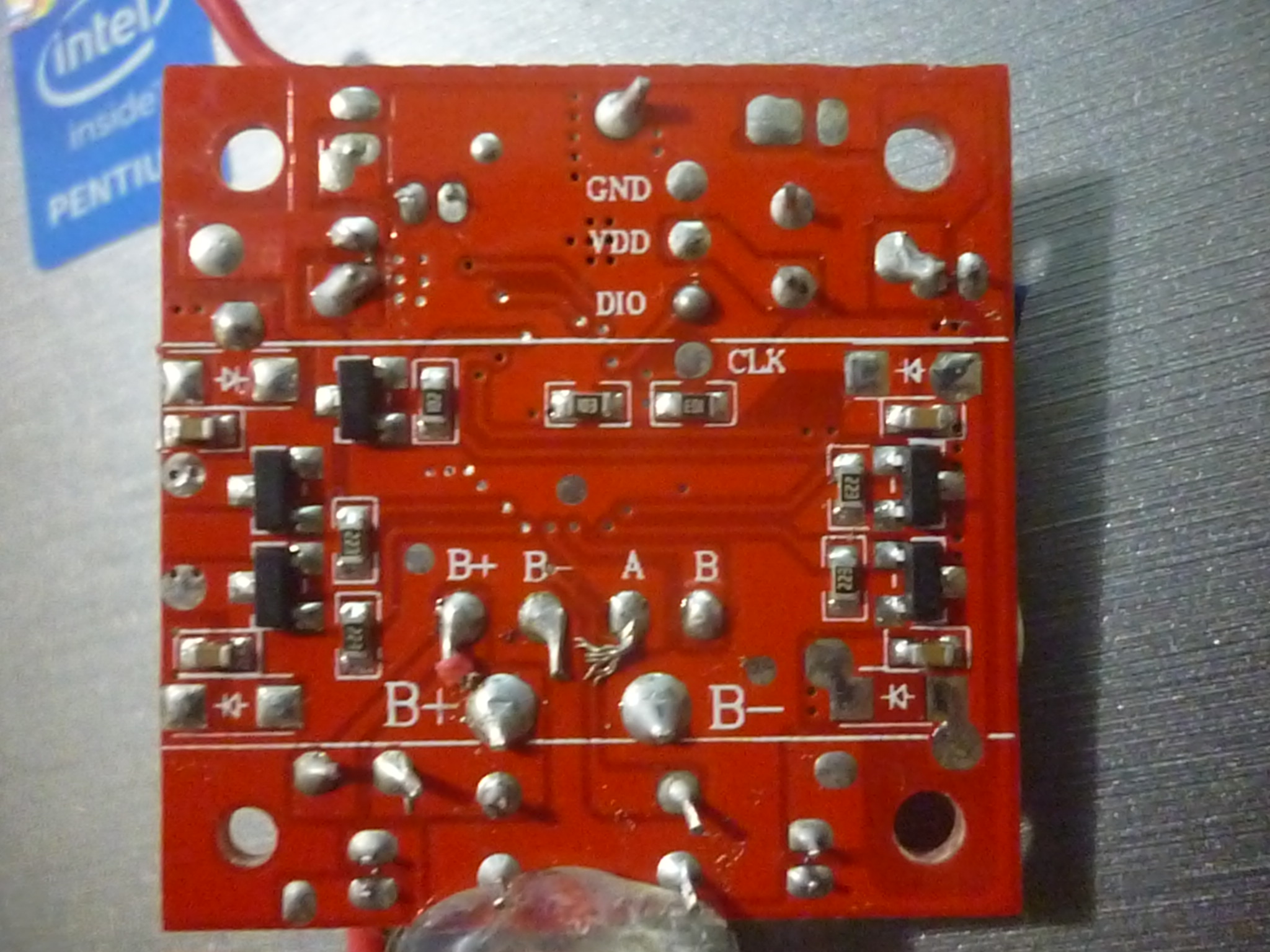

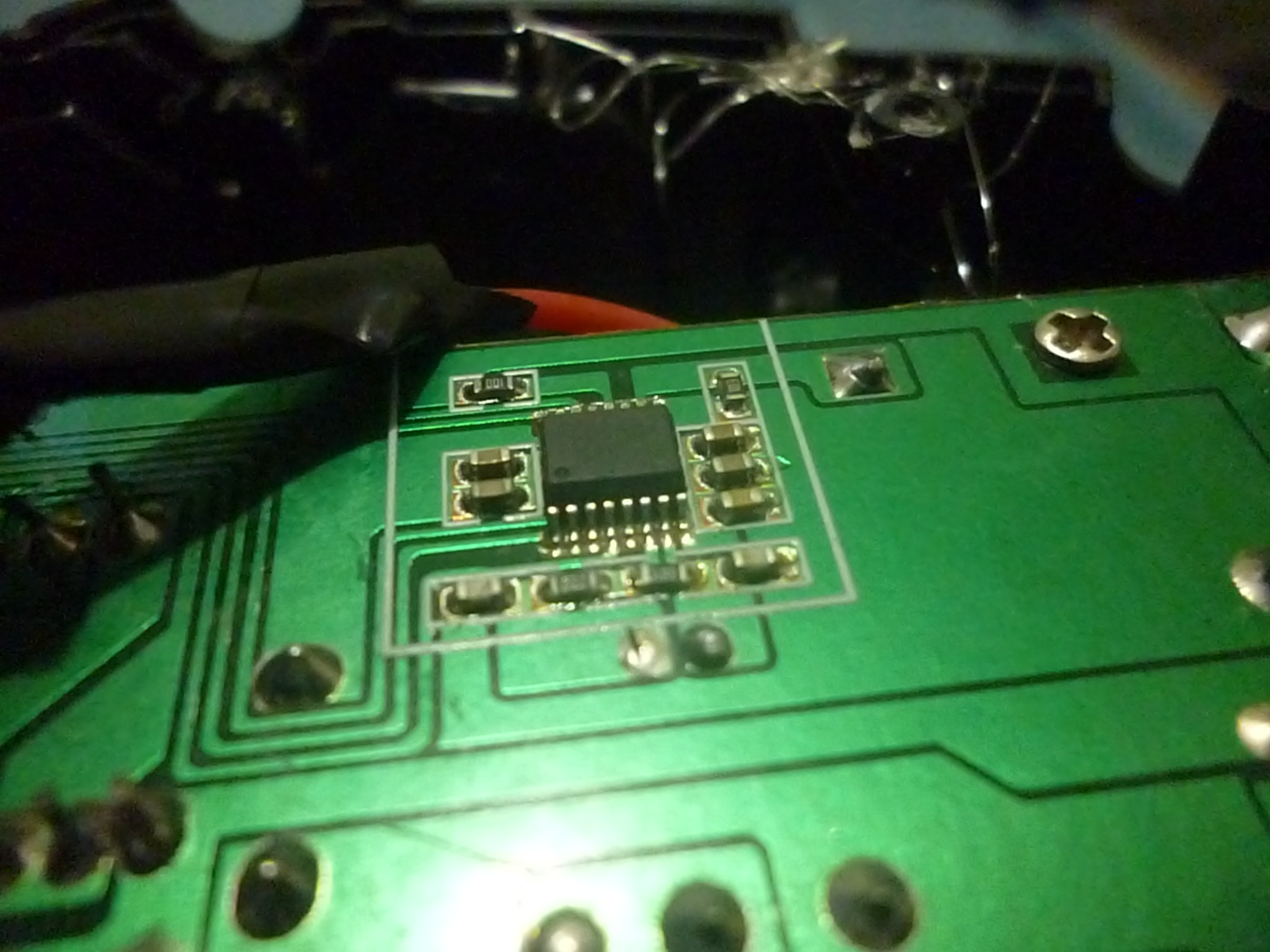

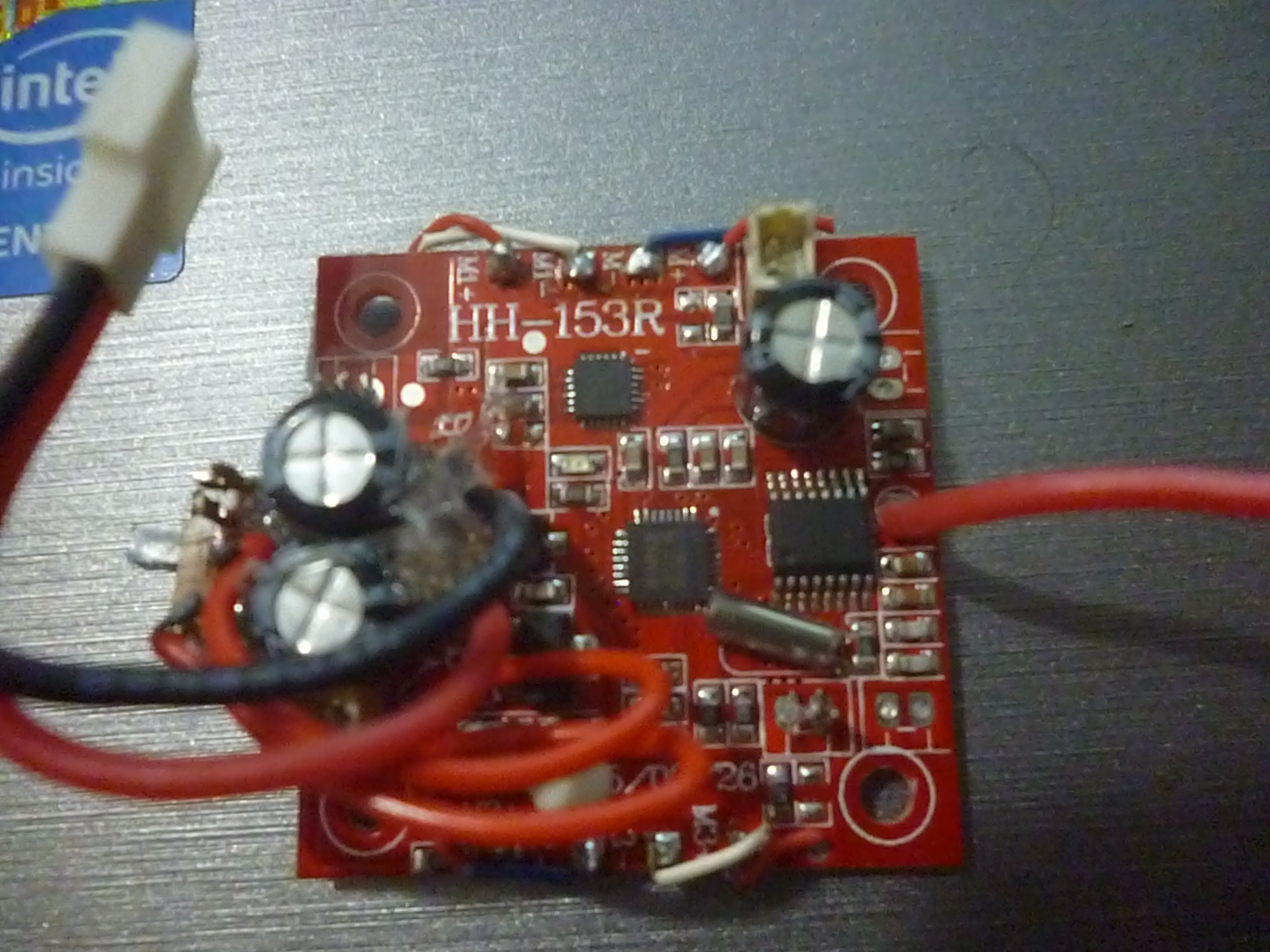

I've bought one Saleae Logic, in order to capture TX data from an FQ777 Quad to make an receiver for his radio controller, on the Controller board there is two fields with microchips soldered, one of them are alone with direct connection with the antenna, it has 16 pins on it, and no names...

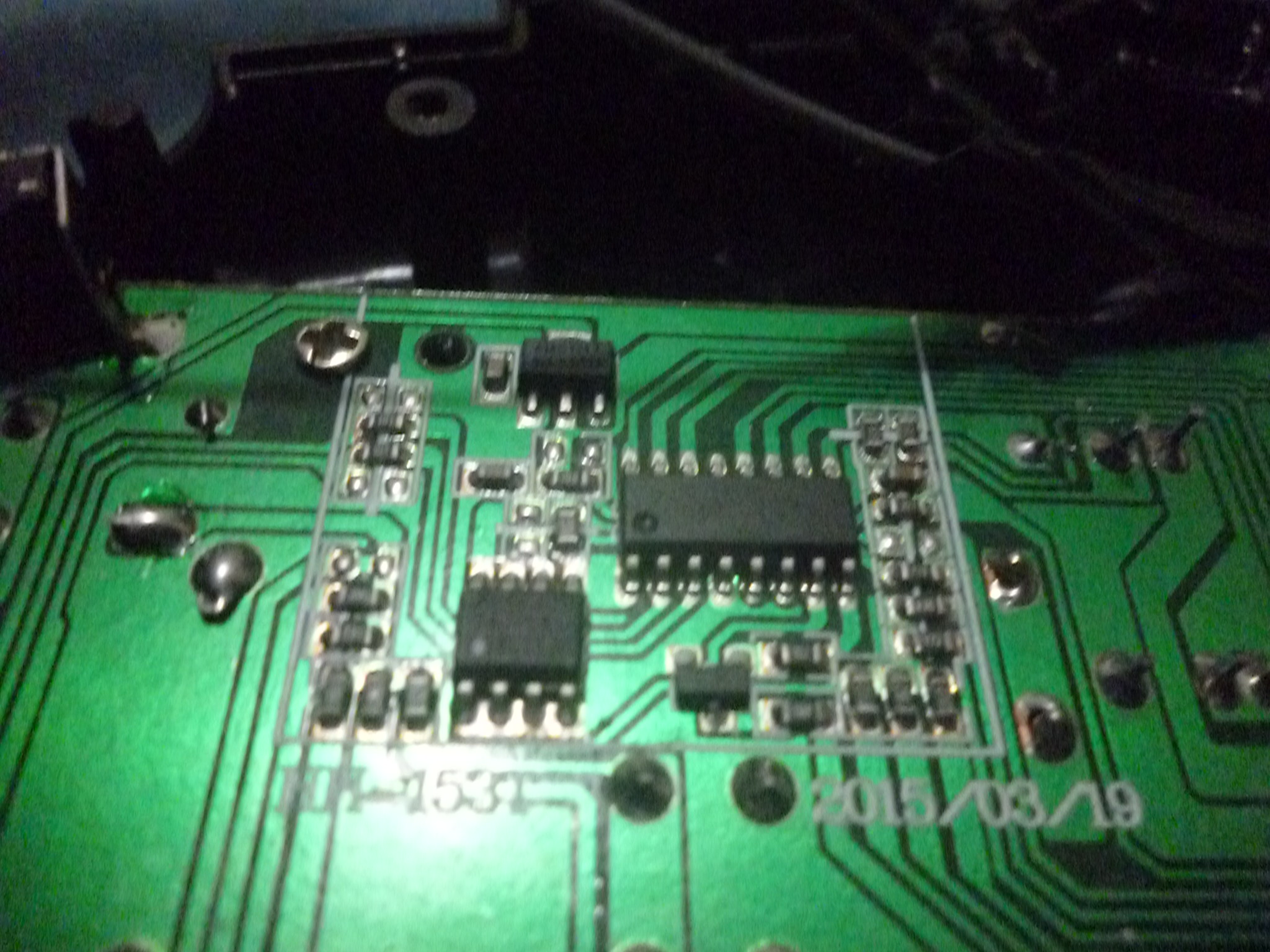

the other ones are distant from the antenna , but one of them has 8 pins, like Mosi, Miso...
please can anyone give some directions on how to do this ?
i had measured the voltage on every pin on the 16 pins microchip, near to the antenna, and got many readings, 3,3v, 1,79v, 0,90v... i found that has two gnd readings.
the other ones are distant from the antenna , but one of them has 8 pins, like Mosi, Miso...
please can anyone give some directions on how to do this ?
i had measured the voltage on every pin on the 16 pins microchip, near to the antenna, and got many readings, 3,3v, 1,79v, 0,90v... i found that has two gnd readings.
Last edit: 18 Aug 2016 05:00 by Tradecrafter.
Please Log in or Create an account to join the conversation.
- Tradecrafter
- Topic Author
- Offline
Less
More
- Posts: 6
18 Aug 2016 02:56 #52858
by Tradecrafter
Replied by Tradecrafter on topic Help on getting SPI
Please Log in or Create an account to join the conversation.
- mwm
- Offline
18 Aug 2016 08:10 #52864
by mwm
Do not ask me questions via PM. Ask in the forums, where I'll answer if I can.
My remotely piloted vehicle ("drone") is a yacht.
Replied by mwm on topic Help on getting SPI
The first step is to find out what the major integrated circuits are. Then you can check the data sheet and see what kind of communications the RF module use. That will tell you which pins you want to use.
You will be looking for digital logic values (that's what the salea reads). Checking voltages won't help with those. Chances are you'll want to watch the miso and mosi lines, as well as a clock and chip select. Put probes from the salea on each of those and ground, then run a capture while you bind the two radios and see if you've got data that looks like an SPI interchange. But until you have the data sheet for the RF module, that won't do you much good.
If you're not familiar with SPI, sparkfun had a nice overview: learn.sparkfun.com/tutorials
You will be looking for digital logic values (that's what the salea reads). Checking voltages won't help with those. Chances are you'll want to watch the miso and mosi lines, as well as a clock and chip select. Put probes from the salea on each of those and ground, then run a capture while you bind the two radios and see if you've got data that looks like an SPI interchange. But until you have the data sheet for the RF module, that won't do you much good.
If you're not familiar with SPI, sparkfun had a nice overview: learn.sparkfun.com/tutorials
Do not ask me questions via PM. Ask in the forums, where I'll answer if I can.
My remotely piloted vehicle ("drone") is a yacht.
Please Log in or Create an account to join the conversation.
- Tradecrafter
- Topic Author
- Offline
Less
More
- Posts: 6
18 Aug 2016 13:49 #52873
by Tradecrafter
Replied by Tradecrafter on topic Help on getting SPI
yeah man, i was hoping that someone here could know this microchip brand/name...
Please Log in or Create an account to join the conversation.
- mwm
- Offline
19 Aug 2016 12:50 #52898
by mwm
Do not ask me questions via PM. Ask in the forums, where I'll answer if I can.
My remotely piloted vehicle ("drone") is a yacht.
Replied by mwm on topic Help on getting SPI
Can you get a picture that shows the text on the chips?
Do not ask me questions via PM. Ask in the forums, where I'll answer if I can.
My remotely piloted vehicle ("drone") is a yacht.
Please Log in or Create an account to join the conversation.
