DM002 protocol (contains captures)

Opening a topic for protocol creation for the DM002 drone www.banggood.com/DM002-5_8G-FPV-With-600...r-RTF-p-1114854.html
Discussion initiated at www.deviationtx.com/forum/protocol-devel...gw008?start=80#60417 but continuing here as it seems to be different protocol than CX10 or GW008

The drone has the PAN159CY chip whereas the stock TX has XN297LBW 1615 radio.

I took the following SPI captures from the TX, stored to drive.google.com/drive/folders/0BxykaYXTxO4rNk1WT2lpaWVPREk
- "startup": After TX poweron, no actions to any of the controls, throttle at minimum
- "bind": Capture started while TX is already on and the drone waits in bind mode. During the capture the throttle is swept MIN-MAX-MIN which executes the bind.
- "right stick loop": starting the capture when drone has been bound and the right stick is in bottom left position. During capture moved the stick first up, then right, then down and again left.
- "yaw sweep": starting the capture when drone has been bound and the left stick is in bottom left position. During capture swep the stick to right bottom corner and back.

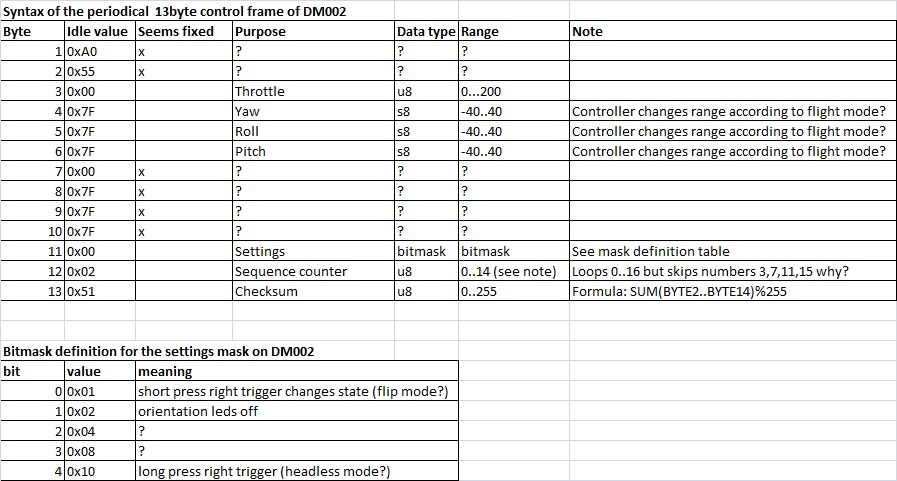

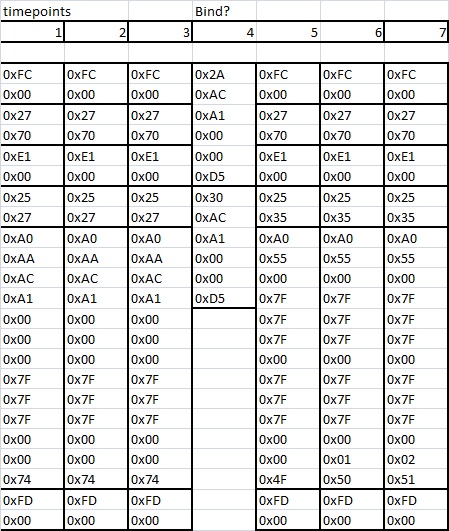

All the captures have also a csv SPI export alternative. Image attached here is what I think happens during the bind:
* When powered on, a combination of 4x2byte frames + 1x13byte frame + 1x2byte frame is sent periodically with fixed content
* Upon bind, the periodical frame is preceded by 2x6byte frames (bind command??)
* After bind, the periodical 4x2 + 1x13 + 1x2 continues but now it has different data and two sequence counters in the end



Looks any familiar? Anything more I could do? I have embedded sw background but quite fresh on the RC and radio side.

My ultimate target is to get the protocol for the multi-protocol DIY TX module github.com/pascallanger/DIY-Multiprotocol-TX-Module and use it with OpenTX. However i think this could be beneficial for deviation also and you seem to have a proper community power to crack this.

Edit: There was an error in my above bind analysis, also fixed the pic

Interresting, it's using the same bind address than CG023 and YD829: 0x26 0xA8 0x67 0x35 0xCC.
Same speed and config: XN297, scramble enabled, 1Mbps, no AA.
But apart from that everything is different:
- packet size is 12 bytes (and not 15)
- packet period is around 6100µs (not 8200 or 4100)
- bind is on channel 0x27
- bind address: 0x26 0xA8 0x67 0x35 0xCC
- bind packet: 0xAA 0xAC 0xA1 0x00 0x00 0x00 0x7F 0x7F 0x7F 0x00 0x00 0x74
- bind starts with 0xAA then TX ID 0xAC 0xA1 0x00 0x00
- bind ends with 0x74 which is a CRC. CRC is the sum of packet[0..10] bytes stored on packet[11].
- switch to normal TX ID is set to 0xAC 0xA1 0x00 0x00 0xD5
- normal packet idle (=no stick input): 0x55 0x00 0x7F 0x7F 0x7F 0x00 0x7F 0x7F 0x7F 0x00 0x00 0x4F
- normal packet[0]=0x55
- normal packet[2]=yaw -> center 0x7F, full left 0x57, full right 0xA7 => not sure if there is a rate mode on this quad which might increase the stick range?
- normal packet[3] and packet[4]= right stick for whatever that means... -> center 0x7F, full left 0x57, full right 0xA7 => not sure if there is a rate mode on this quad which might increase the stick range?
- normal packet[10]=frame counter: 0x00..0x02 (skip 0x03) 0x04..0x06 (skip 0x07) 0x08..0x0A (skip 0x0B) 0x0C..0x0E -> roll over
- normal packet[11]=CRC. CRC is the sum of packet[0..10] bytes stored on packet[11].
- normal channels: 3 times each 0x35 associated to frame 0x00..0x02, 0x39 associated to frame 0x04..0x06, 0x3B associated to frame 0x08..0x0A, 0x3D associated to frame 0x0C..0x0E

That's all from the logs.

Pascal

We need more logs:
- like Yaw sweep L to R on all stick inputs (Throttle, Aileron, Elevator, Rudder)
- need a dump of the special features like flip

After we will need more dumps from different TXs to establish the relation between TX ID and RF channels (if any).

Pascal

Before reading the replies above, i will already post what i have cracked this far (got interested enough + the protocol seems simple).

This comes after reading the replies:

planger:
* Why do you say packet size is 12 as the SPI packet is 13bytes? The first SPI byte does not go in the radio package?
* Otherwise I agree with your findings

goebish/planger:
* My colleague has the identical set so we can try his TX as well for the TX id

other:
* I will try to check how the flight mode affects control ranges
* I will check what the right trigger button actually does (chinese manual is not very clear and I havent yer learnt how to use it). Headless mode and flip are mentioned in the manual.

planger:
* Why do you say packet size is 12 as the SPI packet is 13bytes? The first SPI byte does not go in the radio package?
* Otherwise I agree with your findings

You have to decode the SPI frames... 0xA0 is the XN297 instruction meaning write TX payload = sends everything I'm giving you after.

With that table we have everything to emulate the protocol since we have sticks + features bits.

Sequence counter: Loops 0..16 but skip some values

If you decode the SPI frames, you'll see that the frequency changes each time there is a jump in the sequence.
So basically it's something like this:Note that if you use the above after bind is over you need to set the TX_ADDR, hopping_frequency_no=0 and NRF24L01_WriteReg(NRF24L01_05_RF_CH, hopping_frequency[hopping_frequency_no]); before juming to normal.

Pascal

Protocol for Multi is on github if you want to test: github.com/pascallanger/DIY-Multiprotoco...l/DM002_nrf24l01.ino
For Taranis:
- Custom protocol number = 33
- sub_protocol = 0
- ch5=Flip, ch6=LED, ch7=Headless

Please report.

Pascal

Believe or not, worked at the first try amazing job!

* Tested also leds and flip, both work just fine.
* The pitch and roll channels were mixed when creating model with OpenTX defaults.
* I needed to invert the pitch curve.
* Control gains are quite low so let's find the actual max ranges to be put in the protocol. User can tune the flight mode in the tx side according to preference if it is too "wild".

Is this protocol now hardcoded for my controller ID? What I know already about my colleagues model is that i can bind my TX with his drone and we can also bind two drones to same TX.

Once again THANK YOU, i can finally scrap the plastic TX crap..

* The pitch and roll channels were mixed when creating model with OpenTX defaults.

My bad, I've inverted both channels it in the code... I've written it thinking I need to check later and forgot...
I've also fixed pitch being reversed.
New version on github contains the fixes.

Control gains are quite low so let's find the actual max ranges to be put in the protocol.

In the DM002_nrf24l01.ino source file, you can change these lines:You should decrease 0x57 and increase 0xA7 by the same amount so you are still centered around 0x7F.

Is this protocol now hardcoded for my controller ID?

Yes it is.
Can you try to change the values AC and A1 in the lines below to see if it still works or not?
Pascal

Control gains are quite low so let's find the actual max ranges to be put in the protocol.

It should be the same on the original TX, can you confirm?
If modifying the end points as proposed earlier does not give anything, there is still something to try out.
I'm thinking, might be wrong and you need to test, that the second part of the payload with the 0x7F are in fact the trims. So we could move the trims at the same time as moving the main channels to increase the range which is done on some models.

Pascal

goebish wrote: I'll ask SebyDocky to post a capture of his Tx as well.

I tried but I was not able to solder probes .... on the chips pads My eyes are too old now

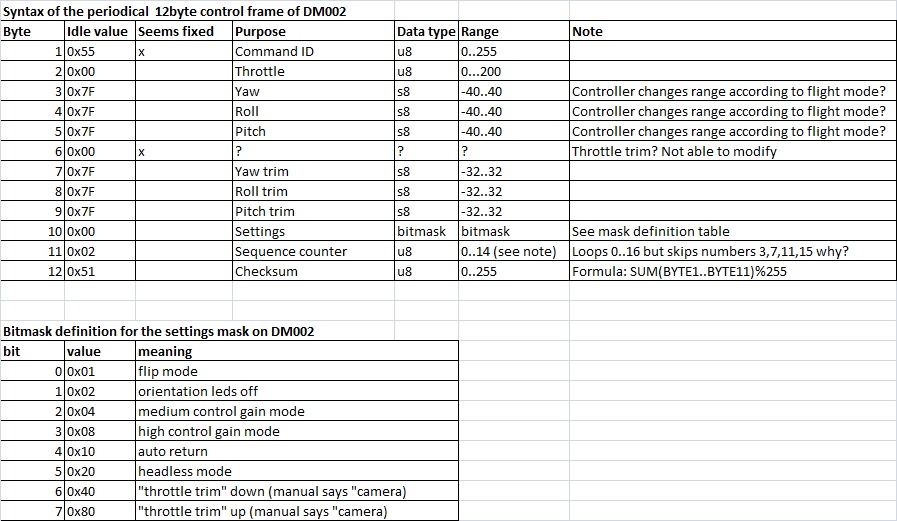

New findings:
* The control ranges -40..40 were true also in the "gain modes" 2 and 3 which bring more sensitivity to the Yaw,Pitch,Roll channels
* New bitmask entries found for the "gain modes". For the protocol, should we hardcode a mode or let the user select it? The control range is so small that maybe hardcoding the gain 3 will lose resolution if user wants to calm down the drone by restricting the range in his TX.
* Headless mode was not the right trigger button, instead it activates by pressing the right stick (fixed to the bitmask). Right trigger longpress was instead some kind of auto return mode.
* The trims were truly carried as separate values in the frame. Other channels than throttle had them.
* "throttle trim switch" on the TX controls two bits in the mask. The manual says this switch is for "camera" but cannot see any other effect than making the drone leds blink in case one of these bits are up.

Updated spec attached. Will post again as soon as we get the TX id ripped from the other TX and maybe some other tests.

TXID from my TX: (0xAC 0xA1)
TXID from the colleague's TX: (0x47 0x93)
Otherwise bind frame stays the same.

Would this pretty much imply it is just a random number? Should I just try few options and additionally the special cases 0x00 0x00 and 0xFF 0xFF?

I assume the freq info is in some of those 2byte frames then.. the capture from other TX is found in the same link drive.google.com/drive/folders/0BxykaYXTxO4rNk1WT2lpaWVPREk with name other_tx_8_MHz_40_M_Samples

Package number for bind frame: 1465
