29 Dec 2016 17:30 #57334 by rennerm
Devo 12S 4in1 Modul was created by rennerm
Hallo i am new here and my english is not very good but i had a problem with my devo 12s .
i install the 4in1 Modul like it is shown from vlad_vy
7105 = TMS pad (A13)
2500 = TCK pad (A14)
2401 = B3
i changed everything in hardware.ini but when i put on the receiver there is a massage

Modul error
Missing Moduls
cc2500
a7105

Can anyone help me

Thanks

Please Log in or Create an account to join the conversation.

More
29 Dec 2016 17:57 #57337 by rennerm
Replied by rennerm on topic Devo 12S 4in1 Modul
I make 2 litle videos on youtube



and

Please Log in or Create an account to join the conversation.

More
02 Jan 2017 07:35 - 02 Jan 2017 07:47 #57457 by Wene001
Replied by Wene001 on topic Devo 12S 4in1 Modul
Installation looks correct.
Shorts on the downside of the 4in1?

Please show your hardware.ini
Last edit: 02 Jan 2017 07:47 by Wene001.

Please Log in or Create an account to join the conversation.

More
02 Jan 2017 10:45 #57463 by rennerm
Replied by rennerm on topic Devo 12S 4in1 Modul
Hello

I made a video.
I have now soldered a module on B3 and one on A1 so the 3 of the 4 modules work only the 4th module does not matter whether it is soldering to A13 or A14.
If I the 4th module at B3 or A1 soldered works this also.
No idea why the A13 or A14 does not go

Please Log in or Create an account to join the conversation.

More
03 Jan 2017 13:32 - 03 Jan 2017 13:51 #57497 by Wene001
Replied by Wene001 on topic Devo 12S 4in1 Modul
Can you check the connections of A13 and A14 to the prozessor pins with a multimeter?
Check if they are eventualy shortend together

If TMS and TCK are dead you can try to find an other unused Prozessor Pin
www.deviationtx.com/wiki/hardware/devo12
I would try GPIO E2
This is a little bit easier to solder as this is Pin1 of the Prozessor as the datasheet www.st.com/internet/mcu/product/164495.jsp says
Last edit: 03 Jan 2017 13:51 by Wene001.

Please Log in or Create an account to join the conversation.

More
05 Jan 2017 17:08 #57558 by HappyHarry
Replied by HappyHarry on topic Devo 12S 4in1 Modul
have you tried using A13, A14 and B3? as i seem to remember (i might be wrong though :/ ) that if using tms and tck that A13 must be used first and then A14, and not to use A14 if A13 isn't also being used. also you don't need to uncomment the enable-cyrf6936 = B12 line as it is using the stock location, so i'd comment that line out again and try that

Please Log in or Create an account to join the conversation.

More
07 Jan 2017 11:00 #57615 by rennerm
Replied by rennerm on topic Devo 12S 4in1 Modul
Hello

With the pins A13, A14 and B3 that was my first attempt but that did not work.
Then 2 modules do not work.
Where can I find this GPIOE2 pin and how do I activate it then in the hardware.ini?
The lines to pin 13 and 14 are OK but no function

Please Log in or Create an account to join the conversation.

More
07 Jan 2017 11:12 - 07 Jan 2017 11:15 #57618 by Wene001
Replied by Wene001 on topic Devo 12S 4in1 Modul


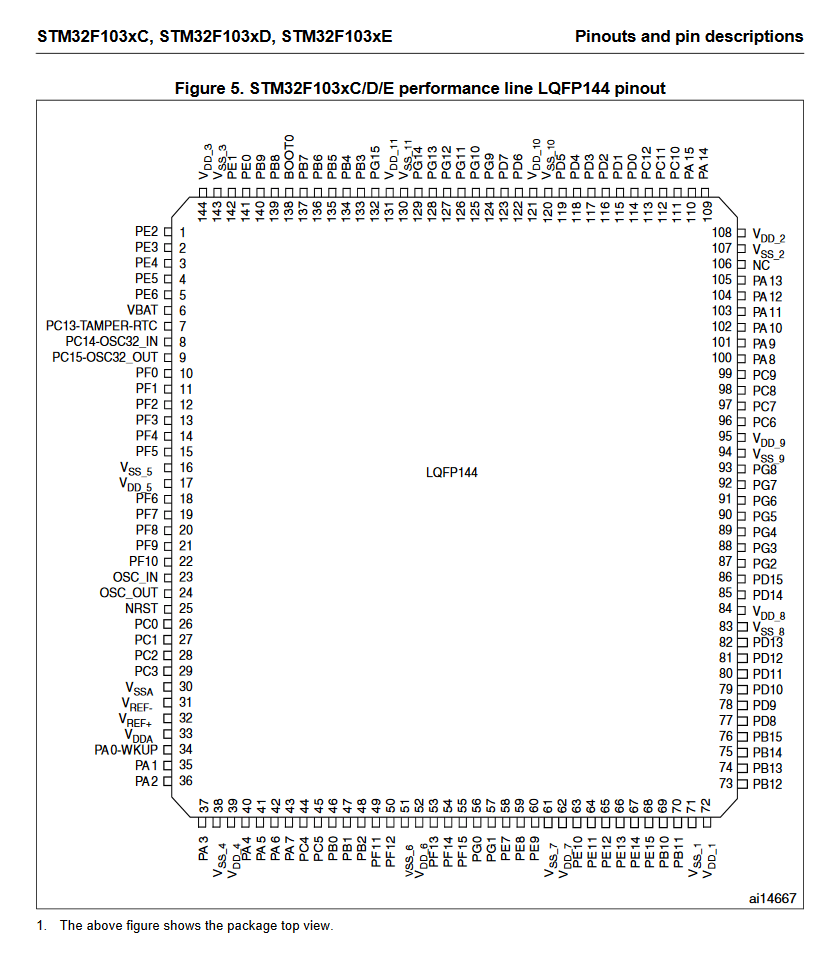

GPIO E2 is Pin1 on the prozessor

In the hardware.ini it is called E2

No guarantee, i did not test this
Attachments:
Last edit: 07 Jan 2017 11:15 by Wene001.

Please Log in or Create an account to join the conversation.

More
07 Jan 2017 11:44 #57620 by rennerm
Replied by rennerm on topic Devo 12S 4in1 Modul
Is this the correct Pin

Please Log in or Create an account to join the conversation.

More
07 Jan 2017 12:08 - 07 Jan 2017 12:14 #57622 by Wene001
Replied by Wene001 on topic Devo 12S 4in1 Modul
edit...unsure
Last edit: 07 Jan 2017 12:14 by Wene001.

Please Log in or Create an account to join the conversation.

More
07 Jan 2017 12:14 #57623 by rennerm
Replied by rennerm on topic Devo 12S 4in1 Modul
There are 3 circles on the processor.
2 larger and one smaller.
Since where the needle points towards is the smaller circle is this wrong?
The two other circles are the same size

Please Log in or Create an account to join the conversation.

More
07 Jan 2017 12:19 #57624 by Wene001
Replied by Wene001 on topic Devo 12S 4in1 Modul

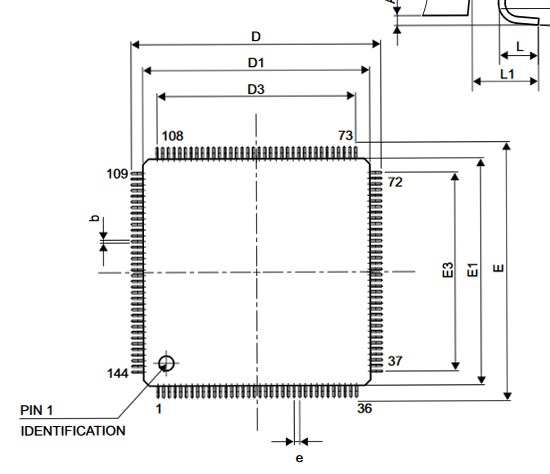

Locate the pins A13 and A14

Attachments:

Please Log in or Create an account to join the conversation.

More
07 Jan 2017 12:38 #57625 by Wene001
Replied by Wene001 on topic Devo 12S 4in1 Modul
Verified....
You were right with Pin1 in the last video

Please Log in or Create an account to join the conversation.

More
07 Jan 2017 13:10 #57627 by rennerm
Replied by rennerm on topic Devo 12S 4in1 Modul
Ok i locate Pin A13 and A14 and it is right
I soldered the wire to Pin 1 ( E2 ) and change hardware.ini and everything is supper

Thank You for your great help
Thanks a lot

Michael

Please Log in or Create an account to join the conversation.

More
01 Apr 2017 04:13 #61001 by magic_marty
Replied by magic_marty on topic Devo 12S 4in1 Modul

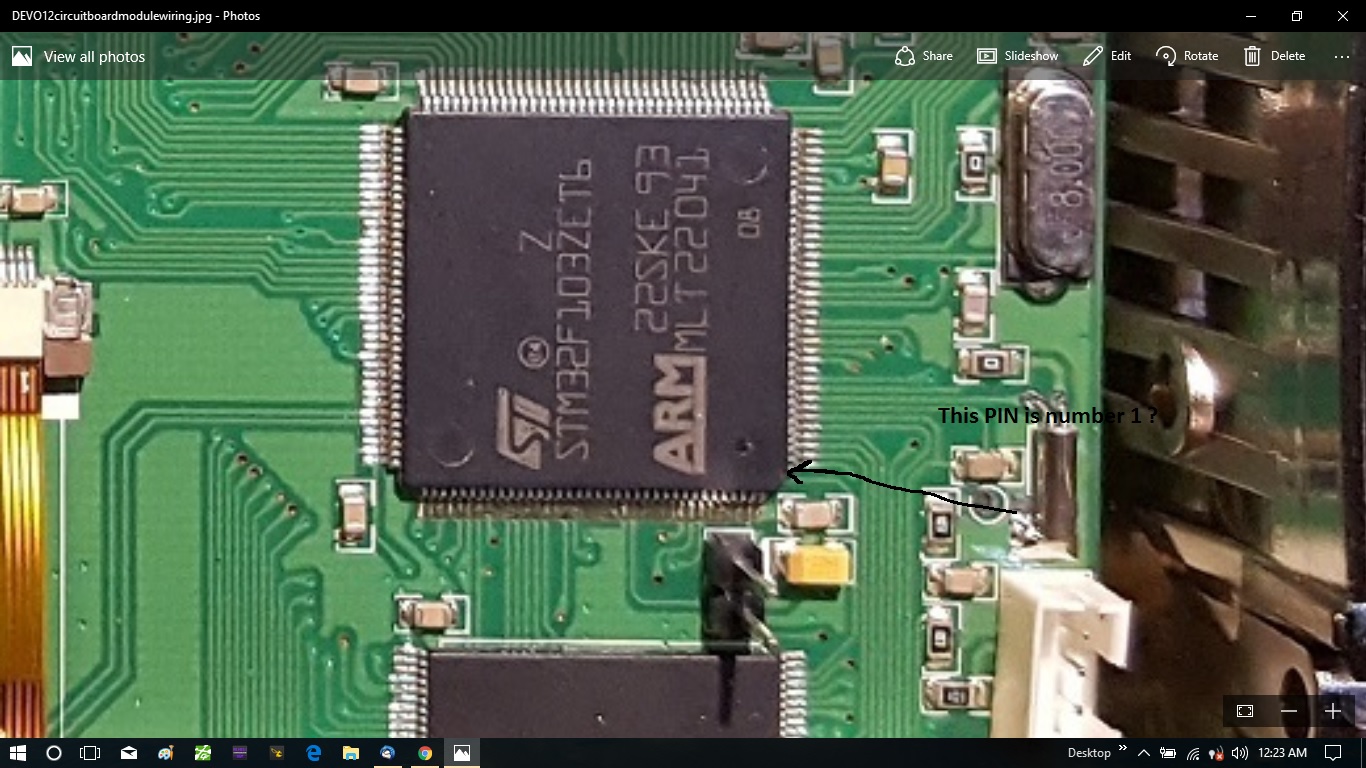

Have the same problem on my Devo12 the tms/tck are dead i need to solder to E2 Pin1 but i need to be sure which pin it is ..Is there a picture of the processor on the main board showing exactly which pin it is? I know it is near the dot on the processor but not positive which side of the dot is the correct pin...It ether pin 1 or pin 144 and i don't want to make a mistake and solder to pin144

Please Log in or Create an account to join the conversation.

More
01 Apr 2017 04:27 #61002 by magic_marty
Replied by magic_marty on topic Devo 12S 4in1 Modul
I attach a picture showing what i believe is pin one could somebody please confirm i am correct?
Attachments:

Please Log in or Create an account to join the conversation.

More
01 Apr 2017 07:04 #61003 by M8A4X
Replied by M8A4X on topic Devo 12S 4in1 Modul
Hi magic_marty!

Yes, that is the correct Pin 1 which equals E2.

Please Log in or Create an account to join the conversation.

More
01 Apr 2017 09:04 #61006 by magic_marty
Replied by magic_marty on topic Devo 12S 4in1 Modul

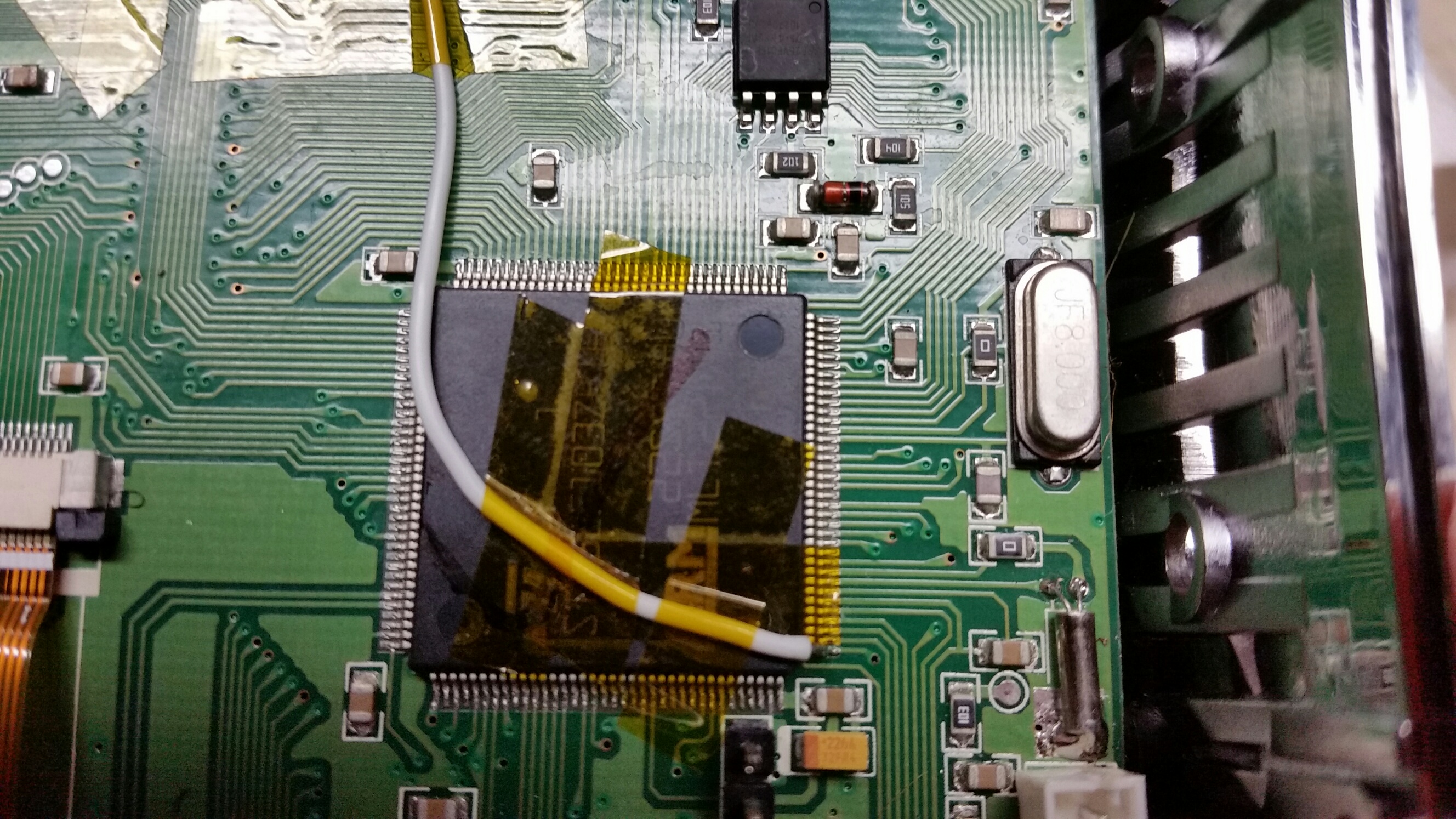

Thank you for replying i got a wire soldered to the pin and no longer have the missing module error ...
Attachments:

Please Log in or Create an account to join the conversation.

More
01 Apr 2017 15:03 #61023 by M8A4X
Replied by M8A4X on topic Devo 12S 4in1 Modul
Glad to hear that! Those CPU legs are not the easiest ones to solder to... But you solved the problem pretty good!!

What keeps me wondering is the fact that there are some Devo units with TMS, TCK connections from the CPU to the solder points that have no connection...

Please Log in or Create an account to join the conversation.

More
01 Apr 2017 18:47 #61029 by magic_marty
Replied by magic_marty on topic Devo 12S 4in1 Modul
That's how i ended up with 2 12ch devos the first one never accept any modules so i shelved it and got a 12s which worked fine adding modules...Since the then the A1 and B3 pads were discovered ...Only thing i think of as to why some tms/tck pins do and some don't work is it must be that superb chinese quality control we often read about..lol
