Question - Adding Pololu 3.3 Vreg to my 7E

More
28 Jan 2017 20:01 - 28 Jan 2017 21:14 #58489 by StuartAmbient
Question - Adding Pololu 3.3 Vreg to my 7E was created by StuartAmbient

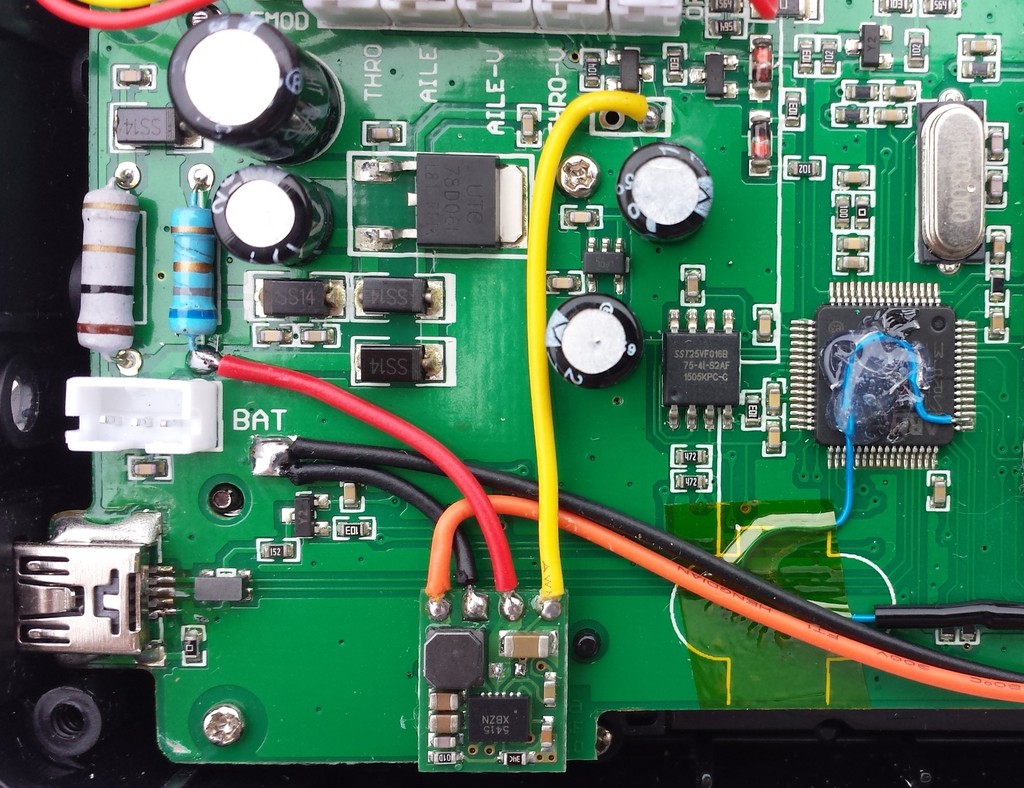

This pololu wiring was posted by Robpur a while back. He scraped some solder resist off for ground (under the label Bat). I'm wondering if I could just attach the ground from the pololu to the programming header ground. Just want to know if anyone has tried that or would know if that was okay.
Attachments:
Last edit: 28 Jan 2017 21:14 by StuartAmbient. Reason: typo

Please Log in or Create an account to join the conversation.

More
28 Jan 2017 22:02 - 28 Jan 2017 22:15 #58501 by StuartAmbient
Replied by StuartAmbient on topic Question - Adding Pololu 3.3 Vreg to my 7E

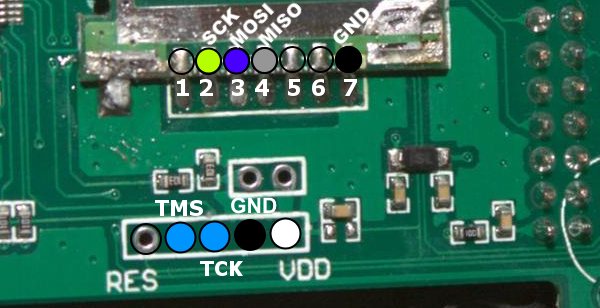

There is continuity between the debug gnd and the gnd on the 3 pin header (next to the label Bat). I think I should be okay grounding Pololu to the debug gnd. The CYRF module gnd is not on the same plane.
Last edit: 28 Jan 2017 22:15 by StuartAmbient. Reason: add

Please Log in or Create an account to join the conversation.

More
28 Jan 2017 22:37 #58505 by HappyHarry
Replied by HappyHarry on topic Question - Adding Pololu 3.3 Vreg to my 7E
gnd is shared throughout bud, so you'll be fine using the header or any other gnd position on the pcb

Please Log in or Create an account to join the conversation.

More
29 Jan 2017 00:56 #58513 by StuartAmbient
Replied by StuartAmbient on topic Question - Adding Pololu 3.3 Vreg to my 7E
Thank you sir, again! ;)

Please Log in or Create an account to join the conversation.
