by darthnugget
Devo 7e part identification assistance was created by darthnugget

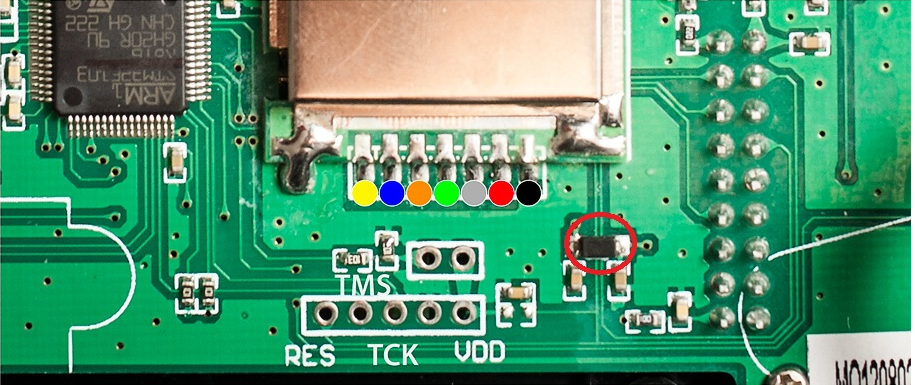

Well, I did my first mod and it seems I let the smoke out of a part on the Devo 7e board. I have circled it here in the picture. What part is this and where can I buy a new one?
On mine it has a burn mark right in the middle so I cant see what letters are on it. Your help would be appreciated.
On mine it has a burn mark right in the middle so I cant see what letters are on it. Your help would be appreciated.
Please Log in or Create an account to join the conversation.
- darthnugget
- Topic Author
- Offline
Less
More
- Posts: 29
05 Jun 2017 21:21 #62842
by darthnugget
Replied by darthnugget on topic Devo 7e part identification assistance
After looking around online I think the part is a 1N5819W diode or possibly a B5819W diode. I dont have a good enough image that shows the markings on it other than the "SL" I can make out on some images in this forum.
Please Log in or Create an account to join the conversation.
- Gerry
- Offline
- Bbrad
Less
More
- Posts: 194
07 Jun 2017 00:34 #62861
by Gerry
Devo 7e A7105 NRF24L01 CC2500 2x3 way & voice, Devo 12e 4 in 1 & voice.
FFS (Forever Fixing Stuff)
Replied by Gerry on topic Devo 7e part identification assistance

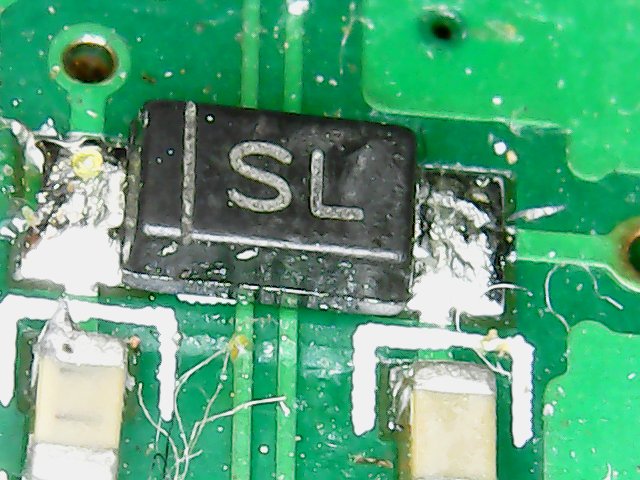

Close up of the component you are looking for
Devo 7e A7105 NRF24L01 CC2500 2x3 way & voice, Devo 12e 4 in 1 & voice.
FFS (Forever Fixing Stuff)
Please Log in or Create an account to join the conversation.
- darthnugget
- Topic Author
- Offline
Less
More
- Posts: 29
07 Jun 2017 06:26 #62868
by darthnugget
Replied by darthnugget on topic Devo 7e part identification assistance
Thank you. I think it is a Schottky Diode B5819W so I ordered a couple for a few bucks. If anyone else frys theirs let me know I will have some spares. Should be here Friday and hope it works.
Any idea what this thing is for? I know without it the CYrf module doesn't power up. Looking at the traces it is connecting to that larger trace that I know connects to ground for the CYRF module pin 7.
Any idea what this thing is for? I know without it the CYrf module doesn't power up. Looking at the traces it is connecting to that larger trace that I know connects to ground for the CYRF module pin 7.
Please Log in or Create an account to join the conversation.
- darthnugget
- Topic Author
- Offline
Less
More
- Posts: 29
07 Jun 2017 06:46 #62869
by darthnugget
Replied by darthnugget on topic Devo 7e part identification assistance
Would you be able to measure the voltage on either side of the diode for me? I want to confirm the drop it makes when powered with the 4x aa batteries. I have seen a diagram that shows the anode side should be +5v but there is no mention of the cathode side (side with line).
Please Log in or Create an account to join the conversation.
- Gerry
- Offline
- Bbrad
Less
More
- Posts: 194
07 Jun 2017 07:41 #62870
by Gerry
Devo 7e A7105 NRF24L01 CC2500 2x3 way & voice, Devo 12e 4 in 1 & voice.
FFS (Forever Fixing Stuff)
Replied by Gerry on topic Devo 7e part identification assistance
On the side with the line I get 4.6v, on the other side I get 4.87v. Battery is at 5.3v
Devo 7e A7105 NRF24L01 CC2500 2x3 way & voice, Devo 12e 4 in 1 & voice.
FFS (Forever Fixing Stuff)
Please Log in or Create an account to join the conversation.
- darthnugget
- Topic Author
- Offline
Less
More
- Posts: 29
08 Jun 2017 04:24 #62883
by darthnugget
Replied by darthnugget on topic Devo 7e part identification assistance
Thanks!
Please Log in or Create an account to join the conversation.
