16 Feb 2018 18:35 - 25 Feb 2018 10:19 #67540 by vlad_vy

Replied by vlad_vy on topic Ultimate Devo F12E (devof12e-XMS) builds

devof7-XMS build with added support for Microchip SST26VF032B, Macronix MX25L3233F and Adesto AT25DF321A (SST26VFxxxB, MX25Lxxxxx and AT25DFxx1A).

(16.02.2018)
File deleted, now it's at Nightly Builds.

Last edit: 25 Feb 2018 10:19 by vlad_vy.

Please Log in or Create an account to join the conversation.

Bisky
Offline

16 Feb 2018 20:15 #67543 by Bisky

Replied by Bisky on topic Ultimate Devo F12E (devof12e-XMS) builds

vlad_vy wrote: devof7-XMS build with support for SST26VF032B:

(16.02.2018)

Attachment not found

You are a wizard! Thank you so much!

Ultimate 7E + range mod + 3x2 switch mod + 3in1 module
Devo F7 XMS + 4in1 module

Please Log in or Create an account to join the conversation.

Bisky
Offline

16 Feb 2018 20:39 #67544 by Bisky

Replied by Bisky on topic Ultimate Devo F12E (devof12e-XMS) builds

Proces description:

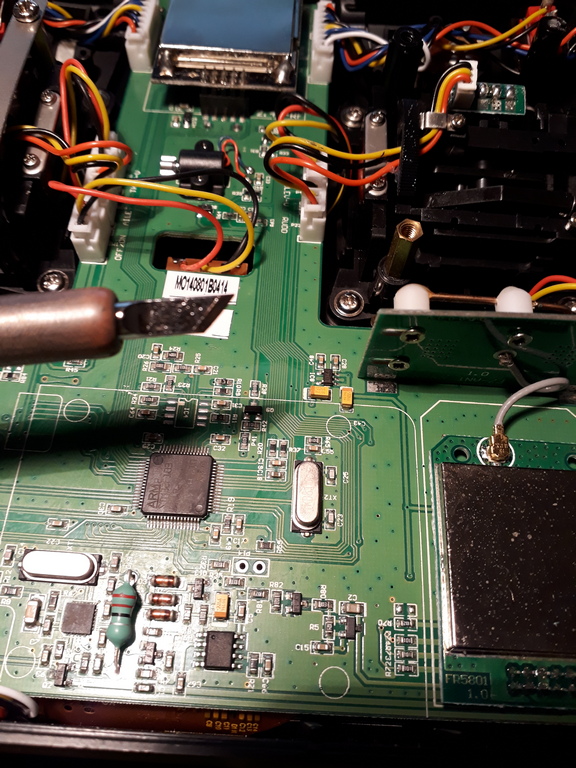

1. I use this kind of tip

2. put extra solder on bout sides and heat

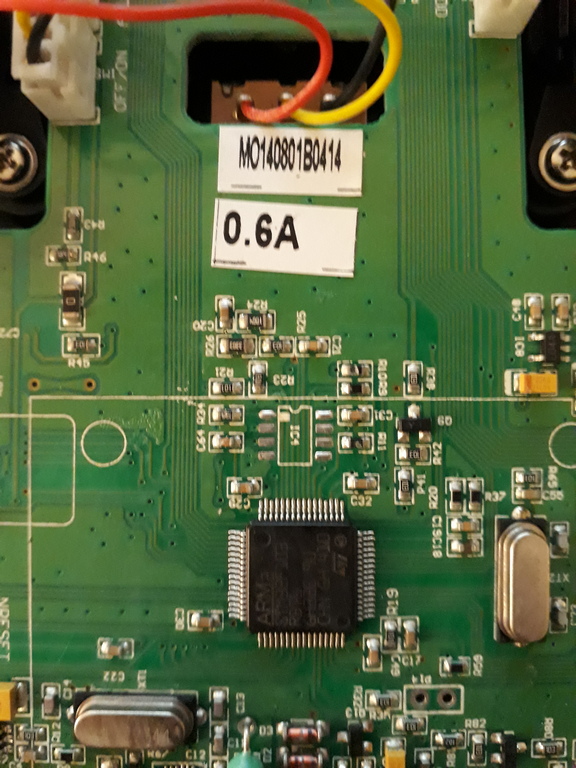

3. gentle use tweezers and move the flash
4 clean contacts with de soldering wick

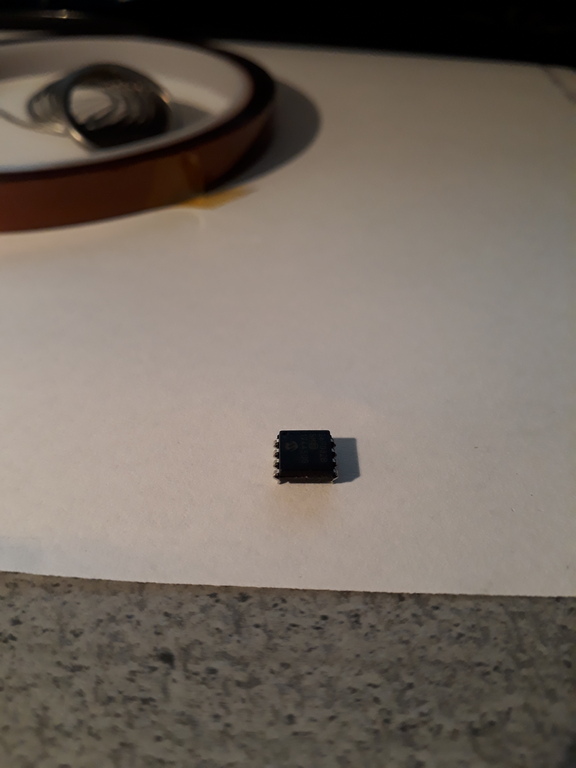

5. bend legs on new flash

6. ad solder to pin 1 and position the flash, take your time!
7. If the position of flash is ok solder pin 8
8. solder the other pins and double check with a magnifying glass

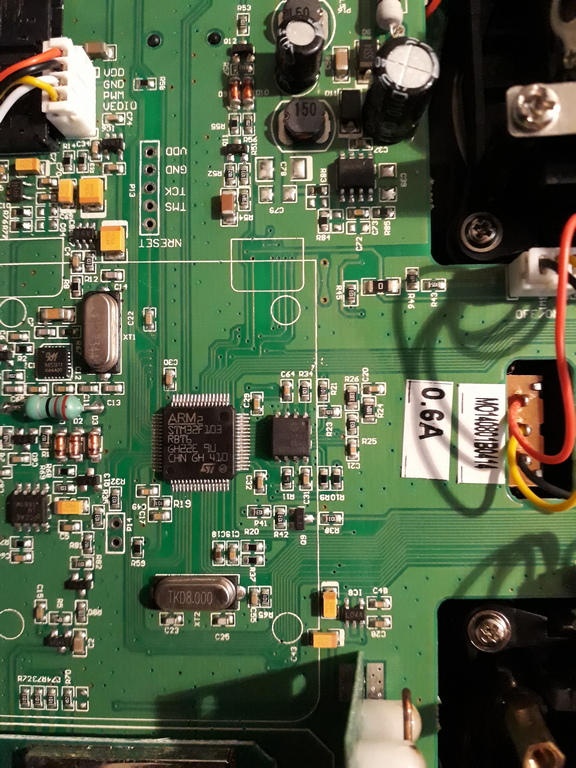

9. clean with isopropanol alcohol and admire the work

10.flash with DfuSe USB Upgrade, format usb, copy files
11. Thank vlad_vy

Ultimate 7E + range mod + 3x2 switch mod + 3in1 module
Devo F7 XMS + 4in1 module

Please Log in or Create an account to join the conversation.

YARIMbe
Offline

16 Feb 2018 23:21 #67547 by YARIMbe

Replied by YARIMbe on topic Ultimate Devo F12E (devof12e-XMS) builds

vlad do you think we could possibly add external osd for the f7?

Please Log in or Create an account to join the conversation.

vlad_vy
Topic Author
Offline

17 Feb 2018 06:36 #67553 by vlad_vy

Replied by vlad_vy on topic Ultimate Devo F12E (devof12e-XMS) builds

What do you have in mind? At present time you can use the "External OSD" page. At "Main page config" select "External OSD" page for "Menu 1" or other quick pages. At the main page you can call empty "External OSD" page by long press "DN" or "UP", and back to main page.

Please Log in or Create an account to join the conversation.

vlad_vy
Topic Author
Offline

17 Feb 2018 06:40 #67554 by vlad_vy

Replied by vlad_vy on topic Ultimate Devo F12E (devof12e-XMS) builds

Bisky,

can you confirm that you can save Tx and model settings?

Please Log in or Create an account to join the conversation.

Bisky
Offline

17 Feb 2018 07:32 #67556 by Bisky

Replied by Bisky on topic Ultimate Devo F12E (devof12e-XMS) builds

Yes saving is working, I tried binding DSMX it worked, changed model name is still present and calibrated sticks and changed mode. All things stay after switching of and back on.

Ultimate 7E + range mod + 3x2 switch mod + 3in1 module
Devo F7 XMS + 4in1 module

Please Log in or Create an account to join the conversation.

YARIMbe
Offline

17 Feb 2018 10:41 #67557 by YARIMbe

Replied by YARIMbe on topic Ultimate Devo F12E (devof12e-XMS) builds

well, we know that the LCD on the f7 can't show some of the symbols because of the video overlay chip (IA9211),
so the menus and the mixers are not the same,
I thought maybe there is a way to try to send the menus over a different chip (possibly like this guy did nootropicdesign.com/projectlab/2011/05/20/overlay-gps-on-video/ )

sound possible?

Please Log in or Create an account to join the conversation.

Bisky
Offline

17 Feb 2018 20:26 #67561 by Bisky

Replied by Bisky on topic Ultimate Devo F12E (devof12e-XMS) builds

With Devo 7e we went for a bigger ARM with more space. Devo F7 ARM is the same as Devo 7e, am I right?

Ultimate 7E + range mod + 3x2 switch mod + 3in1 module
Devo F7 XMS + 4in1 module

Please Log in or Create an account to join the conversation.

vlad_vy
Topic Author
Offline

20 Feb 2018 16:40 #67633 by vlad_vy

Replied by vlad_vy on topic Ultimate Devo F12E (devof12e-XMS) builds

The test board based on Jumper T8SG is assembled. Tested flash memory chips: Macronix MX25L3205D, Adesto AT25DF321A and Winbond W25Q16BV (just in case).

So, now I can add to flash memory type auto detection: Microchip SST26VFxxxB, Macronix MX25Lxxxxx and Adesto AT25DFxx1A.

Pull request will be placed.

Please Log in or Create an account to join the conversation.

Bisky
Offline

20 Feb 2018 17:39 #67635 by Bisky

Replied by Bisky on topic Ultimate Devo F12E (devof12e-XMS) builds

Good job!

This hack wil work for all devo transmitters?

Ultimate 7E + range mod + 3x2 switch mod + 3in1 module
Devo F7 XMS + 4in1 module

Please Log in or Create an account to join the conversation.

vlad_vy
Topic Author
Offline

20 Feb 2018 17:45 #67637 by vlad_vy

Replied by vlad_vy on topic Ultimate Devo F12E (devof12e-XMS) builds

It possible, but at present time it used for devof-XMS series only.

Please Log in or Create an account to join the conversation.

vlad_vy
Topic Author
Offline

21 Feb 2018 05:22 - 21 Feb 2018 05:58 #67645 by vlad_vy

Replied by vlad_vy on topic Ultimate Devo F12E (devof12e-XMS) builds

By the way, I can build "devo12-XMS" if anybody like to use it with easy accessible full filesystem (4MB) and without need to flash "devo12-lib.dfu" file. You will need replace the flash memory chip SST25VF016B to SST25VF032B or any other supported 32Mbit flash memory chip.

Last edit: 21 Feb 2018 05:58 by vlad_vy.

Please Log in or Create an account to join the conversation.

RubenRC
Offline

21 Feb 2018 06:40 #67649 by RubenRC

Replied by RubenRC on topic Ultimate Devo F12E (devof12e-XMS) builds

Hey vald_vy can you add that for me? I use the SST25VF032B chip on my F12E & F7.

Please Log in or Create an account to join the conversation.

vlad_vy
Topic Author
Offline

21 Feb 2018 06:50 #67651 by vlad_vy

Replied by vlad_vy on topic Ultimate Devo F12E (devof12e-XMS) builds

What to add? The "devo12-XMS"? What build? v5.0.0 or Nightly builds?

Please Log in or Create an account to join the conversation.

RubenRC
Offline

21 Feb 2018 06:56 - 21 Feb 2018 06:58 #67652 by RubenRC

Replied by RubenRC on topic Ultimate Devo F12E (devof12e-XMS) builds

Yes build "devo12-XMS" nightly. I'd like to keep getting updates.

Last edit: 21 Feb 2018 06:58 by RubenRC.

Please Log in or Create an account to join the conversation.

vlad_vy
Topic Author
Offline

21 Feb 2018 07:22 - 21 Feb 2018 16:49 #67653 by vlad_vy

Replied by vlad_vy on topic Ultimate Devo F12E (devof12e-XMS) builds

It's not tested at all. I can test it today with my Devo 12s and SST25VF032B chip. Probably it can be even backward compatible with Walkera firmware, if it will use SST25VF032B chip.

I need slightly change devo12 "lcd.c" to build it.

#ifdef MEDIA_DRIVE
    extern void PARFlash_Init();
#endif

and

#ifdef MEDIA_DRIVE
    PARFlash_Init();
#endif

Test build "devo12-XMS" based on nightly builds:
(21-02-2018)

File deleted, see below...

Last edit: 21 Feb 2018 16:49 by vlad_vy.

Please Log in or Create an account to join the conversation.

vlad_vy
Topic Author
Offline

21 Feb 2018 15:27 - 21 Feb 2018 15:40 #67662 by vlad_vy

Replied by vlad_vy on topic Ultimate Devo F12E (devof12e-XMS) builds

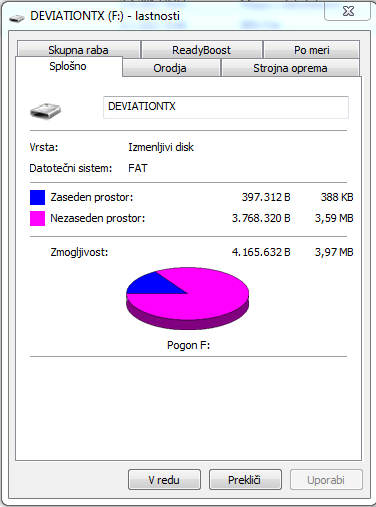

Tested Devo 12s with installed SST25VF032B flash memory chip:

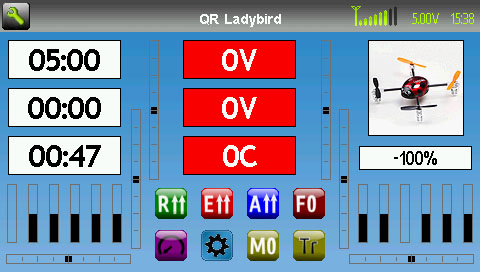

1. New "devo12-XMS" firmware = OK, USB drive capacity = 4MB, but there is one drawback - when page changed the screen redraw is noticeably slower (devo12 background image "backgrnd.bmp" is quite big, and serial flash is a little slow for that).
2. Walkera v1.5A firmware = OK, transmitter settings can be saved, model settings can be saved.
3. Normal "devo12" firmware with library file "devo12-lib.dfu" flashed = OK, USB drive capacity = 2MB.

So, with SST25VF032B flash memory chip installed Devo 12s is compatible with ANY firmware.

Last edit: 21 Feb 2018 15:40 by vlad_vy.

Please Log in or Create an account to join the conversation.

FDR
Offline

21 Feb 2018 15:53 #67663 by FDR

Replied by FDR on topic Ultimate Devo F12E (devof12e-XMS) builds

Nice!
Probably we should play with a drawn background, or at least use a one pixel wide image and stretch that...

Please Log in or Create an account to join the conversation.

vlad_vy
Topic Author
Offline

21 Feb 2018 16:15 - 22 Feb 2018 14:39 #67665 by vlad_vy

Replied by vlad_vy on topic Ultimate Devo F12E (devof12e-XMS) builds

I think for devo12-XMS Nightly Builds I need more work, since I missed extended audio changes.

Corrected build:
"devo12-XMS" based on nightly builds:
(21-02-2018)

File deleted, see below...

Last edit: 22 Feb 2018 14:39 by vlad_vy.

Please Log in or Create an account to join the conversation.
