Walkera V450D01/D03 - Standard Settings

• Throttle hold on the RUDD D/R switch.
• 7 Point Throttle and Pitch Curves.
• TX Power=100mW
• Channels=7
• Protocol=DEVO
• No Fixed ID
• Stick Mode 2
If you need Stick Mode 1, 3, or 4 load the model into your transmitter then change the Stick Mode in the transmitter settings.



Model 18 is for deviation firmware v4 and the DEVO 6/6S/8/8S/10/12/12S.

* This model will not work for deviation firmware v2.1 or v3.

Fixed ID

My model does not use a Fixed ID.
If you used a Fixed ID with the original Walkera firmware you must clear the Fixed ID in the Receiver with the Bind Plug.
If you don't clear the Fixed ID the model will not bind.

If you want to use a Fixed ID you can enter the same Fixed ID you had for the original Walkera firmware.

Example: Your original Walkera firmware Fixed ID was: 123456

Assign the Deviation Fixed ID: 123456

You can also assign any Fixed ID that you want to use. You don't have to use the original Walkera firmware Fixed ID. Clear the Fixed ID in the Receiver with the Bind Plug then assign any Fixed ID that you want to use.




Throttle Curve

Normal: Linear Curve

ST-1: V Shaped Throttle Curve

ST-2: 100% Flat Across


Throttle Hold is active on RUDD D/R switch




Pitch Curve

Normal: -3* negative pitch. Zero degrees pitch at mid stick.

ST-1: Full +/- 3D pitch curve. Zero degrees pitch at mid stick.

ST-2: Full +/- 3D pitch curve. Zero degrees pitch at mid stick.



Gyro Gain

Set to 60% for Normal and Stunt modes. This value is equal to the Walkera firmware value of 80% gyro gain.




DR/EXPO

Adjust D/R and EXPO to your personal preference.


Switch Position

0- ELEV D/R = 70% EXP +30%

0- AILE D/R = 70% EXP +30%

RUDD D/R = 100% EXP LIN



Switch Position

1- ELEV D/R = 100% EXP +30%

1- AILE D/R = 100% EXP +30%

RUDD D/R = 100% EXP LIN






Download the Configuration Settings File.

Right click the "model.ini " and select "Save Target As" or "Save Link As" depending if you are using IE or Firefox.

Install the configuration settings file into your models folder (See my How to video below).

This will over-right the current file so make sure that model slot doesn’t
have a model being used in it. If it does rename the configuration settings file
to another number that you have free.

Example: The file you downloaded is named model5 so change the “5" to another slot
number that you don’t have a model setup for. If you have model slot 6 open rename the file to model6





How to Import/Export Deviation Firmware Models








.

Hi tom
firstly,I want to thank you for your dedication and tutorials that have helped me to be able to configure the models.
but I would like to ask you one thing, I could not get this model correctly bind with the original receiver of walkera.

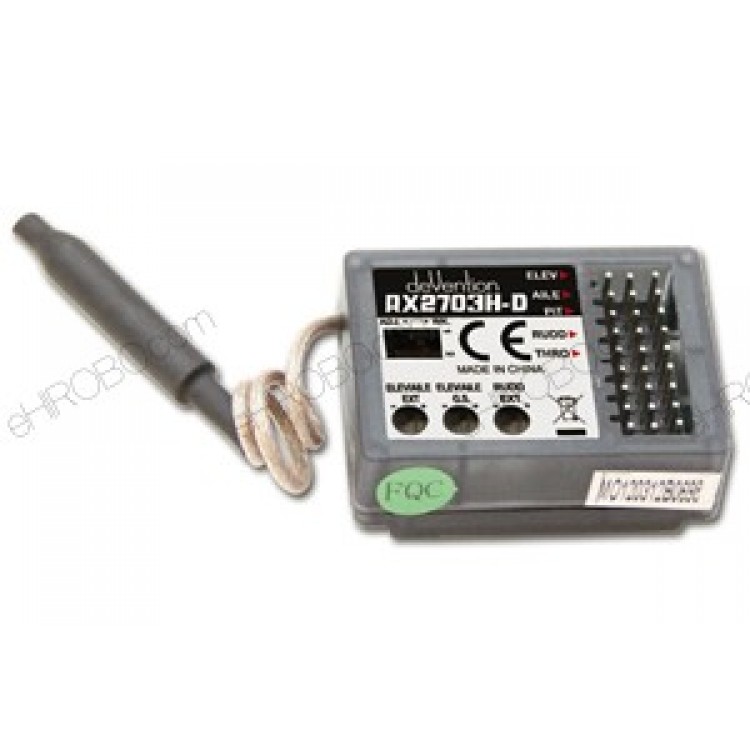

but I can not bind it to any way, you know this model has v450d03 FBL Receiver: RX-2703H-D, and i don't know what protocol i must to put for binding

I appreciate if you can help me and thank you very much for your attention.
Greetings.

hello again tom,
I've already solved out and finally I managed to bind It successfully, and Now work all right. the problem was that to get your settings in the menu of protocol , It was a bind code(667766),only a restored It and new one was binding.

thanks for your contribution.

Best regards .

Hi,

Your welcome.
That's good you got it working.
I was going to say to clear the fixed ID in the receiver with the bind plug.
All my models don't use any fixed ID. I leave the choice up to each person if they want to use a fixed ID or not.

I'm using RX1002-W and Copter X cx-3x1000 fbl gyro with a DEVO10-W.

I try using this template to control my HK450 FBL and i think all is quite ok, but i can't find a way to switch the AVCS to NORMAL mode on my Gyro.

I saw this post, but i saw nothing that can help me.
How to setup FBL

Thank you.

I have the gyro gain set to 60% for Normal and Stunt modes. This value is equal to the Walkera firmware value of 80% gyro gain.
If you want to switch the AVCS to NORMAL mode you would have to change the settings below. You would need to assign the gyro values to a switch.
I don't have your helicopter so I can't tell you the values you would need but you could try different values until you get the ones that will work for you.


[channel7]
template=complex
[mixer]
src=Ch7
dest=Ch7
scalar=60
curvetype=fixed
[mixer]
src=Ch7
dest=Ch7
switch=FMODE1
scalar=60
curvetype=fixed
[mixer]
src=Ch7
dest=Ch7
switch=FMODE2
scalar=60
curvetype=fixed

Thank you for your help Tom Z. I arrived in the meantime
I've open a new thread for my helicopter here

спасибо большое за информацию, вы меня просто спасли. но у меня devo 6s, помогите настроить hold, на переключатель gear. где и что поменять? заранее благодарю.
