The New Hubsans
- SeByDocKy
-
- Offline
Less
More
08 Jan 2016 08:48 #41497
by SeByDocKy
Replied by SeByDocKy on topic The New Hubsans
I just tried the new Hubsan protocol variation with the H107D+ via the last Hexfet test combo. It works fine. Just a remark. To turn on/off camera, usually, I was using the lower throttle trim. It's working but I need to hold it down to continue recording... Is it a normal behaviour ?
Please Log in or Create an account to join the conversation.
- delta75
-
- Offline
Less
More
- Posts: 51
08 Jan 2016 09:39 #41498
by delta75
Replied by delta75 on topic The New Hubsans
H501s use A7105 chip
Please Log in or Create an account to join the conversation.
- goebish
-
- Offline
- I Void Warranties
Less
More
- Posts: 2631
08 Jan 2016 10:40 - 08 Jan 2016 10:55 #41500
by goebish
Replied by goebish on topic The New Hubsans

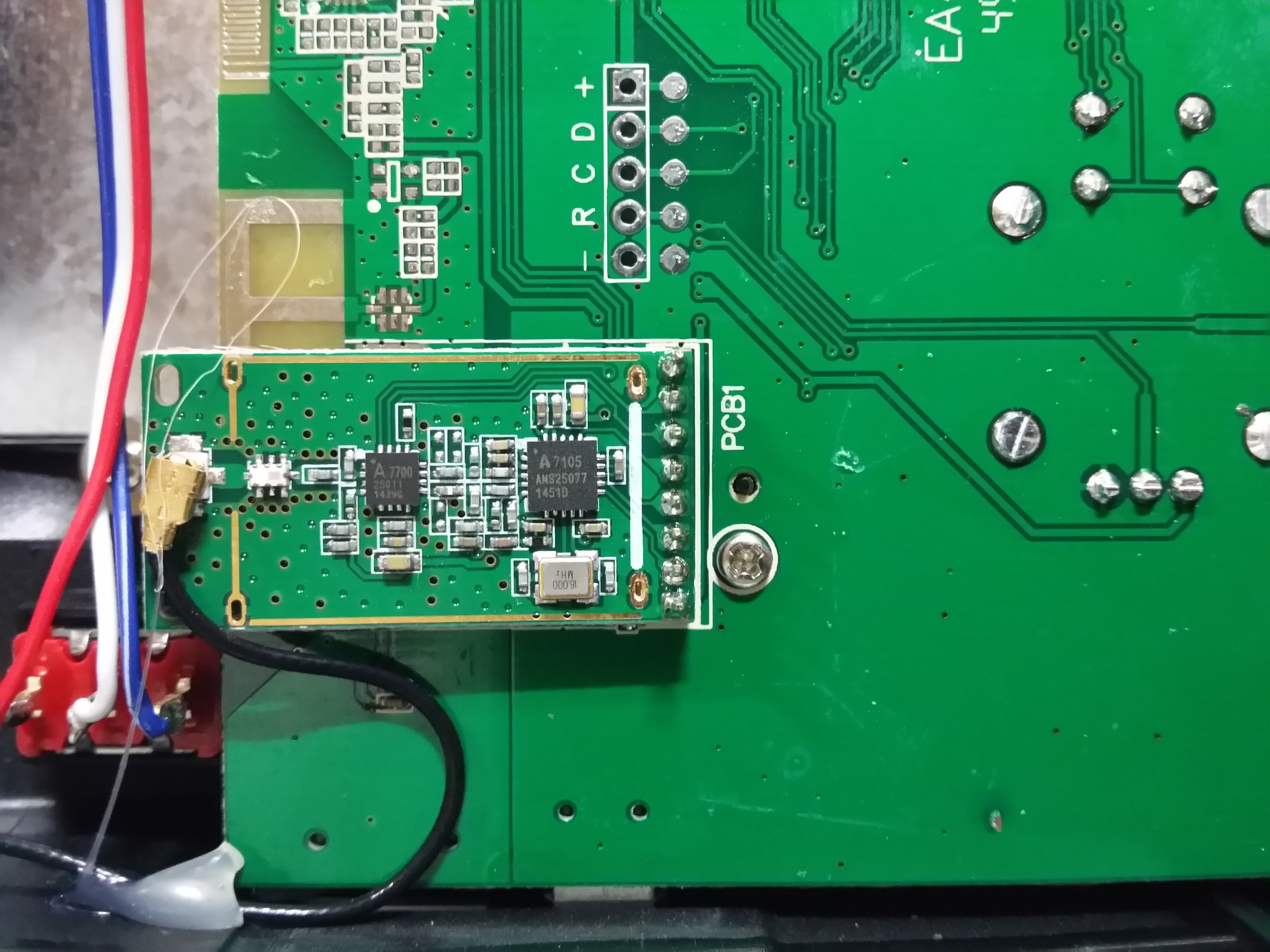

Yup, A7105 + A7700 PA/LNA, please provide some spi dumps if you want me to have a look at it
.... just a guess, but there's a good chance that it uses the same protocol than H107+ but with a different data ID during first bind stage.
Does it have telemetry ? If yes I suppose I'll have to find GPS data and other stuffs in telemetry packets too
.... just a guess, but there's a good chance that it uses the same protocol than H107+ but with a different data ID during first bind stage.
Does it have telemetry ? If yes I suppose I'll have to find GPS data and other stuffs in telemetry packets too
Last edit: 08 Jan 2016 10:55 by goebish.
Please Log in or Create an account to join the conversation.
- delta75
-
- Offline
Less
More
- Posts: 51
08 Jan 2016 17:55 #41514
by delta75
Replied by delta75 on topic The New Hubsans
please check my SPI DUMP
ONLY TX ON (NO BIND)
dronestory.tistory.com/attachment/cfile2...3F568FF7BE10B591.zip
TX ON, Quad ON, BIND OK , no cali test 1
dronestory.tistory.com/attachment/cfile2...45568FF699095111.zip
TX ON, Quad ON, BIND OK , no cali test 2
dronestory.tistory.com/attachment/cfile3...3F568FF7AA10B9C2.zip
TX ON , Quad ON , Compas Cali 1 , Compas Cali 2 done test 1
dronestory.tistory.com/attachment/cfile1...45568FF69009BAA9.zip
TX ON , Quad ON , Compas Cali 1 , Compas Cali 2 done test 2
dronestory.tistory.com/attachment/cfile2...45568FF68A080D6B.zip
TX ON , Quad ON , Compas Cali 1 , Compas Cali 2 , Start Motor , Stop Motor , Start Motor , Stop Motor
dronestory.tistory.com/attachment/cfile2...45568FF69309D3AE.zip
ONLY TX ON (NO BIND)
dronestory.tistory.com/attachment/cfile2...3F568FF7BE10B591.zip
TX ON, Quad ON, BIND OK , no cali test 1
dronestory.tistory.com/attachment/cfile2...45568FF699095111.zip
TX ON, Quad ON, BIND OK , no cali test 2
dronestory.tistory.com/attachment/cfile3...3F568FF7AA10B9C2.zip
TX ON , Quad ON , Compas Cali 1 , Compas Cali 2 done test 1
dronestory.tistory.com/attachment/cfile1...45568FF69009BAA9.zip
TX ON , Quad ON , Compas Cali 1 , Compas Cali 2 done test 2
dronestory.tistory.com/attachment/cfile2...45568FF68A080D6B.zip
TX ON , Quad ON , Compas Cali 1 , Compas Cali 2 , Start Motor , Stop Motor , Start Motor , Stop Motor
dronestory.tistory.com/attachment/cfile2...45568FF69309D3AE.zip
Please Log in or Create an account to join the conversation.
- goebish
-
- Offline
- I Void Warranties
Less
More
- Posts: 2631
08 Jan 2016 19:09 - 09 Jan 2016 11:36 #41517
by goebish
Replied by goebish on topic The New Hubsans
Thanks, I'll check that during the week-end
First look shows that data ID is the same than "older" protocol (0x55201041 edit: this is irrelevant, no data is sent or received using this ID actually) and data frames also look similar, so I think I only have to find what's different in the bind stages. Also there are a few new data frames types ID (TX & RX for telemetry): 0xd8, 0xe7, 0xe8, 0xe9, but apart from that frames look very similar, that shouldn't be very hard
First look shows that data ID is the same than "older" protocol (0x55201041 edit: this is irrelevant, no data is sent or received using this ID actually) and data frames also look similar, so I think I only have to find what's different in the bind stages. Also there are a few new data frames types ID (TX & RX for telemetry): 0xd8, 0xe7, 0xe8, 0xe9, but apart from that frames look very similar, that shouldn't be very hard
Last edit: 09 Jan 2016 11:36 by goebish.
Please Log in or Create an account to join the conversation.
- goebish
-
- Offline
- I Void Warranties
Less
More
- Posts: 2631
08 Jan 2016 19:28 - 09 Jan 2016 00:56 #41520
by goebish
Replied by goebish on topic The New Hubsans
further look:
It looks like this a pretty bad protocol, there's no proper binding stage, it starts to send data frames directly after chip setup ??? No wonder why current implementation doesn't work as it expects a bi-directional bind stage...
TX doesn't even check rssi level to select a rf channel ...
This is interesting:
70 W_REGISTER(06_ID_DATA) DF B7 A4 DC (comes from nowhere ?)
71 W_REGISTER(0F_PLL_I) 6E (this is also one of the "allowed channels" of the H107x protocols)
Maybe there's a fixed table of possible ID_DATA and corresponding rf channel on the RX side... if this is the case we won't be able to crack that with a TX dump only, that will require more transmitters dump or probably a RX dump could help (tx off), but maybe that won't be easy to solder analyzer probes on the rx side ...
packets (TX ON , Quad ON , Compas Cali 1 , Compas Cali 2 , Start Motor , Stop Motor , Start Motor , Stop Motor):
drive.google.com/file/d/0B9Xtm43hpQfbZXh...RGs/view?usp=sharing
It looks like this a pretty bad protocol, there's no proper binding stage, it starts to send data frames directly after chip setup ??? No wonder why current implementation doesn't work as it expects a bi-directional bind stage...
(only tx on)
0 W_REGISTER(00_MODE) 00
1 W_REGISTER(06_ID_DATA) 55 20 10 41
2 W_REGISTER(01_MODE_CONTROL) 62
3 W_REGISTER(02_CALC) 00
4 W_REGISTER(03_FIFOI) 0F
5 W_REGISTER(04_FIFOII) C0
6 W_REGISTER(07_RC_OSC_I) 00
7 W_REGISTER(08_RC_OSC_II) 00
8 W_REGISTER(09_RC_OSC_III) 04
9 W_REGISTER(0A_CK0_PIN) A2
10 W_REGISTER(0B_GPIO1_PIN1) 01
11 W_REGISTER(0C_GPIO2_PIN_II) 01
12 W_REGISTER(0D_CLOCK) 05
13 W_REGISTER(0E_DATA_RATE) 04
14 W_REGISTER(0F_PLL_I) 50
15 W_REGISTER(10_PLL_II) 9E
16 W_REGISTER(11_PLL_III) 4B
17 W_REGISTER(12_PLL_IV) 00
18 W_REGISTER(13_PLL_V) 00
19 W_REGISTER(14_TX_I) 16
20 W_REGISTER(15_TX_II) 2B
21 W_REGISTER(16_DELAY_I) 12
22 W_REGISTER(17_DELAY_II) 00
23 W_REGISTER(18_RX) 62
24 W_REGISTER(19_RX_GAIN_I) 80
25 W_REGISTER(1A_RX_GAIN_II) 80
26 W_REGISTER(1B_RX_GAIN_III) 00
27 W_REGISTER(1C_RX_GAIN_IV) 0A
28 W_REGISTER(1D_RSSI_THOLD) 32
29 W_REGISTER(1E_ADC) C3
30 W_REGISTER(1F_CODE_I) 07
31 W_REGISTER(20_CODE_II) 17
32 W_REGISTER(21_CODE_III) 00
33 W_REGISTER(22_IF_CALIB_I) 00
34 W_REGISTER(24_VCO_CURCAL) 00
35 W_REGISTER(25_VCO_SBCAL_I) 00
36 W_REGISTER(26_VCO_SBCAL_II) 3B
37 W_REGISTER(27_BATTERY_DET) 00
38 W_REGISTER(28_TX_TEST) 1F
39 W_REGISTER(29_RX_DEM_TEST_I) 47
40 W_REGISTER(2A_RX_DEM_TEST_I) 80
41 W_REGISTER(2B_CPC) 03
42 W_REGISTER(2C_XTAL_TEST) 01
43 W_REGISTER(2D_PLL_TEST) 45
44 W_REGISTER(2E_VCO_TEST_I) 18
45 W_REGISTER(2F_VCO_TEST_II) 00
46 W_REGISTER(30_IFAT) 01
47 W_REGISTER(31_RSCALE) 0F
48 COMMAND(A0_STANDBY)
49 W_REGISTER(02_CALC) 01
50 R_REGISTER(02_CALC) 01
51 R_REGISTER(02_CALC) 00
52 R_REGISTER(22_IF_CALIB_I) 05
53 W_REGISTER(22_IF_CALIB_I) 13
54 W_REGISTER(23_IF_CALIB_II) 3B
55 W_REGISTER(0F_PLL_I) 00
56 W_REGISTER(02_CALC) 02
57 R_REGISTER(02_CALC) 02
58 R_REGISTER(02_CALC) 00
59 R_REGISTER(22_IF_CALIB_I) 03
60 W_REGISTER(0F_PLL_I) 78
61 W_REGISTER(02_CALC) 02
62 R_REGISTER(02_CALC) 02
63 R_REGISTER(02_CALC) 00
64 R_REGISTER(22_IF_CALIB_I) 03
65 W_REGISTER(25_VCO_SBCAL_I) 0B
66 COMMAND(A0_STANDBY)
67 W_REGISTER(0F_PLL_I) 00
68 COMMAND(B0_PLL)
69 COMMAND(C0_RX)
70 W_REGISTER(06_ID_DATA) DF B7 A4 DC
71 W_REGISTER(0F_PLL_I) 6E
72 COMMAND(B0_PLL)
73 COMMAND(C0_RX)
74 W_REGISTER(1F_CODE_I) 0F
75 W_REGISTER(28_TX_TEST) 15
76 COMMAND(A0_STANDBY)
77 COMMAND(E0_RST_WRPTR)
78 W_REGISTER(05_FIFO_DATA) 20 00 80 00 80 00 80 00 80 06 19 00 00 00 00 C1
79 COMMAND(D0_TX)
80 R_REGISTER(00_MODE) 1B
81 R_REGISTER(00_MODE) 1B
82 R_REGISTER(00_MODE) 1B
83 R_REGISTER(00_MODE) 1B
84 R_REGISTER(00_MODE) 1B
85 R_REGISTER(00_MODE) 1B
86 R_REGISTER(00_MODE) 1B
87 R_REGISTER(00_MODE) 1B
88 R_REGISTER(00_MODE) 1B
89 R_REGISTER(00_MODE) 1B
90 R_REGISTER(00_MODE) 1B
91 R_REGISTER(00_MODE) 1B
92 R_REGISTER(00_MODE) 1B
93 R_REGISTER(00_MODE) 1B
94 R_REGISTER(00_MODE) 1B
95 R_REGISTER(00_MODE) 1B
96 R_REGISTER(00_MODE) 1B
97 R_REGISTER(00_MODE) 1B
98 R_REGISTER(00_MODE) 1B
99 R_REGISTER(00_MODE) 1B
100 R_REGISTER(00_MODE) 1B
101 R_REGISTER(00_MODE) 1B
102 R_REGISTER(00_MODE) 1B
103 R_REGISTER(00_MODE) 1B
104 R_REGISTER(00_MODE) 1B
105 R_REGISTER(00_MODE) 1B
106 R_REGISTER(00_MODE) 1B
107 R_REGISTER(00_MODE) 1B
108 R_REGISTER(00_MODE) 1B
109 R_REGISTER(00_MODE) 1B
110 R_REGISTER(00_MODE) 1B
111 R_REGISTER(00_MODE) 1B
112 R_REGISTER(00_MODE) 1B
113 R_REGISTER(00_MODE) 1B
114 R_REGISTER(00_MODE) 1B
115 R_REGISTER(00_MODE) 1B
116 R_REGISTER(00_MODE) 1B
117 R_REGISTER(00_MODE) 1B
118 R_REGISTER(00_MODE) 1B
119 R_REGISTER(00_MODE) 1B
120 R_REGISTER(00_MODE) 1B
121 R_REGISTER(00_MODE) 1B
122 R_REGISTER(00_MODE) 1B
123 R_REGISTER(00_MODE) 1B
124 R_REGISTER(00_MODE) 1B
125 R_REGISTER(00_MODE) 1B
126 R_REGISTER(00_MODE) 1B
127 R_REGISTER(00_MODE) 1B
128 R_REGISTER(00_MODE) 1B
129 R_REGISTER(00_MODE) 1B
130 R_REGISTER(00_MODE) 1B
131 R_REGISTER(00_MODE) 1B
132 R_REGISTER(00_MODE) 1B
133 R_REGISTER(00_MODE) 1B
134 R_REGISTER(00_MODE) 1B
135 R_REGISTER(00_MODE) 1B
136 R_REGISTER(00_MODE) 1B
137 R_REGISTER(00_MODE) 1B
138 R_REGISTER(00_MODE) 1B
139 R_REGISTER(00_MODE) 1B
140 R_REGISTER(00_MODE) 1B
141 R_REGISTER(00_MODE) 1B
142 R_REGISTER(00_MODE) 1B
143 R_REGISTER(00_MODE) 1B
144 R_REGISTER(00_MODE) 1B
145 R_REGISTER(00_MODE) 1B
146 R_REGISTER(00_MODE) 1B
147 R_REGISTER(00_MODE) 1B
148 R_REGISTER(00_MODE) 1B
149 R_REGISTER(00_MODE) 1B
150 R_REGISTER(00_MODE) 1B
151 R_REGISTER(00_MODE) 1B
152 R_REGISTER(00_MODE) 1B
153 R_REGISTER(00_MODE) 1B
154 R_REGISTER(00_MODE) 1B
155 R_REGISTER(00_MODE) 1B
156 R_REGISTER(00_MODE) 1A
157 COMMAND(C0_RX)
158 COMMAND(C0_RX)
159 COMMAND(A0_STANDBY)
160 COMMAND(E0_RST_WRPTR)
161 W_REGISTER(05_FIFO_DATA) 20 00 80 00 80 00 80 00 80 06 19 00 00 00 00 C1
162 COMMAND(D0_TX)
163 R_REGISTER(00_MODE) 1B
164 R_REGISTER(00_MODE) 1B
165 R_REGISTER(00_MODE) 1B
166 R_REGISTER(00_MODE) 1B
167 R_REGISTER(00_MODE) 1B
168 R_REGISTER(00_MODE) 1B
169 R_REGISTER(00_MODE) 1B
170 R_REGISTER(00_MODE) 1B
171 R_REGISTER(00_MODE) 1B
172 R_REGISTER(00_MODE) 1B
173 R_REGISTER(00_MODE) 1B
174 R_REGISTER(00_MODE) 1B
175 R_REGISTER(00_MODE) 1B
176 R_REGISTER(00_MODE) 1B
177 R_REGISTER(00_MODE) 1B
178 R_REGISTER(00_MODE) 1B
179 R_REGISTER(00_MODE) 1B
180 R_REGISTER(00_MODE) 1B
181 R_REGISTER(00_MODE) 1B
182 R_REGISTER(00_MODE) 1B
183 R_REGISTER(00_MODE) 1B
184 R_REGISTER(00_MODE) 1B
185 R_REGISTER(00_MODE) 1B
186 R_REGISTER(00_MODE) 1B
187 R_REGISTER(00_MODE) 1B
188 R_REGISTER(00_MODE) 1B
189 R_REGISTER(00_MODE) 1B
190 R_REGISTER(00_MODE) 1B
191 R_REGISTER(00_MODE) 1B
192 R_REGISTER(00_MODE) 1B
193 R_REGISTER(00_MODE) 1B
194 R_REGISTER(00_MODE) 1B
195 R_REGISTER(00_MODE) 1B
196 R_REGISTER(00_MODE) 1B
197 R_REGISTER(00_MODE) 1B
198 R_REGISTER(00_MODE) 1B
199 R_REGISTER(00_MODE) 1B
200 R_REGISTER(00_MODE) 1B
201 R_REGISTER(00_MODE) 1B
202 R_REGISTER(00_MODE) 1B
203 R_REGISTER(00_MODE) 1B
204 R_REGISTER(00_MODE) 1B
205 R_REGISTER(00_MODE) 1B
206 R_REGISTER(00_MODE) 1B
207 R_REGISTER(00_MODE) 1B
208 R_REGISTER(00_MODE) 1B
209 R_REGISTER(00_MODE) 1B
210 R_REGISTER(00_MODE) 1B
211 R_REGISTER(00_MODE) 1B
212 R_REGISTER(00_MODE) 1B
213 R_REGISTER(00_MODE) 1B
214 R_REGISTER(00_MODE) 1B
215 R_REGISTER(00_MODE) 1B
216 R_REGISTER(00_MODE) 1B
217 R_REGISTER(00_MODE) 1B
218 R_REGISTER(00_MODE) 1B
219 R_REGISTER(00_MODE) 1B
220 R_REGISTER(00_MODE) 1B
221 R_REGISTER(00_MODE) 1B
222 R_REGISTER(00_MODE) 1B
223 R_REGISTER(00_MODE) 1B
224 R_REGISTER(00_MODE) 1B
225 R_REGISTER(00_MODE) 1B
226 R_REGISTER(00_MODE) 1B
227 R_REGISTER(00_MODE) 1B
228 R_REGISTER(00_MODE) 1B
229 R_REGISTER(00_MODE) 1B
230 R_REGISTER(00_MODE) 1B
231 R_REGISTER(00_MODE) 1B
232 R_REGISTER(00_MODE) 1B
233 R_REGISTER(00_MODE) 1B
234 R_REGISTER(00_MODE) 1B
235 R_REGISTER(00_MODE) 1B
236 R_REGISTER(00_MODE) 1B
237 R_REGISTER(00_MODE) 1B
238 R_REGISTER(00_MODE) 1B
239 R_REGISTER(00_MODE) 1A
240 COMMAND(C0_RX)
241 COMMAND(C0_RX)
242 COMMAND(A0_STANDBY)
243 COMMAND(E0_RST_WRPTR)
244 W_REGISTER(05_FIFO_DATA) 20 00 80 00 80 00 80 00 80 06 19 00 00 00 00 C1
245 COMMAND(D0_TX)
246 R_REGISTER(00_MODE) 1B
247 R_REGISTER(00_MODE) 1B
248 R_REGISTER(00_MODE) 1B
249 R_REGISTER(00_MODE) 1B
250 R_REGISTER(00_MODE) 1B
251 R_REGISTER(00_MODE) 1B
252 R_REGISTER(00_MODE) 1B
253 R_REGISTER(00_MODE) 1B
254 R_REGISTER(00_MODE) 1B
255 R_REGISTER(00_MODE) 1B
256 R_REGISTER(00_MODE) 1B
257 R_REGISTER(00_MODE) 1B
258 R_REGISTER(00_MODE) 1B
259 R_REGISTER(00_MODE) 1B
260 R_REGISTER(00_MODE) 1B
261 R_REGISTER(00_MODE) 1B
262 R_REGISTER(00_MODE) 1B
263 R_REGISTER(00_MODE) 1B
264 R_REGISTER(00_MODE) 1B
265 R_REGISTER(00_MODE) 1B
266 R_REGISTER(00_MODE) 1B
267 R_REGISTER(00_MODE) 1B
268 R_REGISTER(00_MODE) 1B
269 R_REGISTER(00_MODE) 1B
270 R_REGISTER(00_MODE) 1B
271 R_REGISTER(00_MODE) 1B
272 R_REGISTER(00_MODE) 1B
273 R_REGISTER(00_MODE) 1B
274 R_REGISTER(00_MODE) 1B
275 R_REGISTER(00_MODE) 1B
276 R_REGISTER(00_MODE) 1B
277 R_REGISTER(00_MODE) 1B
278 R_REGISTER(00_MODE) 1B
279 R_REGISTER(00_MODE) 1B
280 R_REGISTER(00_MODE) 1B
281 R_REGISTER(00_MODE) 1B
282 R_REGISTER(00_MODE) 1B
283 R_REGISTER(00_MODE) 1B
284 R_REGISTER(00_MODE) 1B
285 R_REGISTER(00_MODE) 1B
286 R_REGISTER(00_MODE) 1B
287 R_REGISTER(00_MODE) 1B
288 R_REGISTER(00_MODE) 1B
289 R_REGISTER(00_MODE) 1B
290 R_REGISTER(00_MODE) 1B
291 R_REGISTER(00_MODE) 1B
292 R_REGISTER(00_MODE) 1B
293 R_REGISTER(00_MODE) 1B
294 R_REGISTER(00_MODE) 1B
295 R_REGISTER(00_MODE) 1B
296 R_REGISTER(00_MODE) 1B
297 R_REGISTER(00_MODE) 1B
298 R_REGISTER(00_MODE) 1B
299 R_REGISTER(00_MODE) 1B
300 R_REGISTER(00_MODE) 1B
301 R_REGISTER(00_MODE) 1B
302 R_REGISTER(00_MODE) 1B
303 R_REGISTER(00_MODE) 1B
304 R_REGISTER(00_MODE) 1B
305 R_REGISTER(00_MODE) 1B
306 R_REGISTER(00_MODE) 1B
307 R_REGISTER(00_MODE) 1B
308 R_REGISTER(00_MODE) 1B
309 R_REGISTER(00_MODE) 1B
310 R_REGISTER(00_MODE) 1B
311 R_REGISTER(00_MODE) 1B
312 R_REGISTER(00_MODE) 1B
313 R_REGISTER(00_MODE) 1B
314 R_REGISTER(00_MODE) 1B
315 R_REGISTER(00_MODE) 1B
316 R_REGISTER(00_MODE) 1B
317 R_REGISTER(00_MODE) 1B
318 R_REGISTER(00_MODE) 1B
319 R_REGISTER(00_MODE) 1B
320 R_REGISTER(00_MODE) 1B
321 R_REGISTER(00_MODE) 1B
322 R_REGISTER(00_MODE) 1A
323 COMMAND(C0_RX)
324 COMMAND(C0_RX)
325 COMMAND(A0_STANDBY)
326 COMMAND(E0_RST_WRPTR)
327 W_REGISTER(05_FIFO_DATA) 20 00 80 00 80 00 80 00 80 06 19 00 00 00 00 C1
328 COMMAND(D0_TX)
329 R_REGISTER(00_MODE) 1B
330 R_REGISTER(00_MODE) 1B
331 R_REGISTER(00_MODE) 1B
332 R_REGISTER(00_MODE) 1B
333 R_REGISTER(00_MODE) 1B
334 R_REGISTER(00_MODE) 1B
335 R_REGISTER(00_MODE) 1B
336 R_REGISTER(00_MODE) 1B
337 R_REGISTER(00_MODE) 1B
338 R_REGISTER(00_MODE) 1B
339 R_REGISTER(00_MODE) 1B
340 R_REGISTER(00_MODE) 1B
341 R_REGISTER(00_MODE) 1B
342 R_REGISTER(00_MODE) 1B
343 R_REGISTER(00_MODE) 1B
344 R_REGISTER(00_MODE) 1B
345 R_REGISTER(00_MODE) 1B
346 R_REGISTER(00_MODE) 1B
347 R_REGISTER(00_MODE) 1B
348 R_REGISTER(00_MODE) 1B
349 R_REGISTER(00_MODE) 1B
350 R_REGISTER(00_MODE) 1B
351 R_REGISTER(00_MODE) 1B
352 R_REGISTER(00_MODE) 1B
353 R_REGISTER(00_MODE) 1B
354 R_REGISTER(00_MODE) 1B
355 R_REGISTER(00_MODE) 1B
356 R_REGISTER(00_MODE) 1B
357 R_REGISTER(00_MODE) 1B
358 R_REGISTER(00_MODE) 1B
359 R_REGISTER(00_MODE) 1B
360 R_REGISTER(00_MODE) 1B
361 R_REGISTER(00_MODE) 1B
362 R_REGISTER(00_MODE) 1B
363 R_REGISTER(00_MODE) 1B
364 R_REGISTER(00_MODE) 1B
365 R_REGISTER(00_MODE) 1B
366 R_REGISTER(00_MODE) 1B
367 R_REGISTER(00_MODE) 1B
368 R_REGISTER(00_MODE) 1B
369 R_REGISTER(00_MODE) 1B
370 R_REGISTER(00_MODE) 1B
371 R_REGISTER(00_MODE) 1B
372 R_REGISTER(00_MODE) 1B
373 R_REGISTER(00_MODE) 1B
374 R_REGISTER(00_MODE) 1B
375 R_REGISTER(00_MODE) 1B
376 R_REGISTER(00_MODE) 1B
377 R_REGISTER(00_MODE) 1B
378 R_REGISTER(00_MODE) 1B
379 R_REGISTER(00_MODE) 1B
380 R_REGISTER(00_MODE) 1B
381 R_REGISTER(00_MODE) 1B
382 R_REGISTER(00_MODE) 1B
383 R_REGISTER(00_MODE) 1B
384 R_REGISTER(00_MODE) 1B
385 R_REGISTER(00_MODE) 1B
386 R_REGISTER(00_MODE) 1B
387 R_REGISTER(00_MODE) 1B
388 R_REGISTER(00_MODE) 1B
389 R_REGISTER(00_MODE) 1B
390 R_REGISTER(00_MODE) 1B
391 R_REGISTER(00_MODE) 1B
392 R_REGISTER(00_MODE) 1B
393 R_REGISTER(00_MODE) 1B
394 R_REGISTER(00_MODE) 1B
395 R_REGISTER(00_MODE) 1B
396 R_REGISTER(00_MODE) 1B
397 R_REGISTER(00_MODE) 1B
398 R_REGISTER(00_MODE) 1B
399 R_REGISTER(00_MODE) 1B
400 R_REGISTER(00_MODE) 1B
401 R_REGISTER(00_MODE) 1B
402 R_REGISTER(00_MODE) 1B
403 R_REGISTER(00_MODE) 1B
404 R_REGISTER(00_MODE) 1B
405 R_REGISTER(00_MODE) 1A
406 COMMAND(C0_RX)
407 COMMAND(C0_RX)
408 COMMAND(A0_STANDBY)
409 COMMAND(E0_RST_WRPTR)
410 W_REGISTER(05_FIFO_DATA) 20 00 80 00 80 00 80 00 80 06 19 00 00 00 00 C1
411 COMMAND(D0_TX)
412 R_REGISTER(00_MODE) 1B
413 R_REGISTER(00_MODE) 1B
414 R_REGISTER(00_MODE) 1B
415 R_REGISTER(00_MODE) 1B
416 R_REGISTER(00_MODE) 1B
417 R_REGISTER(00_MODE) 1B
418 R_REGISTER(00_MODE) 1B
419 R_REGISTER(00_MODE) 1B
420 R_REGISTER(00_MODE) 1B
421 R_REGISTER(00_MODE) 1B
422 R_REGISTER(00_MODE) 1B
423 R_REGISTER(00_MODE) 1B
424 R_REGISTER(00_MODE) 1B
425 R_REGISTER(00_MODE) 1B
426 R_REGISTER(00_MODE) 1B
427 R_REGISTER(00_MODE) 1B
428 R_REGISTER(00_MODE) 1B
429 R_REGISTER(00_MODE) 1B
430 R_REGISTER(00_MODE) 1B
431 R_REGISTER(00_MODE) 1B
432 R_REGISTER(00_MODE) 1B
433 R_REGISTER(00_MODE) 1B
434 R_REGISTER(00_MODE) 1B
435 R_REGISTER(00_MODE) 1B
436 R_REGISTER(00_MODE) 1B
437 R_REGISTER(00_MODE) 1B
438 R_REGISTER(00_MODE) 1B
439 R_REGISTER(00_MODE) 1B
440 R_REGISTER(00_MODE) 1B
441 R_REGISTER(00_MODE) 1B
442 R_REGISTER(00_MODE) 1B
443 R_REGISTER(00_MODE) 1B
444 R_REGISTER(00_MODE) 1B
445 R_REGISTER(00_MODE) 1B
446 R_REGISTER(00_MODE) 1B
447 R_REGISTER(00_MODE) 1B
448 R_REGISTER(00_MODE) 1B
449 R_REGISTER(00_MODE) 1B
450 R_REGISTER(00_MODE) 1B
451 R_REGISTER(00_MODE) 1B
452 R_REGISTER(00_MODE) 1B
453 R_REGISTER(00_MODE) 1B
454 R_REGISTER(00_MODE) 1B
455 R_REGISTER(00_MODE) 1B
456 R_REGISTER(00_MODE) 1B
457 R_REGISTER(00_MODE) 1B
458 R_REGISTER(00_MODE) 1B
459 R_REGISTER(00_MODE) 1B
460 R_REGISTER(00_MODE) 1B
461 R_REGISTER(00_MODE) 1B
462 R_REGISTER(00_MODE) 1B
463 R_REGISTER(00_MODE) 1B
464 R_REGISTER(00_MODE) 1B
465 R_REGISTER(00_MODE) 1B
466 R_REGISTER(00_MODE) 1B
467 R_REGISTER(00_MODE) 1B
468 R_REGISTER(00_MODE) 1B
469 R_REGISTER(00_MODE) 1B
470 R_REGISTER(00_MODE) 1B
471 R_REGISTER(00_MODE) 1B
472 R_REGISTER(00_MODE) 1B
473 R_REGISTER(00_MODE) 1B
474 R_REGISTER(00_MODE) 1B
475 R_REGISTER(00_MODE) 1B
476 R_REGISTER(00_MODE) 1B
477 R_REGISTER(00_MODE) 1B
478 R_REGISTER(00_MODE) 1B
479 R_REGISTER(00_MODE) 1B
480 R_REGISTER(00_MODE) 1B
481 R_REGISTER(00_MODE) 1B
482 R_REGISTER(00_MODE) 1B
483 R_REGISTER(00_MODE) 1B
484 R_REGISTER(00_MODE) 1B
485 R_REGISTER(00_MODE) 1B
486 R_REGISTER(00_MODE) 1B
487 R_REGISTER(00_MODE) 1B
488 R_REGISTER(00_MODE) 1A
489 COMMAND(C0_RX)
490 COMMAND(C0_RX)
491 COMMAND(A0_STANDBY)
492 COMMAND(E0_RST_WRPTR)
493 W_REGISTER(05_FIFO_DATA) 20 00 80 00 80 00 80 00 80 06 19 00 00 00 00 C1
494 COMMAND(D0_TX)
495 R_REGISTER(00_MODE) 1B
496 R_REGISTER(00_MODE) 1B
497 R_REGISTER(00_MODE) 1B
498 R_REGISTER(00_MODE) 1B
499 R_REGISTER(00_MODE) 1B
500 R_REGISTER(00_MODE) 1B
501 R_REGISTER(00_MODE) 1B
502 R_REGISTER(00_MODE) 1B
503 R_REGISTER(00_MODE) 1B
504 R_REGISTER(00_MODE) 1B
505 R_REGISTER(00_MODE) 1B
506 R_REGISTER(00_MODE) 1B
507 R_REGISTER(00_MODE) 1B
508 R_REGISTER(00_MODE) 1B
509 R_REGISTER(00_MODE) 1B
510 R_REGISTER(00_MODE) 1B
511 R_REGISTER(00_MODE) 1B
512 R_REGISTER(00_MODE) 1B
513 R_REGISTER(00_MODE) 1B
514 R_REGISTER(00_MODE) 1B
515 R_REGISTER(00_MODE) 1B
516 R_REGISTER(00_MODE) 1B
517 R_REGISTER(00_MODE) 1B
518 R_REGISTER(00_MODE) 1B
519 R_REGISTER(00_MODE) 1B
520 R_REGISTER(00_MODE) 1B
521 R_REGISTER(00_MODE) 1B
522 R_REGISTER(00_MODE) 1B
523 R_REGISTER(00_MODE) 1B
524 R_REGISTER(00_MODE) 1B
525 R_REGISTER(00_MODE) 1B
526 R_REGISTER(00_MODE) 1B
527 R_REGISTER(00_MODE) 1B
528 R_REGISTER(00_MODE) 1B
529 R_REGISTER(00_MODE) 1B
530 R_REGISTER(00_MODE) 1B
531 R_REGISTER(00_MODE) 1B
532 R_REGISTER(00_MODE) 1B
533 R_REGISTER(00_MODE) 1B
534 R_REGISTER(00_MODE) 1B
535 R_REGISTER(00_MODE) 1B
536 R_REGISTER(00_MODE) 1B
537 R_REGISTER(00_MODE) 1B
538 R_REGISTER(00_MODE) 1B
539 R_REGISTER(00_MODE) 1B
540 R_REGISTER(00_MODE) 1B
541 R_REGISTER(00_MODE) 1B
542 R_REGISTER(00_MODE) 1B
543 R_REGISTER(00_MODE) 1B
544 R_REGISTER(00_MODE) 1B
545 R_REGISTER(00_MODE) 1B
546 R_REGISTER(00_MODE) 1B
547 R_REGISTER(00_MODE) 1B
548 R_REGISTER(00_MODE) 1B
549 R_REGISTER(00_MODE) 1B
550 R_REGISTER(00_MODE) 1B
551 R_REGISTER(00_MODE) 1B
552 R_REGISTER(00_MODE) 1B
553 R_REGISTER(00_MODE) 1B
554 R_REGISTER(00_MODE) 1B
555 R_REGISTER(00_MODE) 1B
556 R_REGISTER(00_MODE) 1B
557 R_REGISTER(00_MODE) 1B
558 R_REGISTER(00_MODE) 1B
559 R_REGISTER(00_MODE) 1B
560 R_REGISTER(00_MODE) 1B
561 R_REGISTER(00_MODE) 1B
562 R_REGISTER(00_MODE) 1B
563 R_REGISTER(00_MODE) 1B
564 R_REGISTER(00_MODE) 1B
565 R_REGISTER(00_MODE) 1B
566 R_REGISTER(00_MODE) 1B
567 R_REGISTER(00_MODE) 1B
568 R_REGISTER(00_MODE) 1B
569 R_REGISTER(00_MODE) 1B
570 R_REGISTER(00_MODE) 1B
571 R_REGISTER(00_MODE) 1A
572 COMMAND(C0_RX)
573 COMMAND(C0_RX)
574 COMMAND(A0_STANDBY)
575 COMMAND(E0_RST_WRPTR)
576 W_REGISTER(05_FIFO_DATA) 20 00 80 00 80 00 80 00 80 06 19 00 00 00 00 C1
577 COMMAND(D0_TX)
578 R_REGISTER(00_MODE) 1B
579 R_REGISTER(00_MODE) 1B
580 R_REGISTER(00_MODE) 1B
581 R_REGISTER(00_MODE) 1B
582 R_REGISTER(00_MODE) 1B
583 R_REGISTER(00_MODE) 1B
584 R_REGISTER(00_MODE) 1B
585 R_REGISTER(00_MODE) 1B
586 R_REGISTER(00_MODE) 1B
587 R_REGISTER(00_MODE) 1B
588 R_REGISTER(00_MODE) 1B
589 R_REGISTER(00_MODE) 1B
590 R_REGISTER(00_MODE) 1B
591 R_REGISTER(00_MODE) 1B
592 R_REGISTER(00_MODE) 1B
593 R_REGISTER(00_MODE) 1B
594 R_REGISTER(00_MODE) 1B
595 R_REGISTER(00_MODE) 1B
596 R_REGISTER(00_MODE) 1B
597 R_REGISTER(00_MODE) 1B
598 R_REGISTER(00_MODE) 1B
599 R_REGISTER(00_MODE) 1B
600 R_REGISTER(00_MODE) 1B
601 R_REGISTER(00_MODE) 1B
602 R_REGISTER(00_MODE) 1B
603 R_REGISTER(00_MODE) 1B
604 R_REGISTER(00_MODE) 1B
605 R_REGISTER(00_MODE) 1B
606 R_REGISTER(00_MODE) 1B
607 R_REGISTER(00_MODE) 1B
608 R_REGISTER(00_MODE) 1B
609 R_REGISTER(00_MODE) 1B
610 R_REGISTER(00_MODE) 1B
611 R_REGISTER(00_MODE) 1B
612 R_REGISTER(00_MODE) 1B
613 R_REGISTER(00_MODE) 1B
614 R_REGISTER(00_MODE) 1B
615 R_REGISTER(00_MODE) 1B
616 R_REGISTER(00_MODE) 1B
617 R_REGISTER(00_MODE) 1B
618 R_REGISTER(00_MODE) 1B
619 R_REGISTER(00_MODE) 1B
620 R_REGISTER(00_MODE) 1B
621 R_REGISTER(00_MODE) 1B
622 R_REGISTER(00_MODE) 1B
623 R_REGISTER(00_MODE) 1B
624 R_REGISTER(00_MODE) 1B
625 R_REGISTER(00_MODE) 1B
626 R_REGISTER(00_MODE) 1B
627 R_REGISTER(00_MODE) 1B
628 R_REGISTER(00_MODE) 1B
629 R_REGISTER(00_MODE) 1B
630 R_REGISTER(00_MODE) 1B
631 R_REGISTER(00_MODE) 1B
632 R_REGISTER(00_MODE) 1B
633 R_REGISTER(00_MODE) 1B
634 R_REGISTER(00_MODE) 1B
635 R_REGISTER(00_MODE) 1B
636 R_REGISTER(00_MODE) 1B
637 R_REGISTER(00_MODE) 1B
638 R_REGISTER(00_MODE) 1B
639 R_REGISTER(00_MODE) 1B
640 R_REGISTER(00_MODE) 1B
641 R_REGISTER(00_MODE) 1B
642 R_REGISTER(00_MODE) 1B
643 R_REGISTER(00_MODE) 1B
644 R_REGISTER(00_MODE) 1B
645 R_REGISTER(00_MODE) 1B
646 R_REGISTER(00_MODE) 1B
647 R_REGISTER(00_MODE) 1B
648 R_REGISTER(00_MODE) 1B
649 R_REGISTER(00_MODE) 1B
650 R_REGISTER(00_MODE) 1B
651 R_REGISTER(00_MODE) 1B
652 R_REGISTER(00_MODE) 1B
653 R_REGISTER(00_MODE) 1B
654 R_REGISTER(00_MODE) 1A
655 COMMAND(C0_RX)
656 COMMAND(C0_RX)
657 COMMAND(A0_STANDBY)
658 COMMAND(E0_RST_WRPTR)
659 W_REGISTER(05_FIFO_DATA) 20 00 80 00 80 00 80 00 80 06 19 00 00 00 00 C1
660 COMMAND(D0_TX)
661 R_REGISTER(00_MODE) 1B
662 R_REGISTER(00_MODE) 1B
663 R_REGISTER(00_MODE) 1B
664 R_REGISTER(00_MODE) 1B
665 R_REGISTER(00_MODE) 1B
666 R_REGISTER(00_MODE) 1B
667 R_REGISTER(00_MODE) 1B
668 R_REGISTER(00_MODE) 1B
669 R_REGISTER(00_MODE) 1B
670 R_REGISTER(00_MODE) 1B
671 R_REGISTER(00_MODE) 1B
672 R_REGISTER(00_MODE) 1B
673 R_REGISTER(00_MODE) 1B
674 R_REGISTER(00_MODE) 1B
675 R_REGISTER(00_MODE) 1B
676 R_REGISTER(00_MODE) 1B
677 R_REGISTER(00_MODE) 1B
678 R_REGISTER(00_MODE) 1B
679 R_REGISTER(00_MODE) 1B
680 R_REGISTER(00_MODE) 1B
681 R_REGISTER(00_MODE) 1B
682 R_REGISTER(00_MODE) 1B
683 R_REGISTER(00_MODE) 1B
684 R_REGISTER(00_MODE) 1B
685 R_REGISTER(00_MODE) 1B
686 R_REGISTER(00_MODE) 1B
687 R_REGISTER(00_MODE) 1B
688 R_REGISTER(00_MODE) 1B
689 R_REGISTER(00_MODE) 1B
690 R_REGISTER(00_MODE) 1B
691 R_REGISTER(00_MODE) 1B
692 R_REGISTER(00_MODE) 1B
693 R_REGISTER(00_MODE) 1B
694 R_REGISTER(00_MODE) 1B
695 R_REGISTER(00_MODE) 1B
696 R_REGISTER(00_MODE) 1B
697 R_REGISTER(00_MODE) 1B
698 R_REGISTER(00_MODE) 1B
699 R_REGISTER(00_MODE) 1B
700 R_REGISTER(00_MODE) 1B
701 R_REGISTER(00_MODE) 1B
702 R_REGISTER(00_MODE) 1B
703 R_REGISTER(00_MODE) 1B
704 R_REGISTER(00_MODE) 1B
705 R_REGISTER(00_MODE) 1B
706 R_REGISTER(00_MODE) 1B
707 R_REGISTER(00_MODE) 1B
708 R_REGISTER(00_MODE) 1B
709 R_REGISTER(00_MODE) 1B
710 R_REGISTER(00_MODE) 1B
711 R_REGISTER(00_MODE) 1B
712 R_REGISTER(00_MODE) 1B
713 R_REGISTER(00_MODE) 1B
714 R_REGISTER(00_MODE) 1B
715 R_REGISTER(00_MODE) 1B
716 R_REGISTER(00_MODE) 1B
717 R_REGISTER(00_MODE) 1B
718 R_REGISTER(00_MODE) 1B
719 R_REGISTER(00_MODE) 1B
720 R_REGISTER(00_MODE) 1B
721 R_REGISTER(00_MODE) 1B
722 R_REGISTER(00_MODE) 1B
723 R_REGISTER(00_MODE) 1B
724 R_REGISTER(00_MODE) 1B
725 R_REGISTER(00_MODE) 1B
726 R_REGISTER(00_MODE) 1B
727 R_REGISTER(00_MODE) 1B
728 R_REGISTER(00_MODE) 1B
729 R_REGISTER(00_MODE) 1B
730 R_REGISTER(00_MODE) 1B
731 R_REGISTER(00_MODE) 1B
732 R_REGISTER(00_MODE) 1B
733 R_REGISTER(00_MODE) 1B
734 R_REGISTER(00_MODE) 1B
735 R_REGISTER(00_MODE) 1B
736 R_REGISTER(00_MODE) 1B
737 R_REGISTER(00_MODE) 1A
738 COMMAND(C0_RX)
739 COMMAND(C0_RX)
740 COMMAND(A0_STANDBY)
741 COMMAND(E0_RST_WRPTR)
742 W_REGISTER(05_FIFO_DATA) 20 00 80 00 80 00 80 00 80 06 19 00 00 00 00 C1
743 COMMAND(D0_TX)
744 R_REGISTER(00_MODE) 1B
745 R_REGISTER(00_MODE) 1B
746 R_REGISTER(00_MODE) 1B
747 R_REGISTER(00_MODE) 1B
748 R_REGISTER(00_MODE) 1B
749 R_REGISTER(00_MODE) 1B
750 R_REGISTER(00_MODE) 1B
751 R_REGISTER(00_MODE) 1B
752 R_REGISTER(00_MODE) 1B
753 R_REGISTER(00_MODE) 1B
754 R_REGISTER(00_MODE) 1B
755 R_REGISTER(00_MODE) 1B
756 R_REGISTER(00_MODE) 1B
757 R_REGISTER(00_MODE) 1B
758 R_REGISTER(00_MODE) 1B
759 R_REGISTER(00_MODE) 1B
760 R_REGISTER(00_MODE) 1B
761 R_REGISTER(00_MODE) 1B
762 R_REGISTER(00_MODE) 1B
763 R_REGISTER(00_MODE) 1B
764 R_REGISTER(00_MODE) 1B
765 R_REGISTER(00_MODE) 1B
766 R_REGISTER(00_MODE) 1B
767 R_REGISTER(00_MODE) 1B
768 R_REGISTER(00_MODE) 1B
769 R_REGISTER(00_MODE) 1B
770 R_REGISTER(00_MODE) 1B
771 R_REGISTER(00_MODE) 1B
772 R_REGISTER(00_MODE) 1B
773 R_REGISTER(00_MODE) 1B
774 R_REGISTER(00_MODE) 1B
775 R_REGISTER(00_MODE) 1B
776 R_REGISTER(00_MODE) 1B
777 R_REGISTER(00_MODE) 1B
778 R_REGISTER(00_MODE) 1B
779 R_REGISTER(00_MODE) 1B
780 R_REGISTER(00_MODE) 1B
781 R_REGISTER(00_MODE) 1B
782 R_REGISTER(00_MODE) 1B
783 R_REGISTER(00_MODE) 1B
784 R_REGISTER(00_MODE) 1B
785 R_REGISTER(00_MODE) 1B
786 R_REGISTER(00_MODE) 1B
787 R_REGISTER(00_MODE) 1B
788 R_REGISTER(00_MODE) 1B
789 R_REGISTER(00_MODE) 1B
790 R_REGISTER(00_MODE) 1B
791 R_REGISTER(00_MODE) 1B
792 R_REGISTER(00_MODE) 1B
793 R_REGISTER(00_MODE) 1B
794 R_REGISTER(00_MODE) 1B
795 R_REGISTER(00_MODE) 1B
796 R_REGISTER(00_MODE) 1B
797 R_REGISTER(00_MODE) 1B
798 R_REGISTER(00_MODE) 1B
799 R_REGISTER(00_MODE) 1B
800 R_REGISTER(00_MODE) 1B
801 R_REGISTER(00_MODE) 1B
802 R_REGISTER(00_MODE) 1B
803 R_REGISTER(00_MODE) 1B
804 R_REGISTER(00_MODE) 1B
805 R_REGISTER(00_MODE) 1B
806 R_REGISTER(00_MODE) 1B
807 R_REGISTER(00_MODE) 1B
808 R_REGISTER(00_MODE) 1B
809 R_REGISTER(00_MODE) 1B
810 R_REGISTER(00_MODE) 1B
811 R_REGISTER(00_MODE) 1B
812 R_REGISTER(00_MODE) 1B
813 R_REGISTER(00_MODE) 1B
814 R_REGISTER(00_MODE) 1B
815 R_REGISTER(00_MODE) 1B
816 R_REGISTER(00_MODE) 1B
817 R_REGISTER(00_MODE) 1B
818 R_REGISTER(00_MODE) 1B
819 R_REGISTER(00_MODE) 1B
820 R_REGISTER(00_MODE) 1A
821 COMMAND(C0_RX)
822 COMMAND(C0_RX)
823 COMMAND(A0_STANDBY)
824 COMMAND(E0_RST_WRPTR)
825 W_REGISTER(05_FIFO_DATA) E8 00 00 00 00 00 00 00 00 00 00 00 00 00 00 18
826 COMMAND(D0_TX)
827 R_REGISTER(00_MODE) 1B
828 R_REGISTER(00_MODE) 1B
829 R_REGISTER(00_MODE) 1B
830 R_REGISTER(00_MODE) 1B
831 R_REGISTER(00_MODE) 1B
832 R_REGISTER(00_MODE) 1B
833 R_REGISTER(00_MODE) 1B
834 R_REGISTER(00_MODE) 1B
835 R_REGISTER(00_MODE) 1B
836 R_REGISTER(00_MODE) 1B
837 R_REGISTER(00_MODE) 1B
838 R_REGISTER(00_MODE) 1B
839 R_REGISTER(00_MODE) 1B
840 R_REGISTER(00_MODE) 1B
841 R_REGISTER(00_MODE) 1B
842 R_REGISTER(00_MODE) 1B
843 R_REGISTER(00_MODE) 1B
844 R_REGISTER(00_MODE) 1B
845 R_REGISTER(00_MODE) 1B
846 R_REGISTER(00_MODE) 1B
847 R_REGISTER(00_MODE) 1B
848 R_REGISTER(00_MODE) 1B
849 R_REGISTER(00_MODE) 1B
850 R_REGISTER(00_MODE) 1B
851 R_REGISTER(00_MODE) 1B
852 R_REGISTER(00_MODE) 1B
853 R_REGISTER(00_MODE) 1B
854 R_REGISTER(00_MODE) 1B
855 R_REGISTER(00_MODE) 1B
856 R_REGISTER(00_MODE) 1B
857 R_REGISTER(00_MODE) 1B
858 R_REGISTER(00_MODE) 1B
859 R_REGISTER(00_MODE) 1B
860 R_REGISTER(00_MODE) 1B
861 R_REGISTER(00_MODE) 1B
862 R_REGISTER(00_MODE) 1B
863 R_REGISTER(00_MODE) 1B
864 R_REGISTER(00_MODE) 1B
865 R_REGISTER(00_MODE) 1B
866 R_REGISTER(00_MODE) 1B
867 R_REGISTER(00_MODE) 1B
868 R_REGISTER(00_MODE) 1B
869 R_REGISTER(00_MODE) 1B
870 R_REGISTER(00_MODE) 1B
871 R_REGISTER(00_MODE) 1B
872 R_REGISTER(00_MODE) 1B
873 R_REGISTER(00_MODE) 1B
874 R_REGISTER(00_MODE) 1B
875 R_REGISTER(00_MODE) 1B
876 R_REGISTER(00_MODE) 1B
877 R_REGISTER(00_MODE) 1B
878 R_REGISTER(00_MODE) 1B
879 R_REGISTER(00_MODE) 1B
880 R_REGISTER(00_MODE) 1B
881 R_REGISTER(00_MODE) 1B
882 R_REGISTER(00_MODE) 1B
883 R_REGISTER(00_MODE) 1B
884 R_REGISTER(00_MODE) 1B
885 R_REGISTER(00_MODE) 1B
886 R_REGISTER(00_MODE) 1B
887 R_REGISTER(00_MODE) 1B
888 R_REGISTER(00_MODE) 1B
889 R_REGISTER(00_MODE) 1B
890 R_REGISTER(00_MODE) 1B
891 R_REGISTER(00_MODE) 1B
892 R_REGISTER(00_MODE) 1B
893 R_REGISTER(00_MODE) 1B
894 R_REGISTER(00_MODE) 1B
895 R_REGISTER(00_MODE) 1B
896 R_REGISTER(00_MODE) 1B
897 R_REGISTER(00_MODE) 1B
898 R_REGISTER(00_MODE) 1B
899 R_REGISTER(00_MODE) 1B
900 R_REGISTER(00_MODE) 1B
901 R_REGISTER(00_MODE) 1B
902 R_REGISTER(00_MODE) 1B
903 R_REGISTER(00_MODE) 1A
904 COMMAND(C0_RX)
905 COMMAND(C0_RX)
906 COMMAND(A0_STANDBY)
907 COMMAND(E0_RST_WRPTR)
908 W_REGISTER(05_FIFO_DATA) 20 00 80 00 80 00 80 00 80 06 19 00 00 00 00 C1
909 COMMAND(D0_TX)
910 R_REGISTER(00_MODE) 1B
911 R_REGISTER(00_MODE) 1B
912 R_REGISTER(00_MODE) 1B
913 R_REGISTER(00_MODE) 1B
914 R_REGISTER(00_MODE) 1B
915 R_REGISTER(00_MODE) 1B
916 R_REGISTER(00_MODE) 1B
917 R_REGISTER(00_MODE) 1B
918 R_REGISTER(00_MODE) 1B
919 R_REGISTER(00_MODE) 1B
920 R_REGISTER(00_MODE) 1B
921 R_REGISTER(00_MODE) 1B
922 R_REGISTER(00_MODE) 1B
923 R_REGISTER(00_MODE) 1B
924 R_REGISTER(00_MODE) 1B
925 R_REGISTER(00_MODE) 1B
926 R_REGISTER(00_MODE) 1B
927 R_REGISTER(00_MODE) 1B
928 R_REGISTER(00_MODE) 1B
929 R_REGISTER(00_MODE) 1B
930 R_REGISTER(00_MODE) 1B
931 R_REGISTER(00_MODE) 1B
932 R_REGISTER(00_MODE) 1B
933 R_REGISTER(00_MODE) 1B
934 R_REGISTER(00_MODE) 1B
935 R_REGISTER(00_MODE) 1B
936 R_REGISTER(00_MODE) 1B
937 R_REGISTER(00_MODE) 1B
938 R_REGISTER(00_MODE) 1B
939 R_REGISTER(00_MODE) 1B
940 R_REGISTER(00_MODE) 1B
941 R_REGISTER(00_MODE) 1B
942 R_REGISTER(00_MODE) 1B
943 R_REGISTER(00_MODE) 1B
944 R_REGISTER(00_MODE) 1B
945 R_REGISTER(00_MODE) 1B
946 R_REGISTER(00_MODE) 1B
947 R_REGISTER(00_MODE) 1B
948 R_REGISTER(00_MODE) 1B
949 R_REGISTER(00_MODE) 1B
950 R_REGISTER(00_MODE) 1B
951 R_REGISTER(00_MODE) 1B
952 R_REGISTER(00_MODE) 1B
953 R_REGISTER(00_MODE) 1B
954 R_REGISTER(00_MODE) 1B
955 R_REGISTER(00_MODE) 1B
956 R_REGISTER(00_MODE) 1B
957 R_REGISTER(00_MODE) 1B
958 R_REGISTER(00_MODE) 1B
959 R_REGISTER(00_MODE) 1B
960 R_REGISTER(00_MODE) 1B
961 R_REGISTER(00_MODE) 1B
962 R_REGISTER(00_MODE) 1B
963 R_REGISTER(00_MODE) 1B
964 R_REGISTER(00_MODE) 1B
965 R_REGISTER(00_MODE) 1B
966 R_REGISTER(00_MODE) 1B
967 R_REGISTER(00_MODE) 1B
968 R_REGISTER(00_MODE) 1B
969 R_REGISTER(00_MODE) 1B
970 R_REGISTER(00_MODE) 1B
971 R_REGISTER(00_MODE) 1B
972 R_REGISTER(00_MODE) 1B
973 R_REGISTER(00_MODE) 1B
974 R_REGISTER(00_MODE) 1B
975 R_REGISTER(00_MODE) 1B
976 R_REGISTER(00_MODE) 1B
977 R_REGISTER(00_MODE) 1B
978 R_REGISTER(00_MODE) 1B
979 R_REGISTER(00_MODE) 1B
980 R_REGISTER(00_MODE) 1B
981 R_REGISTER(00_MODE) 1B
982 R_REGISTER(00_MODE) 1B
983 R_REGISTER(00_MODE) 1B
984 R_REGISTER(00_MODE) 1B
985 R_REGISTER(00_MODE) 1B
986 R_REGISTER(00_MODE) 1A
987 COMMAND(C0_RX)
988 COMMAND(C0_RX)
989 COMMAND(A0_STANDBY)
990 COMMAND(E0_RST_WRPTR)
991 W_REGISTER(05_FIFO_DATA) 20 00 80 00 80 00 80 00 80 06 19 00 00 00 00 C1
992 COMMAND(D0_TX)
993 R_REGISTER(00_MODE) 1B
994 R_REGISTER(00_MODE) 1B
995 R_REGISTER(00_MODE) 1B
996 R_REGISTER(00_MODE) 1B
997 R_REGISTER(00_MODE) 1B
998 R_REGISTER(00_MODE) 1B
999 R_REGISTER(00_MODE) 1B
1000 R_REGISTER(00_MODE) 1B
1001 R_REGISTER(00_MODE) 1B
1002 R_REGISTER(00_MODE) 1B
1003 R_REGISTER(00_MODE) 1B
1004 R_REGISTER(00_MODE) 1B
1005 R_REGISTER(00_MODE) 1B
1006 R_REGISTER(00_MODE) 1B
1007 R_REGISTER(00_MODE) 1B
1008 R_REGISTER(00_MODE) 1B
1009 R_REGISTER(00_MODE) 1B
1010 R_REGISTER(00_MODE) 1B
1011 R_REGISTER(00_MODE) 1B
1012 R_REGISTER(00_MODE) 1B
1013 R_REGISTER(00_MODE) 1B
1014 R_REGISTER(00_MODE) 1B
1015 R_REGISTER(00_MODE) 1B
1016 R_REGISTER(00_MODE) 1B
1017 R_REGISTER(00_MODE) 1B
1018 R_REGISTER(00_MODE) 1B
1019 R_REGISTER(00_MODE) 1B
1020 R_REGISTER(00_MODE) 1B
1021 R_REGISTER(00_MODE) 1B
1022 R_REGISTER(00_MODE) 1B
1023 R_REGISTER(00_MODE) 1B
1024 R_REGISTER(00_MODE) 1B
1025 R_REGISTER(00_MODE) 1B
1026 R_REGISTER(00_MODE) 1B
1027 R_REGISTER(00_MODE) 1B
1028 R_REGISTER(00_MODE) 1B
1029 R_REGISTER(00_MODE) 1B
1030 R_REGISTER(00_MODE) 1B
1031 R_REGISTER(00_MODE) 1B
1032 R_REGISTER(00_MODE) 1B
1033 R_REGISTER(00_MODE) 1B
1034 R_REGISTER(00_MODE) 1B
1035 R_REGISTER(00_MODE) 1B
1036 R_REGISTER(00_MODE) 1B
1037 R_REGISTER(00_MODE) 1B
1038 R_REGISTER(00_MODE) 1B
1039 R_REGISTER(00_MODE) 1B
1040 R_REGISTER(00_MODE) 1B
1041 R_REGISTER(00_MODE) 1B
1042 R_REGISTER(00_MODE) 1B
1043 R_REGISTER(00_MODE) 1B
1044 R_REGISTER(00_MODE) 1B
1045 R_REGISTER(00_MODE) 1B
1046 R_REGISTER(00_MODE) 1B
1047 R_REGISTER(00_MODE) 1B
1048 R_REGISTER(00_MODE) 1B
1049 R_REGISTER(00_MODE) 1B
1050 R_REGISTER(00_MODE) 1B
1051 R_REGISTER(00_MODE) 1B
1052 R_REGISTER(00_MODE) 1B
1053 R_REGISTER(00_MODE) 1B
1054 R_REGISTER(00_MODE) 1B
1055 R_REGISTER(00_MODE) 1B
1056 R_REGISTER(00_MODE) 1B
1057 R_REGISTER(00_MODE) 1B
1058 R_REGISTER(00_MODE) 1B
1059 R_REGISTER(00_MODE) 1B
1060 R_REGISTER(00_MODE) 1B
1061 R_REGISTER(00_MODE) 1B
1062 R_REGISTER(00_MODE) 1B
1063 R_REGISTER(00_MODE) 1B
1064 R_REGISTER(00_MODE) 1B
1065 R_REGISTER(00_MODE) 1B
1066 R_REGISTER(00_MODE) 1B
1067 R_REGISTER(00_MODE) 1B
1068 R_REGISTER(00_MODE) 1B
1069 R_REGISTER(00_MODE) 1A
1070 COMMAND(C0_RX)
1071 COMMAND(C0_RX)
1072 COMMAND(A0_STANDBY)
1073 COMMAND(E0_RST_WRPTR)
1074 W_REGISTER(05_FIFO_DATA) 20 00 80 00 80 00 80 00 80 06 19 00 00 00 00 C1
1075 COMMAND(D0_TX)
1076 R_REGISTER(00_MODE) 1B
1077 R_REGISTER(00_MODE) 1B
1078 R_REGISTER(00_MODE) 1B
1079 R_REGISTER(00_MODE) 1B
1080 R_REGISTER(00_MODE) 1B
1081 R_REGISTER(00_MODE) 1B
1082 R_REGISTER(00_MODE) 1B
1083 R_REGISTER(00_MODE) 1B
1084 R_REGISTER(00_MODE) 1B
1085 R_REGISTER(00_MODE) 1B
1086 R_REGISTER(00_MODE) 1B
1087 R_REGISTER(00_MODE) 1B
1088 R_REGISTER(00_MODE) 1B
1089 R_REGISTER(00_MODE) 1B
1090 R_REGISTER(00_MODE) 1B
1091 R_REGISTER(00_MODE) 1B
1092 R_REGISTER(00_MODE) 1B
1093 R_REGISTER(00_MODE) 1B
1094 R_REGISTER(00_MODE) 1B
1095 R_REGISTER(00_MODE) 1B
1096 R_REGISTER(00_MODE) 1B
1097 R_REGISTER(00_MODE) 1B
1098 R_REGISTER(00_MODE) 1B
1099 R_REGISTER(00_MODE) 1B
1100 R_REGISTER(00_MODE) 1B
1101 R_REGISTER(00_MODE) 1B
1102 R_REGISTER(00_MODE) 1B
1103 R_REGISTER(00_MODE) 1B
1104 R_REGISTER(00_MODE) 1B
1105 R_REGISTER(00_MODE) 1B
1106 R_REGISTER(00_MODE) 1B
1107 R_REGISTER(00_MODE) 1B
1108 R_REGISTER(00_MODE) 1B
1109 R_REGISTER(00_MODE) 1B
1110 R_REGISTER(00_MODE) 1B
1111 R_REGISTER(00_MODE) 1B
1112 R_REGISTER(00_MODE) 1B
1113 R_REGISTER(00_MODE) 1B
1114 R_REGISTER(00_MODE) 1B
1115 R_REGISTER(00_MODE) 1B
1116 R_REGISTER(00_MODE) 1B
1117 R_REGISTER(00_MODE) 1B
1118 R_REGISTER(00_MODE) 1B
1119 R_REGISTER(00_MODE) 1B
1120 R_REGISTER(00_MODE) 1B
1121 R_REGISTER(00_MODE) 1B
1122 R_REGISTER(00_MODE) 1B
1123 R_REGISTER(00_MODE) 1B
1124 R_REGISTER(00_MODE) 1B
1125 R_REGISTER(00_MODE) 1B
1126 R_REGISTER(00_MODE) 1B
1127 R_REGISTER(00_MODE) 1B
1128 R_REGISTER(00_MODE) 1B
1129 R_REGISTER(00_MODE) 1B
1130 R_REGISTER(00_MODE) 1B
1131 R_REGISTER(00_MODE) 1B
1132 R_REGISTER(00_MODE) 1B
1133 R_REGISTER(00_MODE) 1B
1134 R_REGISTER(00_MODE) 1B
1135 R_REGISTER(00_MODE) 1B
1136 R_REGISTER(00_MODE) 1B
1137 R_REGISTER(00_MODE) 1B
1138 R_REGISTER(00_MODE) 1B
1139 R_REGISTER(00_MODE) 1B
1140 R_REGISTER(00_MODE) 1B
1141 R_REGISTER(00_MODE) 1B
1142 R_REGISTER(00_MODE) 1B
1143 R_REGISTER(00_MODE) 1B
1144 R_REGISTER(00_MODE) 1B
1145 R_REGISTER(00_MODE) 1B
1146 R_REGISTER(00_MODE) 1B
1147 R_REGISTER(00_MODE) 1B
1148 R_REGISTER(00_MODE) 1B
1149 R_REGISTER(00_MODE) 1B
1150 R_REGISTER(00_MODE) 1B
1151 R_REGISTER(00_MODE) 1B
1152 R_REGISTER(00_MODE) 1A
1153 COMMAND(C0_RX)
1154 COMMAND(C0_RX)
1155 COMMAND(A0_STANDBY)
1156 COMMAND(E0_RST_WRPTR)
1157 W_REGISTER(05_FIFO_DATA) 20 00 80 00 80 00 80 00 80 06 19 00 00 00 00 C1
1158 COMMAND(D0_TX)
1159 R_REGISTER(00_MODE) 1B
1160 R_REGISTER(00_MODE) 1B
1161 R_REGISTER(00_MODE) 1B
1162 R_REGISTER(00_MODE) 1B
1163 R_REGISTER(00_MODE) 1B
1164 R_REGISTER(00_MODE) 1B
1165 R_REGISTER(00_MODE) 1B
1166 R_REGISTER(00_MODE) 1B
1167 R_REGISTER(00_MODE) 1B
1168 R_REGISTER(00_MODE) 1B
1169 R_REGISTER(00_MODE) 1B
1170 R_REGISTER(00_MODE) 1B
1171 R_REGISTER(00_MODE) 1B
1172 R_REGISTER(00_MODE) 1B
1173 R_REGISTER(00_MODE) 1B
1174 R_REGISTER(00_MODE) 1B
1175 R_REGISTER(00_MODE) 1B
1176 R_REGISTER(00_MODE) 1B
1177 R_REGISTER(00_MODE) 1B
1178 R_REGISTER(00_MODE) 1B
1179 R_REGISTER(00_MODE) 1B
1180 R_REGISTER(00_MODE) 1B
1181 R_REGISTER(00_MODE) 1B
1182 R_REGISTER(00_MODE) 1B
1183 R_REGISTER(00_MODE) 1B
1184 R_REGISTER(00_MODE) 1B
1185 R_REGISTER(00_MODE) 1B
1186 R_REGISTER(00_MODE) 1B
1187 R_REGISTER(00_MODE) 1B
1188 R_REGISTER(00_MODE) 1B
1189 R_REGISTER(00_MODE) 1B
1190 R_REGISTER(00_MODE) 1B
1191 R_REGISTER(00_MODE) 1B
1192 R_REGISTER(00_MODE) 1B
1193 R_REGISTER(00_MODE) 1B
1194 R_REGISTER(00_MODE) 1B
1195 R_REGISTER(00_MODE) 1B
1196 R_REGISTER(00_MODE) 1B
1197 R_REGISTER(00_MODE) 1B
1198 R_REGISTER(00_MODE) 1B
1199 R_REGISTER(00_MODE) 1B
1200 R_REGISTER(00_MODE) 1B
1201 R_REGISTER(00_MODE) 1B
1202 R_REGISTER(00_MODE) 1B
1203 R_REGISTER(00_MODE) 1B
1204 R_REGISTER(00_MODE) 1B
1205 R_REGISTER(00_MODE) 1B
1206 R_REGISTER(00_MODE) 1B
1207 R_REGISTER(00_MODE) 1B
1208 R_REGISTER(00_MODE) 1B
1209 R_REGISTER(00_MODE) 1B
1210 R_REGISTER(00_MODE) 1B
1211 R_REGISTER(00_MODE) 1B
1212 R_REGISTER(00_MODE) 1B
1213 R_REGISTER(00_MODE) 1B
1214 R_REGISTER(00_MODE) 1B
1215 R_REGISTER(00_MODE) 1B
1216 R_REGISTER(00_MODE) 1B
1217 R_REGISTER(00_MODE) 1B
1218 R_REGISTER(00_MODE) 1B
1219 R_REGISTER(00_MODE) 1B
1220 R_REGISTER(00_MODE) 1B
1221 R_REGISTER(00_MODE) 1B
1222 R_REGISTER(00_MODE) 1B
1223 R_REGISTER(00_MODE) 1B
1224 R_REGISTER(00_MODE) 1B
1225 R_REGISTER(00_MODE) 1B
1226 R_REGISTER(00_MODE) 1B
1227 R_REGISTER(00_MODE) 1B
1228 R_REGISTER(00_MODE) 1B
1229 R_REGISTER(00_MODE) 1B
1230 R_REGISTER(00_MODE) 1B
1231 R_REGISTER(00_MODE) 1B
1232 R_REGISTER(00_MODE) 1B
1233 R_REGISTER(00_MODE) 1B
1234 R_REGISTER(00_MODE) 1B
1235 R_REGISTER(00_MODE) 1A
1236 COMMAND(C0_RX)
1237 COMMAND(C0_RX)
1238 COMMAND(A0_STANDBY)
1239 COMMAND(E0_RST_WRPTR)
1240 W_REGISTER(05_FIFO_DATA) 20 00 80 00 80 00 80 00 80 06 19 00 00 00 00 C1
1241 COMMAND(D0_TX)
1242 R_REGISTER(00_MODE) 1B
1243 R_REGISTER(00_MODE) 1B
1244 R_REGISTER(00_MODE) 1B
1245 R_REGISTER(00_MODE) 1B
1246 R_REGISTER(00_MODE) 1B
1247 R_REGISTER(00_MODE) 1B
1248 R_REGISTER(00_MODE) 1B
1249 R_REGISTER(00_MODE) 1B
1250 R_REGISTER(00_MODE) 1B
1251 R_REGISTER(00_MODE) 1B
1252 R_REGISTER(00_MODE) 1B
1253 R_REGISTER(00_MODE) 1B
1254 R_REGISTER(00_MODE) 1B
1255 R_REGISTER(00_MODE) 1B
1256 R_REGISTER(00_MODE) 1B
1257 R_REGISTER(00_MODE) 1B
1258 R_REGISTER(00_MODE) 1B
1259 R_REGISTER(00_MODE) 1B
1260 R_REGISTER(00_MODE) 1B
1261 R_REGISTER(00_MODE) 1B
1262 R_REGISTER(00_MODE) 1B
1263 R_REGISTER(00_MODE) 1B
1264 R_REGISTER(00_MODE) 1B
1265 R_REGISTER(00_MODE) 1B
1266 R_REGISTER(00_MODE) 1B
1267 R_REGISTER(00_MODE) 1B
1268 R_REGISTER(00_MODE) 1B
1269 R_REGISTER(00_MODE) 1B
1270 R_REGISTER(00_MODE) 1B
1271 R_REGISTER(00_MODE) 1B
1272 R_REGISTER(00_MODE) 1B
1273 R_REGISTER(00_MODE) 1B
1274 R_REGISTER(00_MODE) 1B
1275 R_REGISTER(00_MODE) 1B
1276 R_REGISTER(00_MODE) 1B
1277 R_REGISTER(00_MODE) 1B
1278 R_REGISTER(00_MODE) 1B
1279 R_REGISTER(00_MODE) 1B
1280 R_REGISTER(00_MODE) 1B
1281 R_REGISTER(00_MODE) 1B
1282 R_REGISTER(00_MODE) 1B
1283 R_REGISTER(00_MODE) 1B
1284 R_REGISTER(00_MODE) 1B
1285 R_REGISTER(00_MODE) 1B
1286 R_REGISTER(00_MODE) 1B
1287 R_REGISTER(00_MODE) 1B
1288 R_REGISTER(00_MODE) 1B
1289 R_REGISTER(00_MODE) 1B
1290 R_REGISTER(00_MODE) 1B
1291 R_REGISTER(00_MODE) 1B
1292 R_REGISTER(00_MODE) 1B
1293 R_REGISTER(00_MODE) 1B
1294 R_REGISTER(00_MODE) 1B
1295 R_REGISTER(00_MODE) 1B
1296 R_REGISTER(00_MODE) 1B
1297 R_REGISTER(00_MODE) 1B
1298 R_REGISTER(00_MODE) 1B
1299 R_REGISTER(00_MODE) 1B
1300 R_REGISTER(00_MODE) 1B
1301 R_REGISTER(00_MODE) 1B
1302 R_REGISTER(00_MODE) 1B
1303 R_REGISTER(00_MODE) 1B
1304 R_REGISTER(00_MODE) 1B
1305 R_REGISTER(00_MODE) 1B
1306 R_REGISTER(00_MODE) 1B
1307 R_REGISTER(00_MODE) 1B
1308 R_REGISTER(00_MODE) 1B
1309 R_REGISTER(00_MODE) 1B
1310 R_REGISTER(00_MODE) 1B
1311 R_REGISTER(00_MODE) 1B
1312 R_REGISTER(00_MODE) 1B
1313 R_REGISTER(00_MODE) 1B
1314 R_REGISTER(00_MODE) 1B
1315 R_REGISTER(00_MODE) 1B
1316 R_REGISTER(00_MODE) 1B
1317 R_REGISTER(00_MODE) 1B
1318 R_REGISTER(00_MODE) 1A
1319 COMMAND(C0_RX)
1320 COMMAND(C0_RX)
1321 COMMAND(A0_STANDBY)
1322 COMMAND(E0_RST_WRPTR)
1323 W_REGISTER(05_FIFO_DATA) 20 00 80 00 80 00 80 00 80 06 19 00 00 00 00 C1
1324 COMMAND(D0_TX)
1325 R_REGISTER(00_MODE) 1B
1326 R_REGISTER(00_MODE) 1B
1327 R_REGISTER(00_MODE) 1B
1328 R_REGISTER(00_MODE) 1B
1329 R_REGISTER(00_MODE) 1B
1330 R_REGISTER(00_MODE) 1B
1331 R_REGISTER(00_MODE) 1B
1332 R_REGISTER(00_MODE) 1B
1333 R_REGISTER(00_MODE) 1B
1334 R_REGISTER(00_MODE) 1B
1335 R_REGISTER(00_MODE) 1B
1336 R_REGISTER(00_MODE) 1B
1337 R_REGISTER(00_MODE) 1B
1338 R_REGISTER(00_MODE) 1B
1339 R_REGISTER(00_MODE) 1B
1340 R_REGISTER(00_MODE) 1B
1341 R_REGISTER(00_MODE) 1B
1342 R_REGISTER(00_MODE) 1B
1343 R_REGISTER(00_MODE) 1B
1344 R_REGISTER(00_MODE) 1B
1345 R_REGISTER(00_MODE) 1B
1346 R_REGISTER(00_MODE) 1B
1347 R_REGISTER(00_MODE) 1B
1348 R_REGISTER(00_MODE) 1B
1349 R_REGISTER(00_MODE) 1B
1350 R_REGISTER(00_MODE) 1B
1351 R_REGISTER(00_MODE) 1B
1352 R_REGISTER(00_MODE) 1B
1353 R_REGISTER(00_MODE) 1B
1354 R_REGISTER(00_MODE) 1B
1355 R_REGISTER(00_MODE) 1B
1356 R_REGISTER(00_MODE) 1B
1357 R_REGISTER(00_MODE) 1B
1358 R_REGISTER(00_MODE) 1B
1359 R_REGISTER(00_MODE) 1B
1360 R_REGISTER(00_MODE) 1B
1361 R_REGISTER(00_MODE) 1B
1362 R_REGISTER(00_MODE) 1B
1363 R_REGISTER(00_MODE) 1B
1364 R_REGISTER(00_MODE) 1B
1365 R_REGISTER(00_MODE) 1B
1366 R_REGISTER(00_MODE) 1B
1367 R_REGISTER(00_MODE) 1B
1368 R_REGISTER(00_MODE) 1B
1369 R_REGISTER(00_MODE) 1B
1370 R_REGISTER(00_MODE) 1B
1371 R_REGISTER(00_MODE) 1B
1372 R_REGISTER(00_MODE) 1B
1373 R_REGISTER(00_MODE) 1B
1374 R_REGISTER(00_MODE) 1B
1375 R_REGISTER(00_MODE) 1B
1376 R_REGISTER(00_MODE) 1B
1377 R_REGISTER(00_MODE) 1B
1378 R_REGISTER(00_MODE) 1B
1379 R_REGISTER(00_MODE) 1B
1380 R_REGISTER(00_MODE) 1B
1381 R_REGISTER(00_MODE) 1B
1382 R_REGISTER(00_MODE) 1B
1383 R_REGISTER(00_MODE) 1B
1384 R_REGISTER(00_MODE) 1B
1385 R_REGISTER(00_MODE) 1B
1386 R_REGISTER(00_MODE) 1B
1387 R_REGISTER(00_MODE) 1B
1388 R_REGISTER(00_MODE) 1B
1389 R_REGISTER(00_MODE) 1B
1390 R_REGISTER(00_MODE) 1B
1391 R_REGISTER(00_MODE) 1B
1392 R_REGISTER(00_MODE) 1B
1393 R_REGISTER(00_MODE) 1B
1394 R_REGISTER(00_MODE) 1B
1395 R_REGISTER(00_MODE) 1B
1396 R_REGISTER(00_MODE) 1B
1397 R_REGISTER(00_MODE) 1B
1398 R_REGISTER(00_MODE) 1B
1399 R_REGISTER(00_MODE) 1B
1400 R_REGISTER(00_MODE) 1B
1401 R_REGISTER(00_MODE) 1A
1402 COMMAND(C0_RX)
1403 COMMAND(C0_RX)
1404 COMMAND(A0_STANDBY)
1405 COMMAND(E0_RST_WRPTR)
1406 W_REGISTER(05_FIFO_DATA) 20 00 80 00 80 00 80 00 80 06 19 00 00 00 00 C1
1407 COMMAND(D0_TX)
1408 R_REGISTER(00_MODE) 1B
1409 R_REGISTER(00_MODE) 1B
1410 R_REGISTER(00_MODE) 1B
1411 R_REGISTER(00_MODE) 1B
1412 R_REGISTER(00_MODE) 1B
1413 R_REGISTER(00_MODE) 1B
1414 R_REGISTER(00_MODE) 1B
1415 R_REGISTER(00_MODE) 1B
1416 R_REGISTER(00_MODE) 1B
1417 R_REGISTER(00_MODE) 1B
1418 R_REGISTER(00_MODE) 1B
1419 R_REGISTER(00_MODE) 1B
1420 R_REGISTER(00_MODE) 1B
1421 R_REGISTER(00_MODE) 1B
1422 R_REGISTER(00_MODE) 1B
1423 R_REGISTER(00_MODE) 1B
1424 R_REGISTER(00_MODE) 1B
1425 R_REGISTER(00_MODE) 1B
1426 R_REGISTER(00_MODE) 1B
1427 R_REGISTER(00_MODE) 1B
1428 R_REGISTER(00_MODE) 1B
1429 R_REGISTER(00_MODE) 1B
1430 R_REGISTER(00_MODE) 1B
1431 R_REGISTER(00_MODE) 1B
1432 R_REGISTER(00_MODE) 1B
1433 R_REGISTER(00_MODE) 1B
1434 R_REGISTER(00_MODE) 1B
1435 R_REGISTER(00_MODE) 1B
1436 R_REGISTER(00_MODE) 1B
1437 R_REGISTER(00_MODE) 1B
1438 R_REGISTER(00_MODE) 1B
1439 R_REGISTER(00_MODE) 1B
1440 R_REGISTER(00_MODE) 1B
1441 R_REGISTER(00_MODE) 1B
1442 R_REGISTER(00_MODE) 1B
1443 R_REGISTER(00_MODE) 1B
1444 R_REGISTER(00_MODE) 1B
1445 R_REGISTER(00_MODE) 1B
1446 R_REGISTER(00_MODE) 1B
1447 R_REGISTER(00_MODE) 1B
1448 R_REGISTER(00_MODE) 1B
1449 R_REGISTER(00_MODE) 1B
1450 R_REGISTER(00_MODE) 1B
1451 R_REGISTER(00_MODE) 1B
1452 R_REGISTER(00_MODE) 1B
1453 R_REGISTER(00_MODE) 1B
1454 R_REGISTER(00_MODE) 1B
1455 R_REGISTER(00_MODE) 1B
1456 R_REGISTER(00_MODE) 1B
1457 R_REGISTER(00_MODE) 1B
1458 R_REGISTER(00_MODE) 1B
1459 R_REGISTER(00_MODE) 1B
1460 R_REGISTER(00_MODE) 1B
1461 R_REGISTER(00_MODE) 1B
1462 R_REGISTER(00_MODE) 1B
1463 R_REGISTER(00_MODE) 1B
1464 R_REGISTER(00_MODE) 1B
1465 R_REGISTER(00_MODE) 1B
1466 R_REGISTER(00_MODE) 1B
1467 R_REGISTER(00_MODE) 1B
1468 R_REGISTER(00_MODE) 1B
1469 R_REGISTER(00_MODE) 1B
1470 R_REGISTER(00_MODE) 1B
1471 R_REGISTER(00_MODE) 1B
1472 R_REGISTER(00_MODE) 1B
1473 R_REGISTER(00_MODE) 1B
1474 R_REGISTER(00_MODE) 1B
1475 R_REGISTER(00_MODE) 1B
1476 R_REGISTER(00_MODE) 1B
1477 R_REGISTER(00_MODE) 1B
1478 R_REGISTER(00_MODE) 1B
1479 R_REGISTER(00_MODE) 1B
1480 R_REGISTER(00_MODE) 1B
1481 R_REGISTER(00_MODE) 1B
1482 R_REGISTER(00_MODE) 1B
1483 R_REGISTER(00_MODE) 1B
1484 R_REGISTER(00_MODE) 1A
1485 COMMAND(C0_RX)
1486 COMMAND(C0_RX)
1487 COMMAND(A0_STANDBY)
1488 COMMAND(E0_RST_WRPTR)
1489 W_REGISTER(05_FIFO_DATA) 20 00 80 00 80 00 80 00 80 06 19 00 00 00 00 C1
1490 COMMAND(D0_TX)
1491 R_REGISTER(00_MODE) 1B
1492 R_REGISTER(00_MODE) 1B
1493 R_REGISTER(00_MODE) 1B
1494 R_REGISTER(00_MODE) 1B
1495 R_REGISTER(00_MODE) 1B
1496 R_REGISTER(00_MODE) 1B
1497 R_REGISTER(00_MODE) 1B
1498 R_REGISTER(00_MODE) 1B
1499 R_REGISTER(00_MODE) 1B
1500 R_REGISTER(00_MODE) 1B
1501 R_REGISTER(00_MODE) 1B
1502 R_REGISTER(00_MODE) 1B
1503 R_REGISTER(00_MODE) 1B
1504 R_REGISTER(00_MODE) 1B
1505 R_REGISTER(00_MODE) 1B
1506 R_REGISTER(00_MODE) 1B
1507 R_REGISTER(00_MODE) 1B
1508 R_REGISTER(00_MODE) 1B
1509 R_REGISTER(00_MODE) 1B
1510 R_REGISTER(00_MODE) 1B
1511 R_REGISTER(00_MODE) 1B
1512 R_REGISTER(00_MODE) 1B
1513 R_REGISTER(00_MODE) 1B
1514 R_REGISTER(00_MODE) 1B
1515 R_REGISTER(00_MODE) 1B
1516 R_REGISTER(00_MODE) 1B
1517 R_REGISTER(00_MODE) 1B
1518 R_REGISTER(00_MODE) 1B
1519 R_REGISTER(00_MODE) 1B
1520 R_REGISTER(00_MODE) 1B
1521 R_REGISTER(00_MODE) 1B
1522 R_REGISTER(00_MODE) 1B
1523 R_REGISTER(00_MODE) 1B
1524 R_REGISTER(00_MODE) 1B
1525 R_REGISTER(00_MODE) 1B
1526 R_REGISTER(00_MODE) 1B
1527 R_REGISTER(00_MODE) 1B
1528 R_REGISTER(00_MODE) 1B
1529 R_REGISTER(00_MODE) 1B
1530 R_REGISTER(00_MODE) 1B
1531 R_REGISTER(00_MODE) 1B
1532 R_REGISTER(00_MODE) 1B
1533 R_REGISTER(00_MODE) 1B
1534 R_REGISTER(00_MODE) 1B
1535 R_REGISTER(00_MODE) 1B
1536 R_REGISTER(00_MODE) 1B
1537 R_REGISTER(00_MODE) 1B
1538 R_REGISTER(00_MODE) 1B
1539 R_REGISTER(00_MODE) 1B
1540 R_REGISTER(00_MODE) 1B
1541 R_REGISTER(00_MODE) 1B
1542 R_REGISTER(00_MODE) 1B
1543 R_REGISTER(00_MODE) 1B
1544 R_REGISTER(00_MODE) 1B
1545 R_REGISTER(00_MODE) 1B
1546 R_REGISTER(00_MODE) 1B
1547 R_REGISTER(00_MODE) 1B
1548 R_REGISTER(00_MODE) 1B
1549 R_REGISTER(00_MODE) 1B
1550 R_REGISTER(00_MODE) 1B
1551 R_REGISTER(00_MODE) 1B
1552 R_REGISTER(00_MODE) 1B
1553 R_REGISTER(00_MODE) 1B
1554 R_REGISTER(00_MODE) 1B
1555 R_REGISTER(00_MODE) 1B
1556 R_REGISTER(00_MODE) 1B
1557 R_REGISTER(00_MODE) 1B
1558 R_REGISTER(00_MODE) 1B
1559 R_REGISTER(00_MODE) 1B
1560 R_REGISTER(00_MODE) 1B
1561 R_REGISTER(00_MODE) 1B
1562 R_REGISTER(00_MODE) 1B
1563 R_REGISTER(00_MODE) 1B
1564 R_REGISTER(00_MODE) 1B
1565 R_REGISTER(00_MODE) 1B
1566 R_REGISTER(00_MODE) 1B
1567 R_REGISTER(00_MODE) 1A
1568 COMMAND(C0_RX)
1569 COMMAND(C0_RX)
1570 COMMAND(A0_STANDBY)
1571 COMMAND(E0_RST_WRPTR)
1572 W_REGISTER(05_FIFO_DATA) 20 00 80 00 80 00 80 00 80 06 19 00 00 00 00 C1
1573 COMMAND(D0_TX)
1574 R_REGISTER(00_MODE) 1B
1575 R_REGISTER(00_MODE) 1B
1576 R_REGISTER(00_MODE) 1B
1577 R_REGISTER(00_MODE) 1B
1578 R_REGISTER(00_MODE) 1B
1579 R_REGISTER(00_MODE) 1B
1580 R_REGISTER(00_MODE) 1B
...TX doesn't even check rssi level to select a rf channel ...
This is interesting:
70 W_REGISTER(06_ID_DATA) DF B7 A4 DC (comes from nowhere ?)
71 W_REGISTER(0F_PLL_I) 6E (this is also one of the "allowed channels" of the H107x protocols)
Maybe there's a fixed table of possible ID_DATA and corresponding rf channel on the RX side... if this is the case we won't be able to crack that with a TX dump only, that will require more transmitters dump or probably a RX dump could help (tx off), but maybe that won't be easy to solder analyzer probes on the rx side ...
packets (TX ON , Quad ON , Compas Cali 1 , Compas Cali 2 , Start Motor , Stop Motor , Start Motor , Stop Motor):
drive.google.com/file/d/0B9Xtm43hpQfbZXh...RGs/view?usp=sharing
Last edit: 09 Jan 2016 00:56 by goebish.
Please Log in or Create an account to join the conversation.
- delta75
-
- Offline
Less
More
- Posts: 51
08 Jan 2016 23:28 #41528
by delta75
Replied by delta75 on topic The New Hubsans
ok,
i have another H501s, but TX firmware and H501s firmware version older
new firmware H501s + older TX = bind ok , but NO Cali message
i will save more dump, older H501s and new H501s
i have another H501s, but TX firmware and H501s firmware version older
new firmware H501s + older TX = bind ok , but NO Cali message
i will save more dump, older H501s and new H501s
Please Log in or Create an account to join the conversation.
- goebish
-
- Offline
- I Void Warranties
Less
More
- Posts: 2631
08 Jan 2016 23:30 #41529
by goebish
Replied by goebish on topic The New Hubsans
Any way to have some RX dumps ? (with tx off)
That would really help.
That would really help.
Please Log in or Create an account to join the conversation.
- goebish
-
- Offline
- I Void Warranties
Less
More
- Posts: 2631
09 Jan 2016 13:21 - 09 Jan 2016 13:50 #41554
by goebish
Replied by goebish on topic The New Hubsans
Just a question, do you have to start the aircraft in bind mode or something the first time you use it ?
I'm asking because I find strange the TX transmits data packets on a fixed ID DATA and RF channel without negotiating first ...
... maybe I should just try to find and read the H501S manual ...
I'm asking because I find strange the TX transmits data packets on a fixed ID DATA and RF channel without negotiating first ...
... maybe I should just try to find and read the H501S manual ...
Last edit: 09 Jan 2016 13:50 by goebish.
Please Log in or Create an account to join the conversation.
- delta75
-
- Offline
Less
More
- Posts: 51
09 Jan 2016 13:25 #41555
by delta75
Replied by delta75 on topic The New Hubsans
how to dump RX ONLY?
Please Log in or Create an account to join the conversation.
- goebish
-
- Offline
- I Void Warranties
Less
More
- Posts: 2631
09 Jan 2016 13:33 #41556
by goebish
Replied by goebish on topic The New Hubsans
Take a few pictures of the flight controller to check where (if possible) to connect the analyzer.
Please Log in or Create an account to join the conversation.
- goebish
-
- Offline
- I Void Warranties
Less
More
- Posts: 2631
09 Jan 2016 13:49 #41557
by goebish
Replied by goebish on topic The New Hubsans
Do you know if I can download the H501S manual somewhere ?
That should make a few things more obvious to me.
That should make a few things more obvious to me.
Please Log in or Create an account to join the conversation.
- delta75
-
- Offline
Less
More
- Posts: 51
09 Jan 2016 14:57 #41558
by delta75
Replied by delta75 on topic The New Hubsans
H501s old firmware version test
bind ok , cali 1, cali2 ok.zip
dronestory.tistory.com/attachment/cfile2...4056911F1E245D65.zip
bind ok, cali1 , cali2 ok test 2.zip
dronestory.tistory.com/attachment/cfile8...4056911F21191BCE.zip
bind ok, cali1, cali2 , start, stop,start,stop.zip
dronestory.tistory.com/attachment/cfile3...4056911F240BCB66.zip
bind ok, cali1, cali2, tx off , tx on, tx off , tx on.zip
dronestory.tistory.com/attachment/cfile4...4056911F2723FDDE.zip
bind ok, no cali test 2.zip
dronestory.tistory.com/attachment/cfile2...4056911F2901C66D.zip
bind ok, no cali.zip
dronestory.tistory.com/attachment/cfile3...4056911F2C1972D8.zip
start , full throttle, min throttle, full throttle, min throttle
dronestory.tistory.com/attachment/cfile5...4056911F3031215F.zip
tx only on.zip
dronestory.tistory.com/attachment/cfile9...4056911F322D77A6.zip
bind ok , cali 1, cali2 ok.zip
dronestory.tistory.com/attachment/cfile2...4056911F1E245D65.zip
bind ok, cali1 , cali2 ok test 2.zip
dronestory.tistory.com/attachment/cfile8...4056911F21191BCE.zip
bind ok, cali1, cali2 , start, stop,start,stop.zip
dronestory.tistory.com/attachment/cfile3...4056911F240BCB66.zip
bind ok, cali1, cali2, tx off , tx on, tx off , tx on.zip
dronestory.tistory.com/attachment/cfile4...4056911F2723FDDE.zip
bind ok, no cali test 2.zip
dronestory.tistory.com/attachment/cfile2...4056911F2901C66D.zip
bind ok, no cali.zip
dronestory.tistory.com/attachment/cfile3...4056911F2C1972D8.zip
start , full throttle, min throttle, full throttle, min throttle
dronestory.tistory.com/attachment/cfile5...4056911F3031215F.zip
tx only on.zip
dronestory.tistory.com/attachment/cfile9...4056911F322D77A6.zip
Please Log in or Create an account to join the conversation.
- delta75
-
- Offline
Less
More
- Posts: 51
09 Jan 2016 15:00 #41559
by delta75
Replied by delta75 on topic The New Hubsans
H501s Quad PCB
i think it's same TX A7105 module
and i connect Analyzer
i think it's same TX A7105 module
and i connect Analyzer
Please Log in or Create an account to join the conversation.
- delta75
-
- Offline
Less
More
- Posts: 51
09 Jan 2016 15:11 #41561
by delta75
Replied by delta75 on topic The New Hubsans
H501s RX SPI DUMP
QUAD only on
delta75.myDS.me:5000/fbsharing/iRbxpC7s
QUAD ON, BIND OK, NO CALI
delta75.myDS.me:5000/fbsharing/7SlSNa4Q
BIND OK, CALI 1, CALI 2 OK
delta75.myDS.me:5000/fbsharing/G3szGO1L
QUAD only on
delta75.myDS.me:5000/fbsharing/iRbxpC7s
QUAD ON, BIND OK, NO CALI
delta75.myDS.me:5000/fbsharing/7SlSNa4Q
BIND OK, CALI 1, CALI 2 OK
delta75.myDS.me:5000/fbsharing/G3szGO1L
Please Log in or Create an account to join the conversation.
- goebish
-
- Offline
- I Void Warranties
Less
More
- Posts: 2631
09 Jan 2016 15:18 #41562
by goebish
Replied by goebish on topic The New Hubsans
Wow, thanks We're lucky that there's is a "big" RF module on the RX side
We're lucky that there's is a "big" RF module on the RX side Please Log in or Create an account to join the conversation.
- delta75
-
- Offline
Less
More
- Posts: 51
09 Jan 2016 15:21 #41563
by delta75
Replied by delta75 on topic The New Hubsans
good luck~
thanks
thanks
Please Log in or Create an account to join the conversation.
- goebish
-
- Offline
- I Void Warranties
Less
More
- Posts: 2631
09 Jan 2016 16:01 #41565
by goebish
Replied by goebish on topic The New Hubsans
Ok, I still don't understand how it binds initially to select an ID DATA:
DF B7 A4 DC in the first dumps you sent (newer H501S ?)
and 8C FC 1E FB in the second dumps (older H501S ?) and RX dumps.
Is there any initial bind procedure ?
DF B7 A4 DC in the first dumps you sent (newer H501S ?)
and 8C FC 1E FB in the second dumps (older H501S ?) and RX dumps.
Is there any initial bind procedure ?
Please Log in or Create an account to join the conversation.
- delta75
-
- Offline
Less
More
- Posts: 51
09 Jan 2016 22:59 - 09 Jan 2016 23:07 #41577
by delta75
Replied by delta75 on topic The New Hubsans
yes only power on
quad on -> tx on
no binding plug type
i try to spi dump newer firmware H501s
quad on -> tx on
no binding plug type
i try to spi dump newer firmware H501s
Last edit: 09 Jan 2016 23:07 by delta75.
Please Log in or Create an account to join the conversation.
- dc59
-
- Offline
Less
More
- Posts: 799
09 Jan 2016 23:25 #41579
by dc59
You can find manual here :
www.hubsan.com/productinfo_21.html
Replied by dc59 on topic The New Hubsans
goebish wrote: Do you know if I can download the H501S manual somewhere ?
That should make a few things more obvious to me.
You can find manual here :
www.hubsan.com/productinfo_21.html
Please Log in or Create an account to join the conversation.
Time to create page: 0.094 seconds
-
Home
-
Forum
-
Development
-
Protocol Development
- The New Hubsans
