25 May 2016 00:20 #49152 by C0ckpitvue 777
Replied by C0ckpitvue 777 on topic 3in1 / 4in1 RF module
For what it's worth banggood shipped my 3in1 module out today but yet they site is still set at preordering.Just wondering which module has the best range in a devo 10?

Please Log in or Create an account to join the conversation.

More
25 May 2016 03:07 #49161 by dc59
Replied by dc59 on topic 3in1 / 4in1 RF module

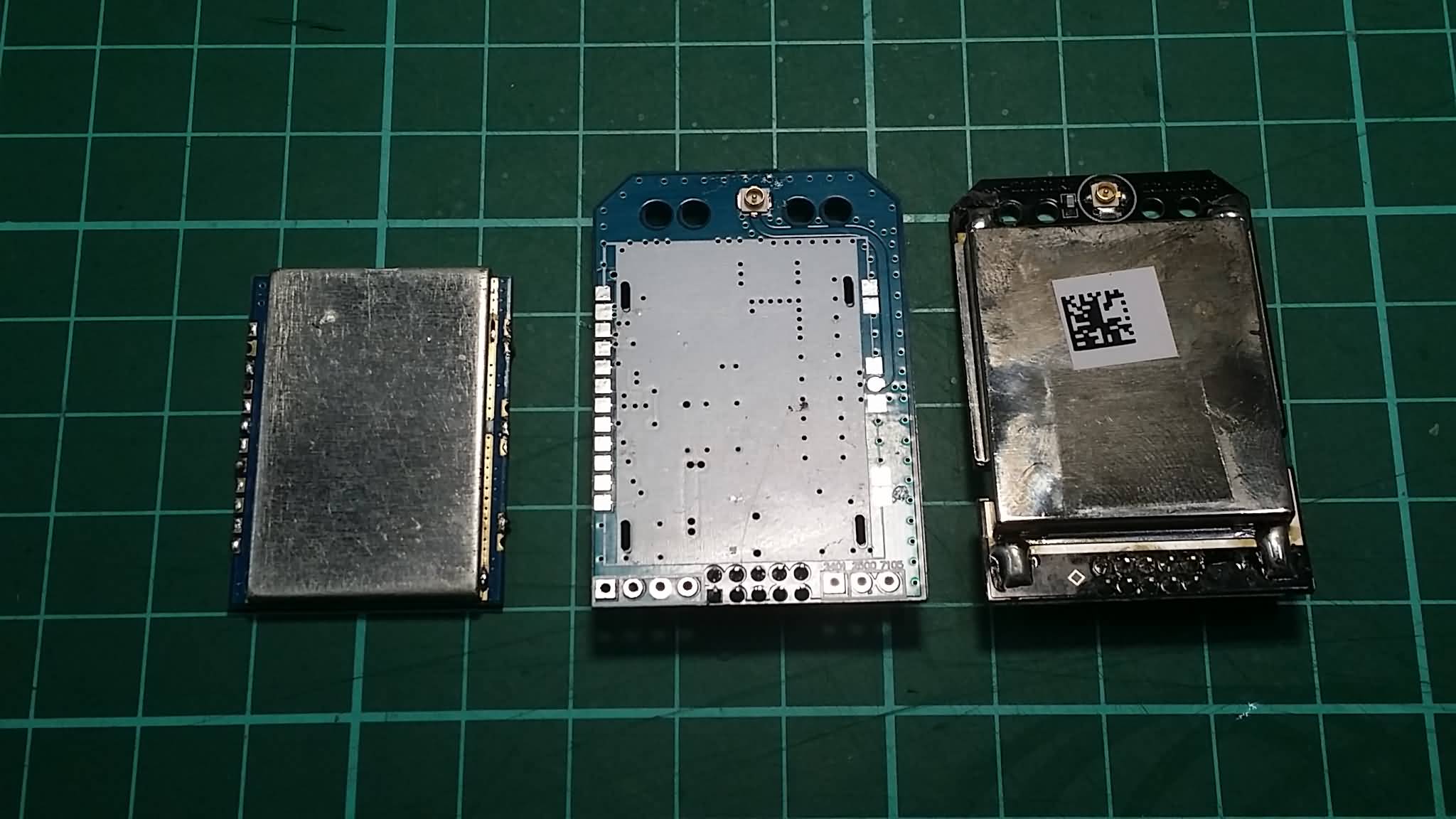

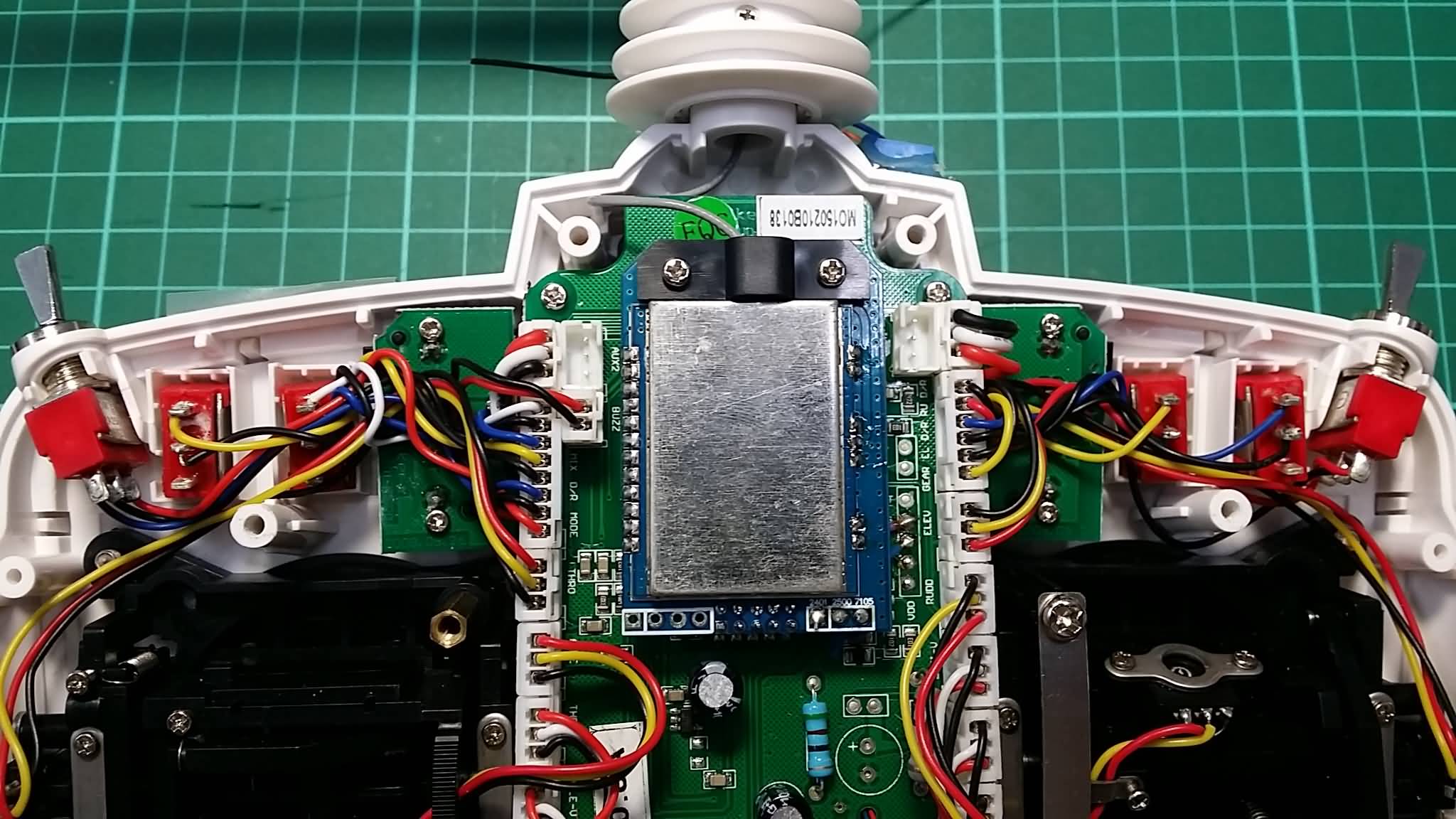

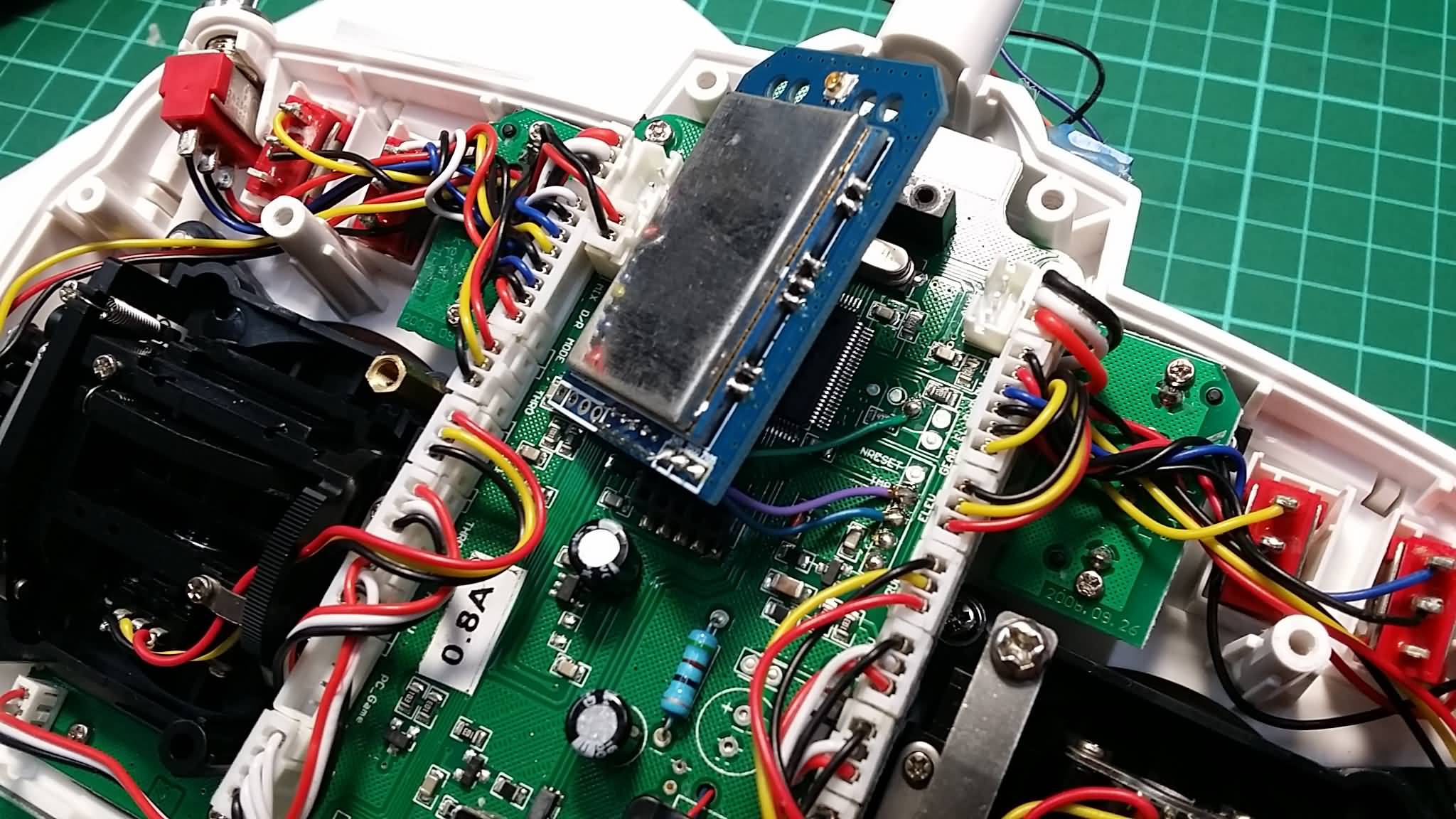

New 4in1 for DEVO TX with adapter board.





Attachments:

Please Log in or Create an account to join the conversation.

More
25 May 2016 05:36 #49178 by Gerry
Replied by Gerry on topic 3in1 / 4in1 RF module
I hope this is the right place to ask this question.
I have a Devo 7e with range mod, XL7105-D03B and NRF PA/LNA modules installed as well as 2 x 3 way switches.
I use 4 x AA LSD 2500mah rechargeable batteries. I also have a 2s 1800mah lipo as a spare.

I want to install CC2500 module as well as per page 5 of this thread.
Regarding the voltage regulator of the 7e, do I need to worry about it or will the 7e be reliable and glitch free as is?
Is it safe to use the 2s lipo with the 7e as is?

Devo 7e A7105 NRF24L01 CC2500 2x3 way & voice, Devo 12e 4 in 1 & voice.
FFS (Forever Fixing Stuff)

Please Log in or Create an account to join the conversation.

More
25 May 2016 08:43 #49186 by ursus69
Replied by ursus69 on topic 3in1 / 4in1 RF module

dc59 wrote: New 4in1 for DEVO TX with adapter board.






Looks good!!
Works well? Ranges?

Please Log in or Create an account to join the conversation.

More
25 May 2016 09:41 #49188 by valley_nomad
Replied by valley_nomad on topic 3in1 / 4in1 RF module

dc59 wrote: New 4in1 for DEVO TX with adapter board.
...


Does it have LNA issue?

Please Log in or Create an account to join the conversation.

More
25 May 2016 10:03 #49189 by dc59
Replied by dc59 on topic 3in1 / 4in1 RF module

ursus69 wrote: Looks good!!
Works well? Ranges?


All 4 RF chips work well , for indoor 3mw test , almost as same as individual RF module,
but I don't have time to do an outdoor range test for a while.

Please Log in or Create an account to join the conversation.

More
25 May 2016 10:10 #49191 by dc59
Replied by dc59 on topic 3in1 / 4in1 RF module

valley_nomad wrote: Does it have LNA issue?


My 4in1 module is first batch(prototype?) , the seller told me there is only one problem , LNA is not working on A7105 chip,
CYRF/CC2500/NRF24L01 no problem with LNA issue , but I don't have any telemetry receiver for A7105 and NRF24L01,
can't confirm that.

New batch 4in1 module have no any LNA issue with all RF chips.

Please Log in or Create an account to join the conversation.

More
25 May 2016 14:30 - 25 May 2016 14:31 #49199 by wasp09
Replied by wasp09 on topic 3in1 / 4in1 RF module

Gerry wrote: I hope this is the right place to ask this question.
I have a Devo 7e with range mod, XL7105-D03B and NRF PA/LNA modules installed as well as 2 x 3 way switches.
I use 4 x AA LSD 2500mah rechargeable batteries. I also have a 2s 1800mah lipo as a spare.

I want to install CC2500 module as well as per page 5 of this thread.
Regarding the voltage regulator of the 7e, do I need to worry about it or will the 7e be reliable and glitch free as is?
Is it safe to use the 2s lipo with the 7e as is?


I am using 2S 900mAHish LiPo in my devo 7e. The original regulator of the 7E cut off on running certain protocol (e.g. KN). It is definitely too small. I added an extra regulator to feed my A7105 and NRF24L01 RF modules. I have no room to add an CC2500 module since I also have a 8S walkera RF module to replace the 6S.
Last edit: 25 May 2016 14:31 by wasp09.

Please Log in or Create an account to join the conversation.

More
25 May 2016 14:41 - 25 May 2016 16:30 #49200 by HappyHarry
Replied by HappyHarry on topic 3in1 / 4in1 RF module

dc59 wrote: New 4in1 for DEVO TX with adapter board.


this is the same one cmPang shows here >> www.deviationtx.com/forum/7-development/...dule?start=420#48287

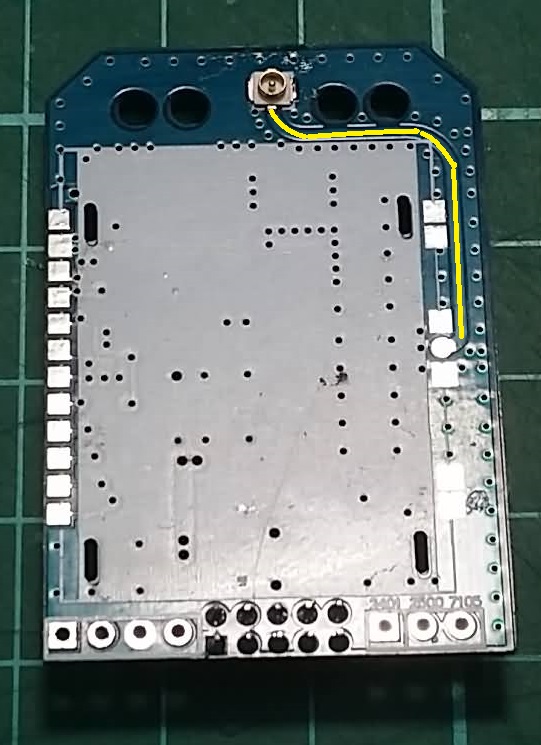

and the only thing i don't like the look of is the path the antenna takes to the ufl connector, that trace is most likely a full 1/4 wave groundplane antenna itself :/

Attachments:
Last edit: 25 May 2016 16:30 by HappyHarry.

Please Log in or Create an account to join the conversation.

More
25 May 2016 16:48 - 25 May 2016 16:48 #49206 by compman2
Replied by compman2 on topic 3in1 / 4in1 RF module
Yes this happened to me to. My 3 in 1 order shows shipped even though the items shows pre-order with ship date of June 9th. I was actually thinking of canceling and just using individual modules, guess my hand is forced. Currently don't use telemetry so I guess no big loss. I will use it as is and if the 4 in 1 gets perfected may replace it later.

computer nerd, hobby collector, proud father
Last edit: 25 May 2016 16:48 by compman2.

Please Log in or Create an account to join the conversation.

More
25 May 2016 16:57 #49207 by compman2
Replied by compman2 on topic 3in1 / 4in1 RF module

and the only thing i don't like the look of is the path the antenna takes to the ufl connector, that trace is most likely a full 1/4 wave groundplane antenna itself :/


couldn't the antenna trace be cut as it comes out of the shield and an antenna pigtail be soldered to the board directly. There are 3 pads there.

It would also be easy to move the ufl connector to that location.

computer nerd, hobby collector, proud father

Please Log in or Create an account to join the conversation.

More
25 May 2016 17:21 - 25 May 2016 17:31 #49208 by wasp09
Replied by wasp09 on topic 3in1 / 4in1 RF module

midelic wrote: CD4052 on 4in1 module and is not used for switching 2.4Ghz.It is connected with PA/LNA chip TXEN pin and PE1 PE1 Peregrine antenna swicth pins.
If you check data sheet of CD4052 you'll understand how it is working

Good, that is what we need. Did you get the diagram by tracing the 4 in 1 PCB?
Anyway PE1/PE2 should be used to select which RF chip the devo is controlling then, not just leaving them unconnected.

We need a couple of spare pins on the MCU and probably a line added to each xxx_SetTxExMode() to make sure the TXRX control is from the correct chip. Theoretically we can switch it manually as well, just wire a couple of switches onto the 2 pins and switch to the RF chip we are using. :D
Last edit: 25 May 2016 17:31 by wasp09.

Please Log in or Create an account to join the conversation.

More
25 May 2016 18:47 #49211 by YJ
Replied by YJ on topic 3in1 / 4in1 RF module

Gerry wrote: I hope this is the right place to ask this question.
I have a Devo 7e with range mod, XL7105-D03B and NRF PA/LNA modules installed as well as 2 x 3 way switches.
I use 4 x AA LSD 2500mah rechargeable batteries. I also have a 2s 1800mah lipo as a spare.

I want to install CC2500 module as well as per page 5 of this thread.
Regarding the voltage regulator of the 7e, do I need to worry about it or will the 7e be reliable and glitch free as is?
Is it safe to use the 2s lipo with the 7e as is?


There are multiple voltage regulators in d7e. If you are talking about the small one, if it's not getting hot now (before mods), then you probably don't have to "worry about it" if not, then you'll have to replace it with a larger one (plus a 1ohm resistor at the output) to get even the un-modded d7e to work reliably.

Regardless of the on-board voltage regulator situation, it's a good idea to have a separate regulator for the additional module/modules.

I don't see a problem using 2s lipo on this transmitter (again, make sure the small 3.3v on-board ldo does not get hot). But then what is the benefit if using the 3s lipo as a direct replacement for 4 aa nimb batteries? With all the linear voltage regulators, the transmitter will be drawing the same amount of current (i.e, run time will not be longer) an you lose the capability of charging the battery in the transmitter. If you'd like to take advantage of the higher voltage of 2s lipo to get longer run time, I suggest inserting a 5v switching regulator before the diode that is at ~5 o'clock of the rf module. You'll see significant improvement in run-time compared to using the 2s lipo directly.

Please Log in or Create an account to join the conversation.

More
25 May 2016 19:13 - 25 May 2016 19:18 #49214 by HappyHarry
Replied by HappyHarry on topic 3in1 / 4in1 RF module

compman2 wrote:

and the only thing i don't like the look of is the path the antenna takes to the ufl connector, that trace is most likely a full 1/4 wave groundplane antenna itself :/


couldn't the antenna trace be cut as it comes out of the shield and an antenna pigtail be soldered to the board directly. There are 3 pads there.

It would also be easy to move the ufl connector to that location.


yeah that's most likely what i'll do, even the flysky/frsky version has the ufl connector right at the edge of the 4in1 board so i don't know why he moved it so far away on the devo version.

for mounting the ufl there i think the ground pads are too wide apart and the rf pad looks wide enough to bridge to the ground pads on the ufl, also having tried soldering these surface mount ufl's before i wouldn't say it would be easy to solder one there lol
Last edit: 25 May 2016 19:18 by HappyHarry.

Please Log in or Create an account to join the conversation.

More
25 May 2016 20:51 #49223 by victzh
Replied by victzh on topic 3in1 / 4in1 RF module
@wasp09, @HappyHarry, what are you trying to achieve? To connect 4-in-1 RF module to Devo 7E?

Please Log in or Create an account to join the conversation.

More
25 May 2016 21:18 #49226 by HappyHarry
Replied by HappyHarry on topic 3in1 / 4in1 RF module
yes, i have one of the new devo versions of the 4in1 en route (that handles antenna switching like the 3in1) and will be mounting it in an 7e-256 that has the stock cyrf module removed, this is mainly for aesthetic reasons of only having one antenna, but i'd still like 4 fully working modules and good performance

Please Log in or Create an account to join the conversation.

More
25 May 2016 21:47 #49227 by victzh
Replied by victzh on topic 3in1 / 4in1 RF module
If you have Devo 10 version you just need to route signals from Devo 7E mounting place to Devo 10 header. It has all necessary signals and power because despite CYRF modules in Devo 10 and 7E physically different the are basically the same inside, including 5v power supply.

If you don't like RF path on this module (I don't like it either, it does not look like 50 Ohm transmission line) I made a module with 4-in-1 mounted 90 degrees so that the path to U.Fl is really short. I plan to make several experiments to figure out viability of my solution. Do you know SKUs for new 4-in-1 modules?

Please Log in or Create an account to join the conversation.

More
25 May 2016 22:39 #49230 by HappyHarry
Replied by HappyHarry on topic 3in1 / 4in1 RF module
yes that's correct, and it's good that it uses the 5V line as it wont cause issues with the 7e 3.3V ldo being overworked, cmPang already has one of these new devo versions in his own 7e, and he posted the hookup locations image below


when you get your solution worked out i would be interested in purchasing a pcb, as in the 7e i don't need the header pins so orientation makes no difference, but until then i will break the rf trace as close to the 4in1 as possible and solder a coax to rp-sma header wire right to the 4in1 board terminals. i'm sorry i don't have the new versions sku, i don't think it has one yet as he hasn't listed them on taobao for sale yet, another member arranged the purchase for me directly from the seller.

Please Log in or Create an account to join the conversation.

More
26 May 2016 00:20 #49234 by victzh
Replied by victzh on topic 3in1 / 4in1 RF module
Apparently, I lost track. I believed this new module just inserts into Devo 10 receptacle, but it's not so. It needs to be connected by extra wires. My module is just inserted into Devo 10/Radiolink AT9.

Please Log in or Create an account to join the conversation.

More
26 May 2016 00:41 #49238 by dc59
Replied by dc59 on topic 3in1 / 4in1 RF module
I hope someday there is a new all in 1 module can really plug and play, no need any soldering job, is it possible ? just like PB's universal module project.

Please Log in or Create an account to join the conversation.
