skyartec compatibility

Hexperience
Offline

06 Jul 2013 16:45 #12015 by Hexperience

Replied by Hexperience on topic skyartec compatibility

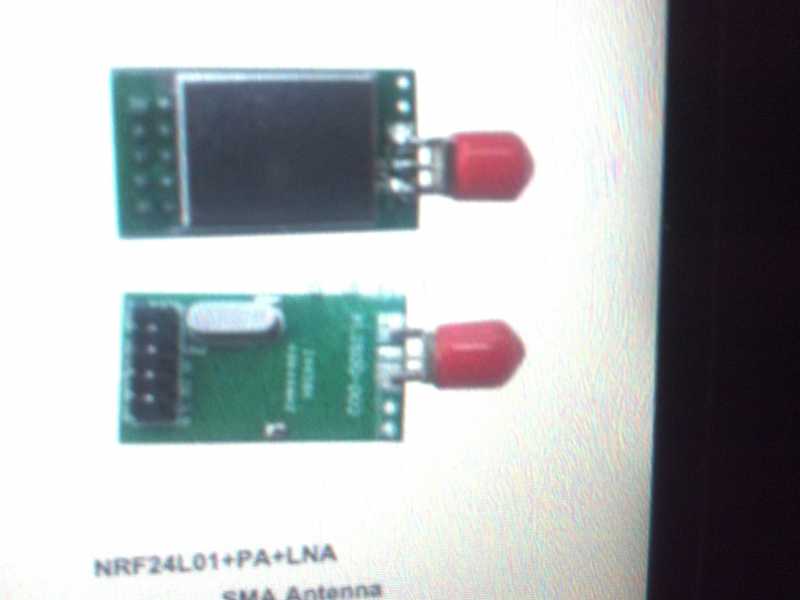

Any chance of getting frsky working? I'm running low on devo receivers and have a bunch of frsky to use...

There are 10 types of people in this world. Those that understand binary and those that don't.

Please Log in or Create an account to join the conversation.

RandMental
Offline

06 Jul 2013 18:08 - 06 Jul 2013 18:11 #12018 by RandMental

Replied by RandMental on topic skyartec compatibility

tx wrote: The low power output is a software issue,
Note this is the power output from the CC2500 which it what gets fed to the power amplifier that pushes it higher. So +1dBm on the CC2500 is I believe approximately +20dBm output from the power amp.

Hi tx,

Thanks for the reminder and the code change required. I tested both 0XFF and 0XFE and the 0XFE did give a lower output compared to the 0XFF as it should. I saw no other funnies on the spectrum.

Most important is that the CC2500/Skyartec module output with 0XFF is about 2dBm down on the XL7105 and CYRF module output at their 150mW settings. I am happy it proves it's a CC2500 power setting in Deviation and not a HW module or antenna problem.

Hex,

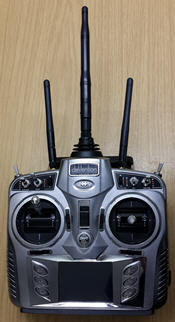

Interestingly your 12S antenna looks like the ones I received with both my 8s Devos. I added two external antennas (like the smaller one on you photo) for the XL7105 and CC2500 modules. By switching the longer and shorter antennas around I do notice a lower output from the smaller antenna, my guess is noit even 2dBm.

Last edit: 06 Jul 2013 18:11 by RandMental.

Please Log in or Create an account to join the conversation.

stein@office-center.no
Offline

11 Jul 2013 17:50 #12191 by stein@office-center.no

Replied by stein@office-center.no on topic skyartec compatibility

HI

Where do I find skyartec_init() ?

Please Log in or Create an account to join the conversation.

RandMental
Offline

11 Jul 2013 18:37 - 11 Jul 2013 18:39 #12192 by RandMental

Replied by RandMental on topic skyartec compatibility

stein@office-center.no wrote: HI

Where do I find skyartec_init() ?

I assume you want to know where to set the power? It is in skyartec_cc2500.c in the protocol directory.

static void skyartec_init()
{
        CC2500_Reset();

        CC2500_WriteReg(CC2500_16_MCSM2, 0x07);
        CC2500_WriteReg(CC2500_17_MCSM1, 0x30);
        CC2500_WriteReg(CC2500_1E_WOREVT1, 0x87);
        CC2500_WriteReg(CC2500_1F_WOREVT0, 0x6b);
        CC2500_WriteReg(CC2500_20_WORCTRL, 0xf8);
        CC2500_WriteReg(CC2500_2A_PTEST, 0x7f);
        CC2500_WriteReg(CC2500_2B_AGCTEST, 0x3f);
        CC2500_WriteReg(CC2500_0B_FSCTRL1, 0x09);
        CC2500_WriteReg(CC2500_0C_FSCTRL0, 0x00);
        CC2500_WriteReg(CC2500_0D_FREQ2, 0x5d);
        CC2500_WriteReg(CC2500_0E_FREQ1, 0x93);
        CC2500_WriteReg(CC2500_0F_FREQ0, 0xb1);
        CC2500_WriteReg(CC2500_10_MDMCFG4, 0x2d);
        CC2500_WriteReg(CC2500_11_MDMCFG3, 0x20);
        CC2500_WriteReg(CC2500_12_MDMCFG2, 0x73);
        CC2500_WriteReg(CC2500_13_MDMCFG1, 0x22);
        CC2500_WriteReg(CC2500_14_MDMCFG0, 0xf8);
        CC2500_WriteReg(CC2500_0A_CHANNR, 0xcd);
        CC2500_WriteReg(CC2500_15_DEVIATN, 0x50);
        CC2500_WriteReg(CC2500_21_FREND1, 0xb6);
        CC2500_WriteReg(CC2500_22_FREND0, 0x10);
        CC2500_WriteReg(CC2500_18_MCSM0, 0x18);
        CC2500_WriteReg(CC2500_19_FOCCFG, 0x1d);
        CC2500_WriteReg(CC2500_1A_BSCFG, 0x1c);
        CC2500_WriteReg(CC2500_1B_AGCCTRL2, 0xc7);
        CC2500_WriteReg(CC2500_1C_AGCCTRL1, 0x00);
        CC2500_WriteReg(CC2500_1D_AGCCTRL0, 0xb2);
        CC2500_WriteReg(CC2500_23_FSCAL3, 0xea);
        CC2500_WriteReg(CC2500_24_FSCAL2, 0x0a);
        CC2500_WriteReg(CC2500_25_FSCAL1, 0x00);
        CC2500_WriteReg(CC2500_26_FSCAL0, 0x11);
        CC2500_WriteReg(CC2500_29_FSTEST, 0x59);
        CC2500_WriteReg(CC2500_2C_TEST2, 0x88);
        CC2500_WriteReg(CC2500_2D_TEST1, 0x31);
        CC2500_WriteReg(CC2500_2E_TEST0, 0x0b);
        CC2500_WriteReg(CC2500_00_IOCFG2, 0x0b);
        CC2500_WriteReg(CC2500_02_IOCFG0, 0x06);
        CC2500_WriteReg(CC2500_07_PKTCTRL1, 0x05);
        CC2500_WriteReg(CC2500_08_PKTCTRL0, 0x05);
	CC2500_WriteReg(CC2500_3E_PATABLE, 0xfe);  //raise default power
        CC2500_WriteReg(CC2500_09_ADDR, 0x43);
        CC2500_WriteReg(CC2500_06_PKTLEN, 0xff);
        CC2500_WriteReg(CC2500_04_SYNC1, 0x13);
        CC2500_WriteReg(CC2500_05_SYNC0, 0x18);
        CC2500_Strobe(CC2500_SFTX);
        CC2500_Strobe(CC2500_SFRX);
        CC2500_Strobe(CC2500_SXOFF);
        CC2500_Strobe(CC2500_SIDLE);
}

Last edit: 11 Jul 2013 18:39 by RandMental.

Please Log in or Create an account to join the conversation.

stein@office-center.no
Offline

11 Jul 2013 19:17 #12193 by stein@office-center.no

Replied by stein@office-center.no on topic skyartec compatibility

Hmmm..

Feel a bit stupid now - having worked with computers since 1985.

I open the Devo disk by pressing ENT when powering on the Devo10.

I then get the filesystem.

There is 5 directories.

language
media
mdelico
models
template

An two files
errors
tx

So getting to the protocol directory, I can not figure out.

I guess You have to feed me by teaspoon

Please Log in or Create an account to join the conversation.

stein@office-center.no
Offline

11 Jul 2013 19:40 #12194 by stein@office-center.no

Replied by stein@office-center.no on topic skyartec compatibility

I downloaded the *fs'devo10* file again and there is no protocol directory there.

It also seems that there is a difference between Devo7 an Devo10 about this in the Firmware manual... page 7

\protocol\*.mod (Devo7e only):
These contain the protocol files. They must
be re-installed with each firmware upgrade

I think this means that the protocol directory only applies to Devo7 and not Devo10...

??

Please Log in or Create an account to join the conversation.

FDR
Offline

11 Jul 2013 19:51 #12195 by FDR

Replied by FDR on topic skyartec compatibility

He was talking about the protocol directory in the source code:
bitbucket.org/PhracturedBlue/deviation/s..._cc2500.c?at=default

Please Log in or Create an account to join the conversation.

stein@office-center.no
Offline

11 Jul 2013 20:55 #12198 by stein@office-center.no

Replied by stein@office-center.no on topic skyartec compatibility

OK..

I guess this is the source code and programming I gave up years ago as soon as I was done studying...

I'll just wait for the power issue to be solved in a future release I guess.

Please Log in or Create an account to join the conversation.

RandMental
Offline

12 Jul 2013 17:35 #12220 by RandMental

Replied by RandMental on topic skyartec compatibility

Hi Stein

I can build you a Devo10.dfu file to load with higher skyartec power output. PM me your email address.

Cheers

Please Log in or Create an account to join the conversation.

stein@office-center.no
Offline

12 Jul 2013 19:59 #12221 by stein@office-center.no

Replied by stein@office-center.no on topic skyartec compatibility

Hi..

Thank You very much. I'll do so..

Cheers

Please Log in or Create an account to join the conversation.

stein@office-center.no
Offline

26 Jul 2013 11:59 #12524 by stein@office-center.no

Replied by stein@office-center.no on topic skyartec compatibility

HI

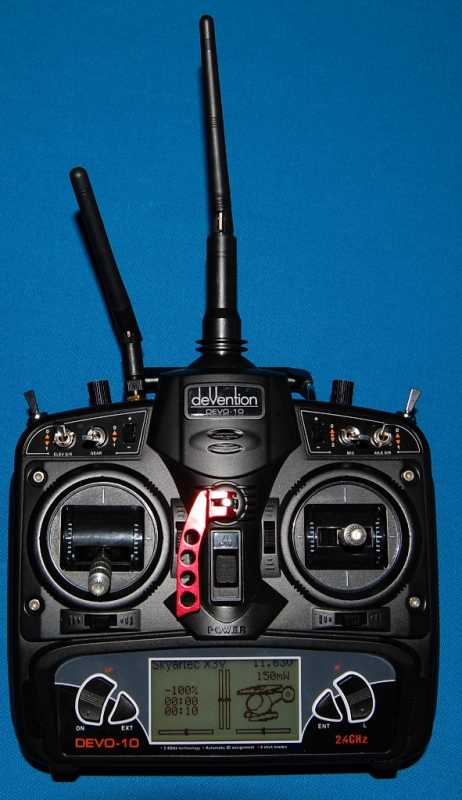

Got my Devo-10 back from soldering in the antenna and antennamount. Cant wait to try it!!

Cheers
Stein

Please Log in or Create an account to join the conversation.

RandMental
Offline

26 Jul 2013 13:47 #12525 by RandMental

Replied by RandMental on topic skyartec compatibility

Nice, looks great!

You will now definitely see an improvement in range

Please Log in or Create an account to join the conversation.

stein@office-center.no
Offline

29 Jul 2013 23:27 #12607 by stein@office-center.no

Replied by stein@office-center.no on topic skyartec compatibility

Hi. Finally got to test my Devo-10 with The Skyartec module and antenna. Used the last nightly build and at 140 meters i ran out of free space and the Skyartec X3V as a 250 size heli at that distance is not visible for my eyes anyway.

So quite happy!

Thanks!
Stein

Please Log in or Create an account to join the conversation.

bigde
Topic Author
Offline

31 Jul 2013 00:00 #12630 by bigde

Replied by bigde on topic skyartec compatibility

Hey you guys have a config file for wasp x3v. I can't figure out my rudder servo is running really slow and I have 2 wasp x3v and they both do the same thing. Something with gyro sensitivity is set with different channel I don't now how to set this up. Please help.

Please Log in or Create an account to join the conversation.

stein@office-center.no
Offline

31 Jul 2013 09:30 #12637 by stein@office-center.no

Replied by stein@office-center.no on topic skyartec compatibility

HI

I'm not quite satisfied with my model file for X3V yet but with this config i got one of my X3V's to fly fairly decent - sport mode that is - no 3D.

I use a Devo-10.

Kill Switch is Rudd-DR
ELEV D/R switch i have two sensitivities for Elevator
Gear switch gives me two gyro settings
Mix switch gives med three pitch curve settings
Aile D/R switch gives med two sensitivities for Aileron
FMOD switch gives med three different throttle setup.

I experienced with this model file that all switches in Zero exept for Mix=1 and FMOD=1 gave me the best flying.

But I also must say that a tiny different setup of linkages on the heli will make the heli act different. I try to set up my two X3V the same - but one flew and the other did not. Found that the one not flying had a curved/bent/damageded main blade. Going to change the blades on that one to see if that was the whole thing.

What i do for setup is first to get the swash plate level at powerconnect. I also watch for the servo arms not to go too far at each side. Next i use a simple pitch gauge to the the blades in zero pitch at mid throttle with my setup with the MIX switch at two (third position) which has zero pitch at zero throttle.

Still i had to adjust offset to get enough pitch. But for sure - get the swash level and the blades act with same pitch is a good starting point. Try Your X3V at work bench - just with power connected - see if they act the same.

Pitch curve and gyro sensitivity then is important.

So - this model file is not to be an example - but more like a model file that works for me at the moment - but I plan to do modifications as I learn more.

I'm using the last nightly build by the way.

File Attachment:

File Name: he83589a.ini
File Size:4 KB

Stein

Please Log in or Create an account to join the conversation.

bigde
Topic Author
Offline

31 Jul 2013 15:57 #12649 by bigde

Replied by bigde on topic skyartec compatibility

Thanks Stein it works good now my rudder is back to speed. This file was for a devo8 I just did few change for devo12 and it running good thaks I really appreciate.

Please Log in or Create an account to join the conversation.

bigde
Topic Author
Offline

01 Aug 2013 04:34 - 01 Aug 2013 04:41 #12678 by bigde

Replied by bigde on topic skyartec compatibility

Hello guys... I've tried wasp x3v today, just a hovering test and the signal cut off and it fell on the ground so I tried again and the second time I lost signal again. This is happening at about 2 meter away. This time it fell side way,

the esc cut off from the load of the motor. I've did a range test and I get about 50 meters at Max. I'm using a cc2500 module with power amp, maybe it's not plug right or its software problem. This is my 3rd module I've tested ( the others came from skyartec TX and it didn't workout for me ) I have a devo12s and I use the recent nightly build.
Any help would be appriciated, I'm afraid to try it again, I just don't know what to expect.

I wish deviation would come out with a all in one module that works,... I'd buy that immediately.

Last edit: 01 Aug 2013 04:41 by bigde.

Please Log in or Create an account to join the conversation.

blackmoon
Offline

01 Aug 2013 07:29 - 01 Aug 2013 07:29 #12685 by blackmoon

Replied by blackmoon on topic skyartec compatibility

It could be a number of things :

- bad motor

- bad esc

- bad receiver
.
.
.
- bad Devo TX, or module

- issue with deviation

To rule out it isn't your helicopter that is the culprit, I would test it with the TX it came in. nasa701 I think.

Then if all is ok, you can investigate your devo12 and deviation code.

Last edit: 01 Aug 2013 07:29 by blackmoon.

Please Log in or Create an account to join the conversation.

stein@office-center.no
Offline

01 Aug 2013 16:27 #12699 by stein@office-center.no

Replied by stein@office-center.no on topic skyartec compatibility

Skyartec compability...

I've done some writing here already but about the problems bidge has - they do not apply to my setup - fortunately.

1) I have the X3V and Nano Cp - 4 helis in total
2) I have the Devo-10
3) I use the latest nightly build of deviation software in this site
4) In the Devo-10 I've soldered in the original skyartec modul - bought it directly from Skyartec: www.skyartec.com/ProductShow.asp?ArticleID=1977
5) Since soldering inside the radio and onto the module is neccessary I got a friend of mine which is a professional - but not into RC. He followed the manual also found at this site.
6) First I used it without antenna and had a range about 50m. Soldered a antenna to the skyartec module - and now have more than 150 meters range.

I have flown this setup now for aprox 30 batteries - that is aprox 300 minutes. Not a single fault due to software - just faulty heli setup and my own flying errors. I have flown 10 batteries in a row without any crash and not any surprises from heli/radio/software - just a big smile on my face.

If this result comes from using the original Skyartec module - I do not know - but please check into it before altering the code on this

In addition to Skyartec I also has a DSM receiver connected to my simulator - works perfect. I do not dare to think about how many hours. Distance is no problem flying simulator of course...

Stein.

Please Log in or Create an account to join the conversation.

bigde
Topic Author
Offline

01 Aug 2013 17:13 - 01 Aug 2013 17:31 #12700 by bigde

Replied by bigde on topic skyartec compatibility

Hello Stein, It was running good with the original TX NASA 701 no cut off and the range was good. I just didn't like that radio and I like hacking and modify stuff its more fun but these skyartec module are a pain in the ass. Now I tried to salvage the module from the 701 TX but no success. So I bought one on eBay . Maybe its not hooked right, maybe the info should be more clear for me. It might need more power to the module. I know I had to power up 3 pins with 3.3v... but everything is not quite clear on how to hook it up, for me anyway. I think I'm gona order more modules.

(pict of the cc2500 module installed in my devo12s).

Last edit: 01 Aug 2013 17:31 by bigde.
